OmniHub CMP201– User Manual
Page 18 of 103
3.1 OmniHub CMP201 Web Interface Overview
3.1.1 Connecting to the Management Port
CMP201 has an embedded gigabit switch inside the chassis. The four network ports are
respectively used for managing and data reception/streaming over IP network. From left to right,
port 1 and port 2 are used for management purposes and, port 3 and port 4 are used for IP
reception/streaming.
If external IP switch needs to install between CMP201 and other headend devices, this switch
should support IGMP V2 and IGMP snooping function.
3.1.2 Logging into the CMP201 Web Interface
To open the CMP201 web interface use one of the following supported browsers and navigate
to the unit’s IP address:
• Firefox
• Google Chrome
Factory network settings of the Management Port:
• IP address: 192.168.1.10
• Subnet Mask: 255.255.255.0
• Gateway: 192.168.1.254

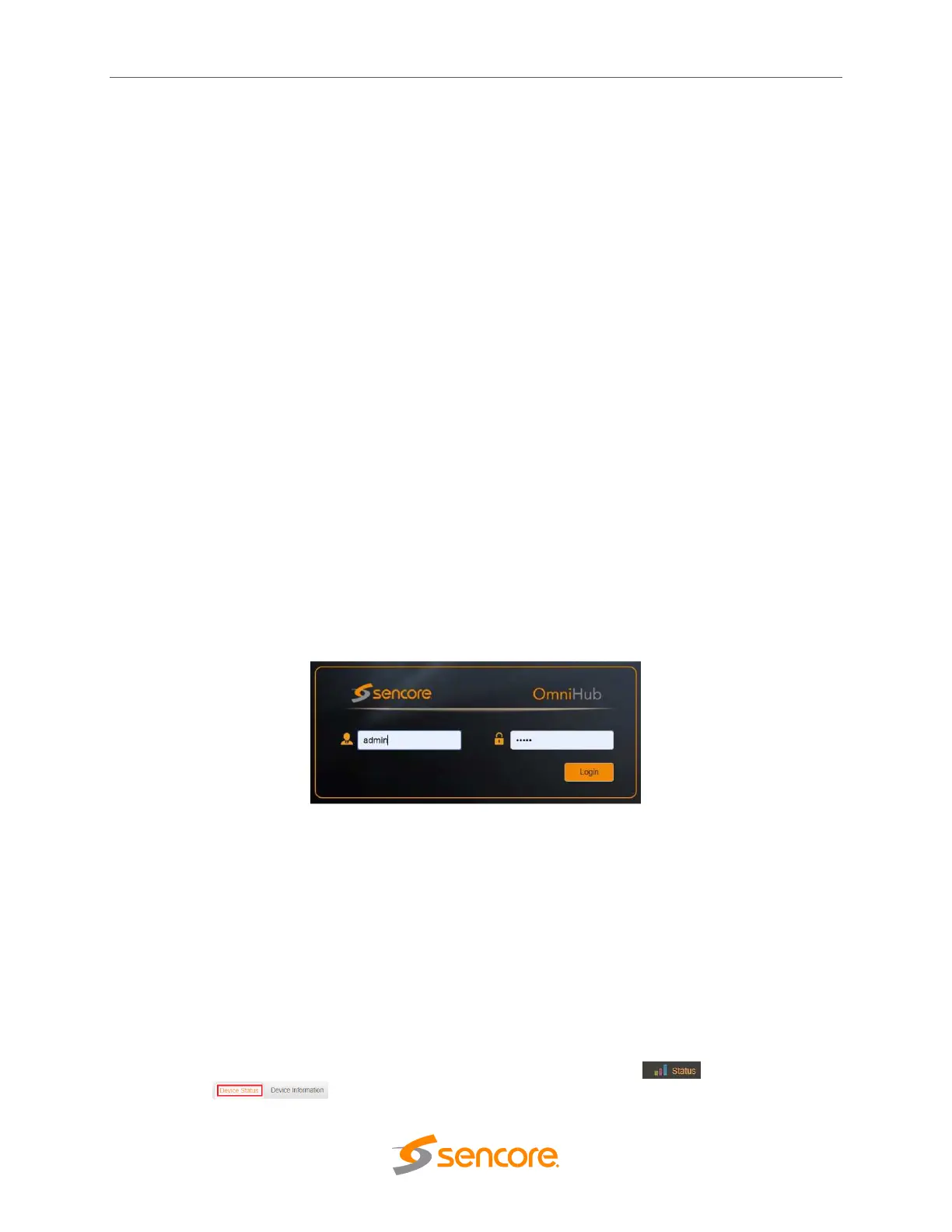

The user will need to login to the web interface. The default username and password are
admin/admin. Press the login button in order to login to the web interface.
3.2 Status Overview
After a successful login, a welcome screen is displayed. The welcome screen allows you to
navigate to:
1. Module List shows the module(s) installed inside the chassis
2. Settings buttons: status, system settings, IP inputs, IP outputs, admin
3. Device host operation status
At any time, the user can return to the welcome screen by clicking the Status button and then
Device Status button. Below two pictures displaying different Status View for Single and
Dual PSU versions.
