OmniHub CMP201– User Manual
Page 34 of 103

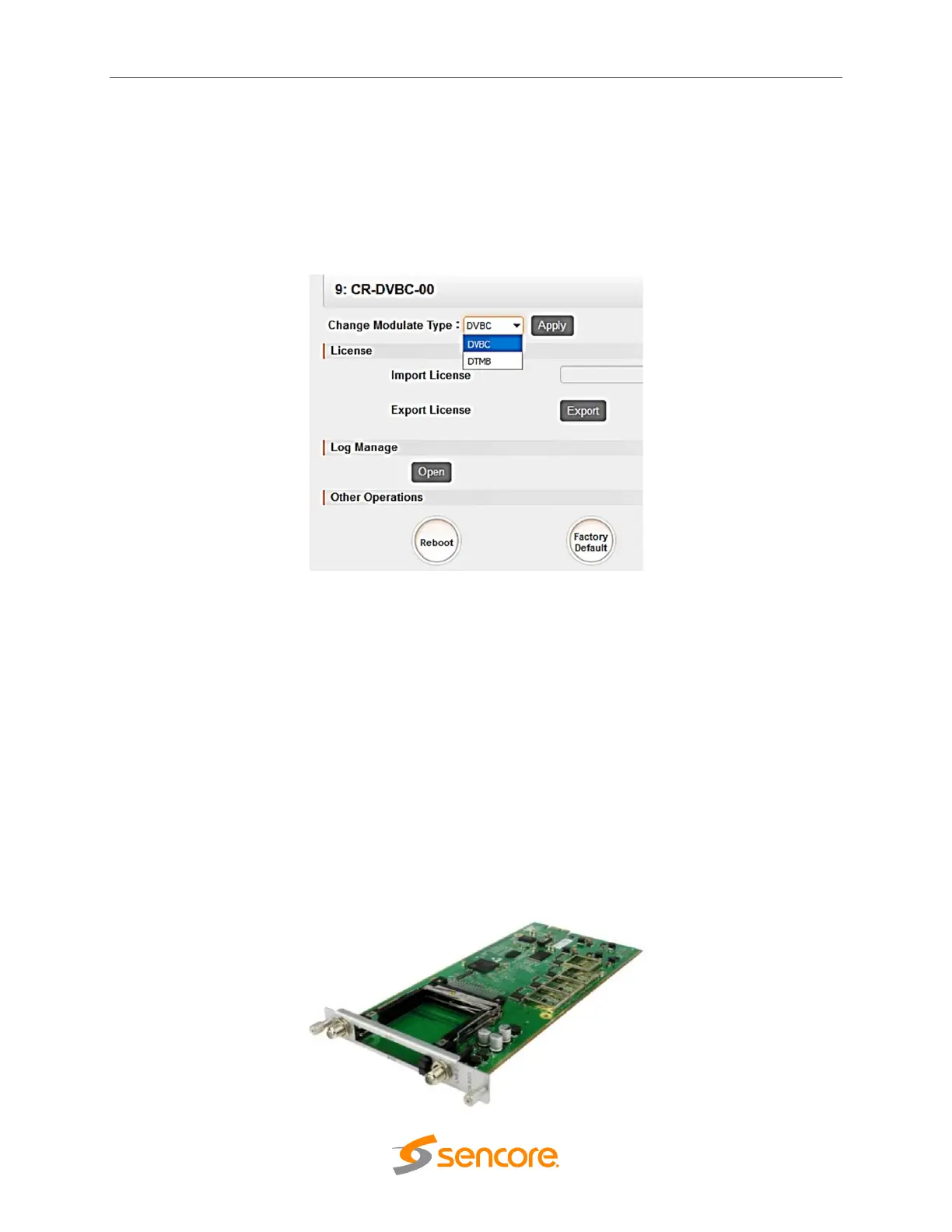

3.3.1.5 Module System Operation
In System Operation page you can change into DVBC Mode or DTMB Mode, reboot the module,
Factory Reset, and Log Export. System Tab also allows to perform the following tasks:
Import / Export License
Log Manage
Reboot
Factory Default the unit
3.3.2 CR2-DVBC-01
CR2-DVBC-01 is a 4-channel DVBC Annex B/ISDBT receiving and descrambling module with 1
RF female connector and 2 CI slots. It can receive 4 RF channels signal simultaneously and
support 2 CAM cards descrambling. Configuration of the module is very much similar with CR2-
DVBC-00, please refer to this module for the configuration procedures at page 32 to 36.
3.3.3 CR2-DVBS2CI-00
CR2-DVB S2 CI-00 is a 4-channel DVB-S/S2 receiving and descrambling module with 2 RF
connectors and 2 CI slots, each RF connector can connect with 2 transponders. Status and CI
pages refer to CR2-DVBC-00 module section at page 32 to 34.
