OmniHub CMP201– User Manual
Page 72 of 103
3.3.14 CM2-QAMA-R01/R01A
CM2-QAMA-R01 and CM2-QAMA-R01A are 4 channel and 8 channel modulators respectively.
The module shares the same hardware but different software. For the Status, Settings, Service
Configuration and System Operation. Please refer to previous module CM2-QAMA-00/R00

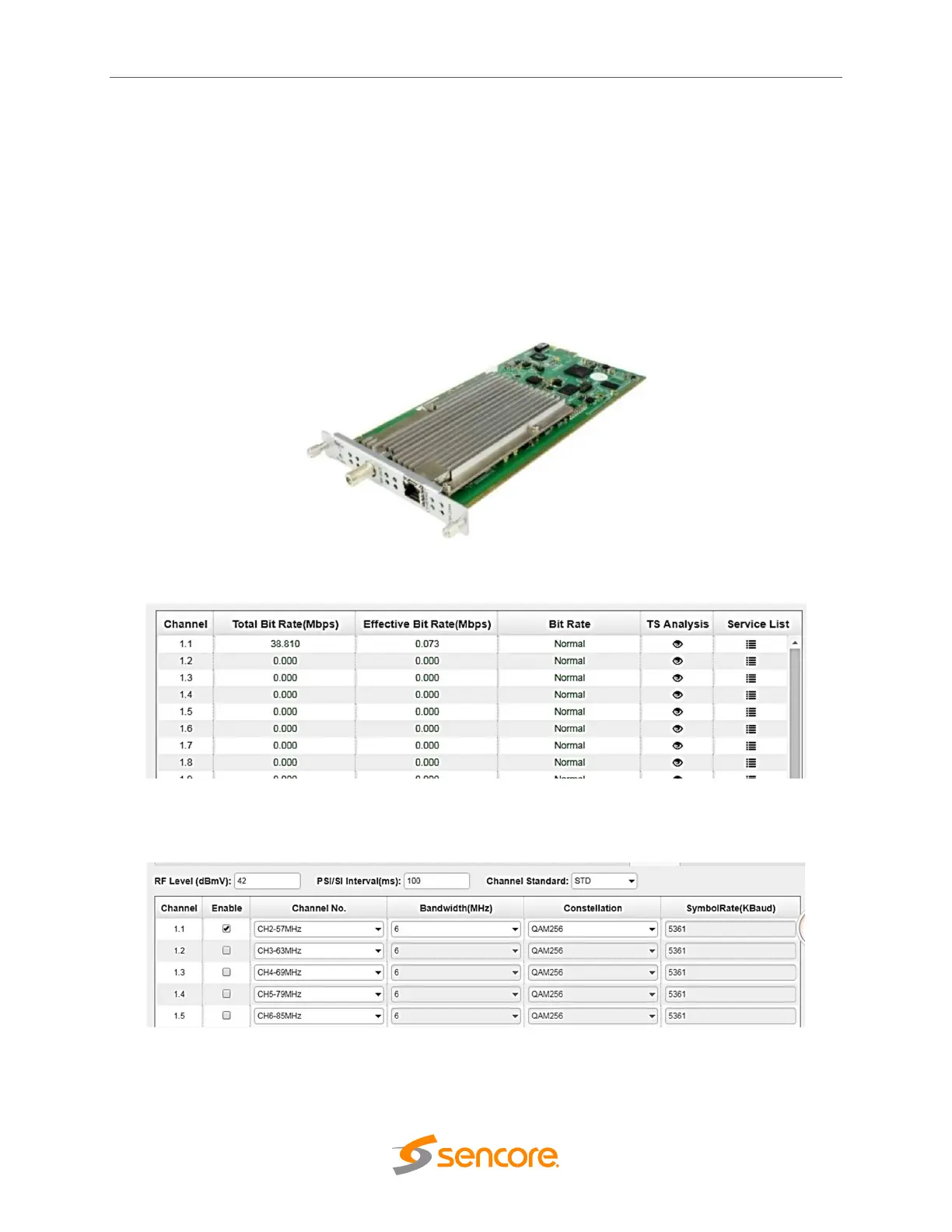

3.3.15 CM2-QAMB-00/R00
CM2-QAMB-00 / R00 module supports up to 16 non-adjacent frequencies modulating with 1 RF
female connector for output.
3.3.15.1 Module Status
3.3.15.2 Module Settings
Click the Apply button in the right side to make the change take effect.
