OmniHub CMP201– User Manual
Page 73 of 103
Name
Range
Name
Range
Bandwidth (MHz)
6
Channel Standard
US cable/STD/IRC/
HRC
Symbol Rate
(KBaud)
5056.941 (QAM 64)
5360.537 (QAM 256)
RF level
15~48 (dBmV)
PSI/SI Interval
(ms)
50~10000
Constellation
QAM 64/256
Channel No.
Up to Channel Standard
3.3.15.3 Service Configuration
Service Configuration for QAMB are very simply compared to QAMA. Here, you just have to edit
the Original network ID and TSID to the correct label you want to. You can also edit the Service
parameter like Service ID, Name, Provider, PID, etc.,
System operation of CM2-QAMB are same with other modules.
3.3.16 CM2-QAMB-R01/R01A
CM2-QAMB-R01 is a 4 channel QAM B Modulator module while CM2-QAMB-R01A is an 8
channel QAM B modulator. The Status, Setting Service Configuration and System Operation for
these two modules are same with the CM2-QAM-00/R00.

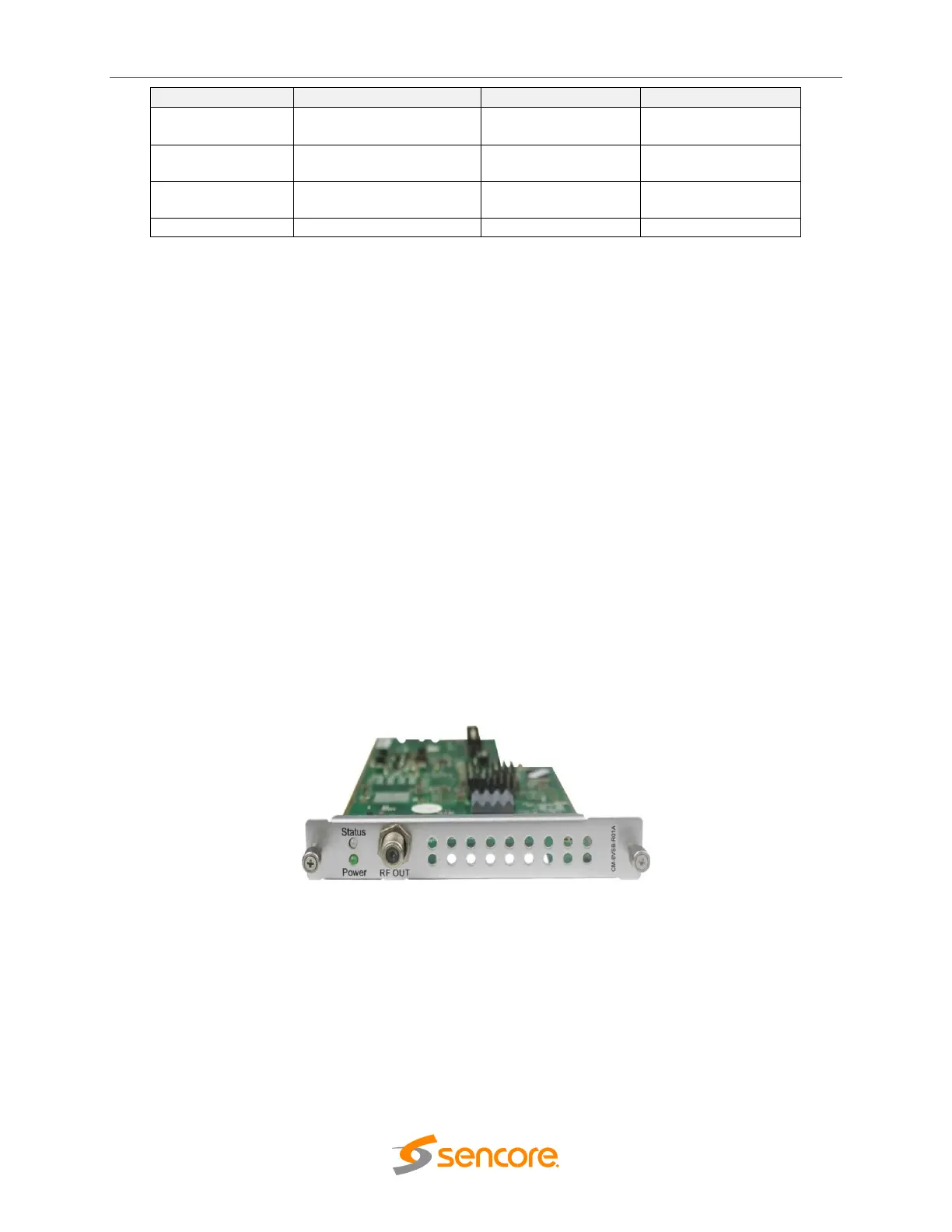

3.3.17 CM2-8VSB-R01/R01A
CM2-8VSB-R01A module supports up to 4/8 adjacent frequencies modulating with 1 RF
connector for output.
Please see QAM configuration at page 69 for reference
