OmniHub CMP201– User Manual
Page 11 of 103

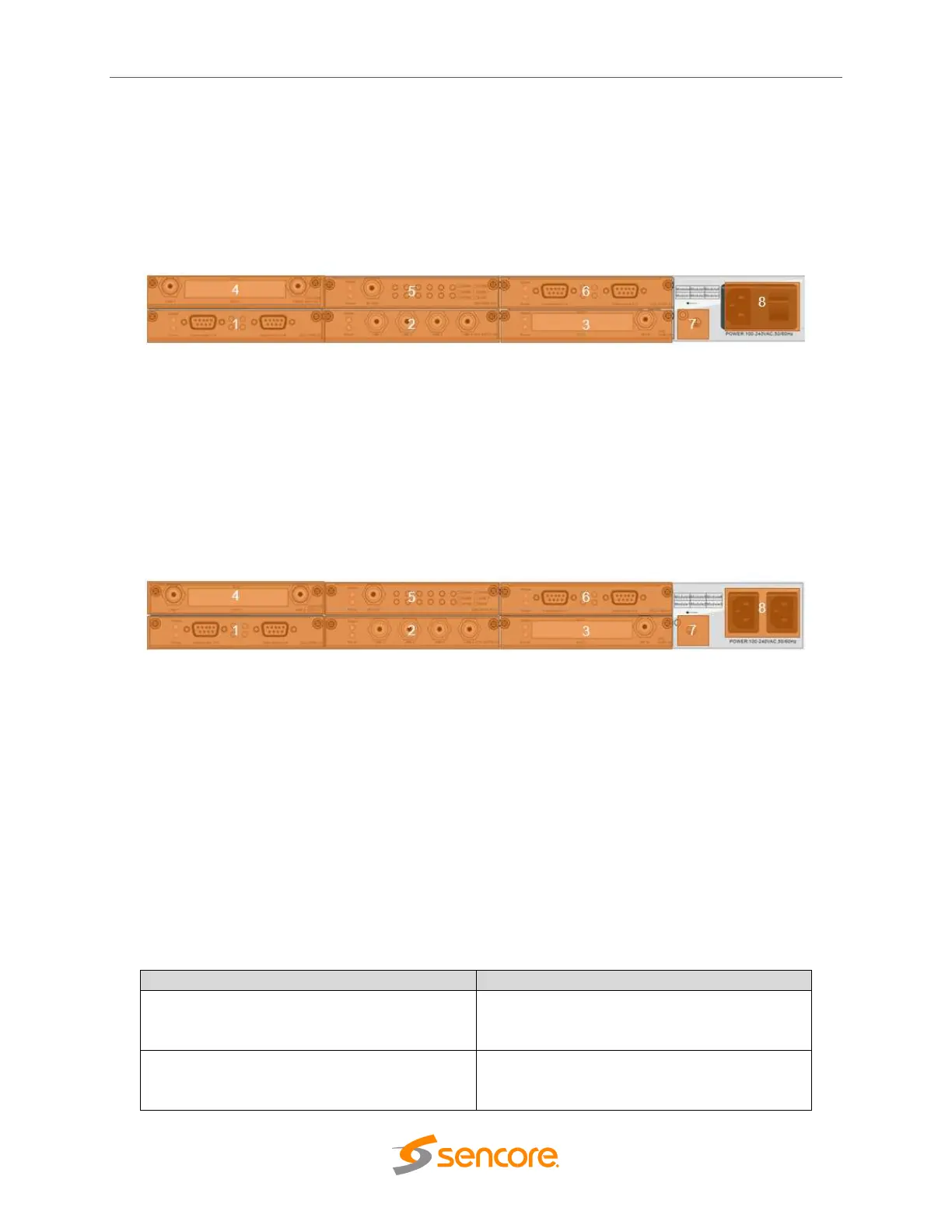

1.3 Rear Panel Overview
The OmniHub CMP201 has multiple options for the backplane configuration. Device can be
ordered with Single Power Supply (order number - CMP201) or Dual Power Supply (order number
- CMP201D).
Rear panel of the device with single power supply
1. Slot no.1 for the option module
2. Slot no.2 for the option module
3. Slot no.3 for the option module
4. Slot no.4 for the option module
5. Slot no.5 for the option module
6. Slot no.6 for the option module
7. Ground
8. Single Power Supply
Rear panel of the device with dual power supply
1. Slot no.1 for the option module
2. Slot no.2 for the option module
3. Slot no.3 for the option module
4. Slot no.4 for the option module
5. Slot no.5 for the option module
6. Slot no.6 for the option module
7. Ground
8. Dual Power Supply
1.4 Option Module Overview
This describe the CMP201 platform and all available modules that can expand the functionality
of the CMP201 platform.
Baseboard CMP201-SEN 1RU chassis, Single PSU, 4xGbE ports,
14 LEDs and six hot swappable slots
Baseboard CMP201D-SEN 1RU chassis, Dual PSU, 4xGbE ports,14
LEDs and six hot swappable slots
