OmniHub CMP201– User Manual
Page 36 of 103
The parameters for each port in Module Settings are also same with the CR2-DVBS2CI and
Service Configuration is same with CR2-DVBC-00. Please refer to page 34 to 36 for the
configuration manual.
3.3.5 CR2-8VSB-00

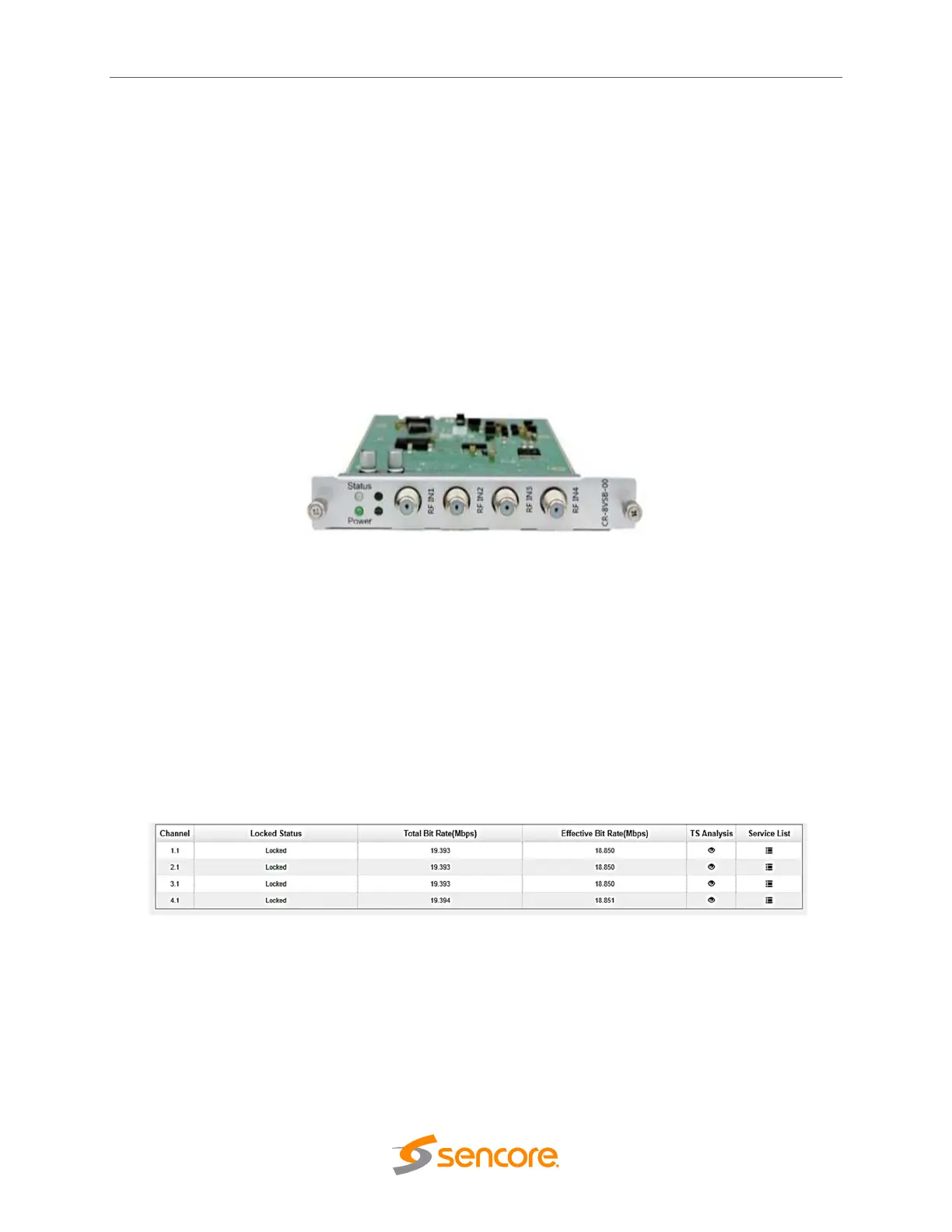

CR2-8VSB-00 is a 4-channel 8VSB receiving module with 4 RF connectors. Picture below
shows front plate of 8VSB module.
Module specification:
- 4 RF female connectors
- Frequency range: 50 – 860MHz
- Bandwidth: 6MHz
- Modulation: 8VSB
- Signal Level: -80dBm ~ -20dBm
3.3.5.1 Module Status
To display the status of the 8VSB receiver, select the module of interest from the list of modules
on the left. Then click on the Status button visible in the top bar of the 8VSB navigation buttons.
Status tab shows Locked Status, Total Bit Rate, Effect Bit Rate, TS Analysis and Service List for
each 8VSB input stream.
3.3.5.2 Module Settings
To make configuration changes in the context of the channel plan and the receiving frequency of
the specific RF input, select the appropriate receiving module and then click on the Settings
tab. The channel plan and frequency of a specific receiver are selected using drop-down lists.
