APPENDIX B - A Monroe OneNetSE Configuration and Testing
For development and testing purposes, the Monroe OneNetSE will be used to supply the
SCTE18 messages and the EAS substitution audio and video. The Monroe box will
need to be configured in a very specific way in order to work with the proposed CMP201
EAS features.
External Configuration
1. The first step is to connect an Ethernet cable to the unit and supply power. Turn on the
unit using the switch on the back. The unit is configured for DHCP on the management
port. If a static IP needs to be assigned, this will need to be done according to the
Monroe manual.
2. Connect the CVBS video and analog-unbalanced audio to an encoder module. These
outputs will be where the video and audio that needs to be used for substitution will
come out.

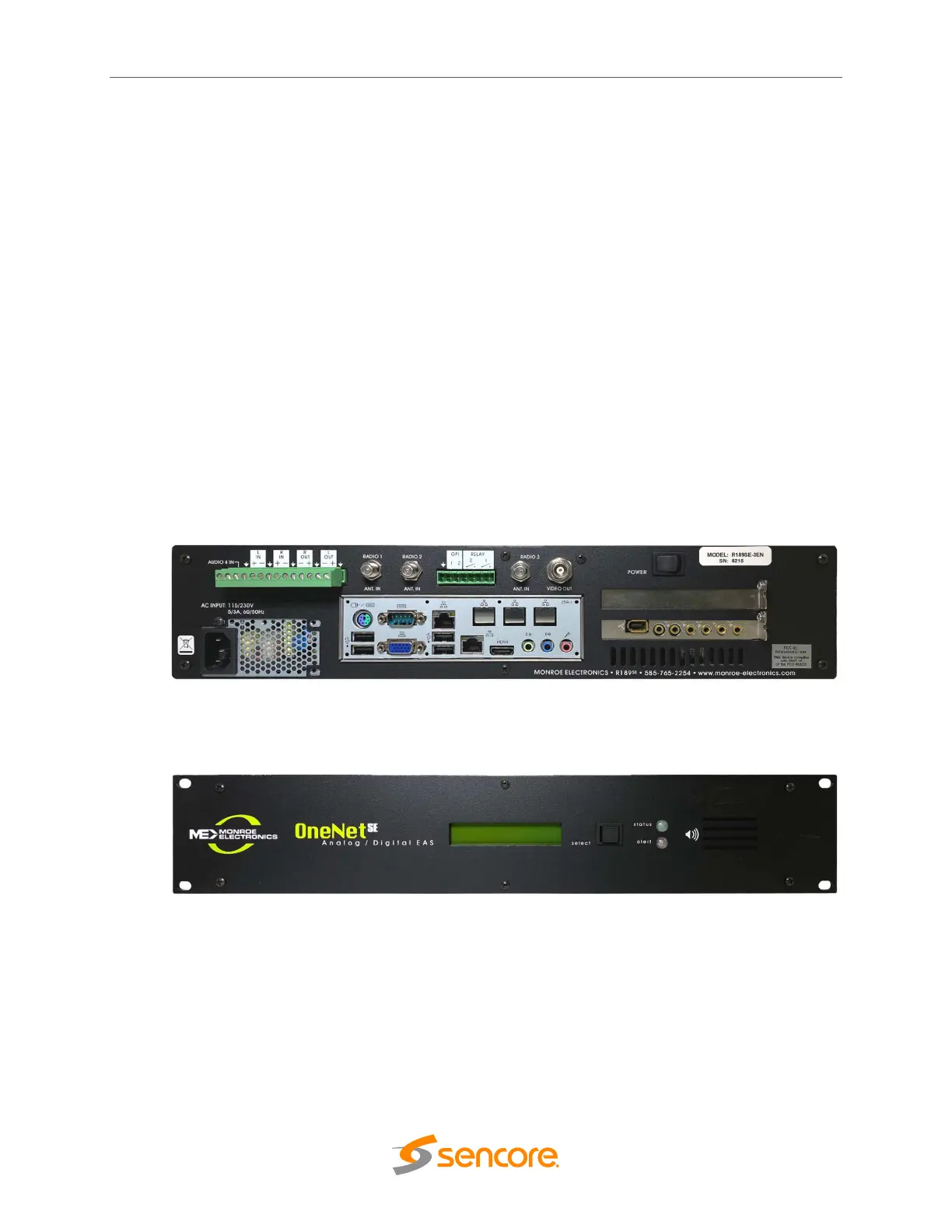

Chassis Rear View: Monroe R189SE
3. Once the unit boots, the front panel display will show the DHCP IP address of the
Monroe box. Use this IP address to access the unit using a web browser.
Front Panel Monroe R189SE
