3.3.17.1 Settings
Click the Apply button in the right side to make the change take effect.
Name
Range
Name
Range
RF level (dBmV)
28~48
PSI/SI Interval
(ms)
50~10000
Channel Standard
OFF-AIR, STD, IRC,
HRC
Channel
-
Frequency
CH2 - 57MHz ~
CH69 – 803MHz
3.3.17.2 Service Configuration

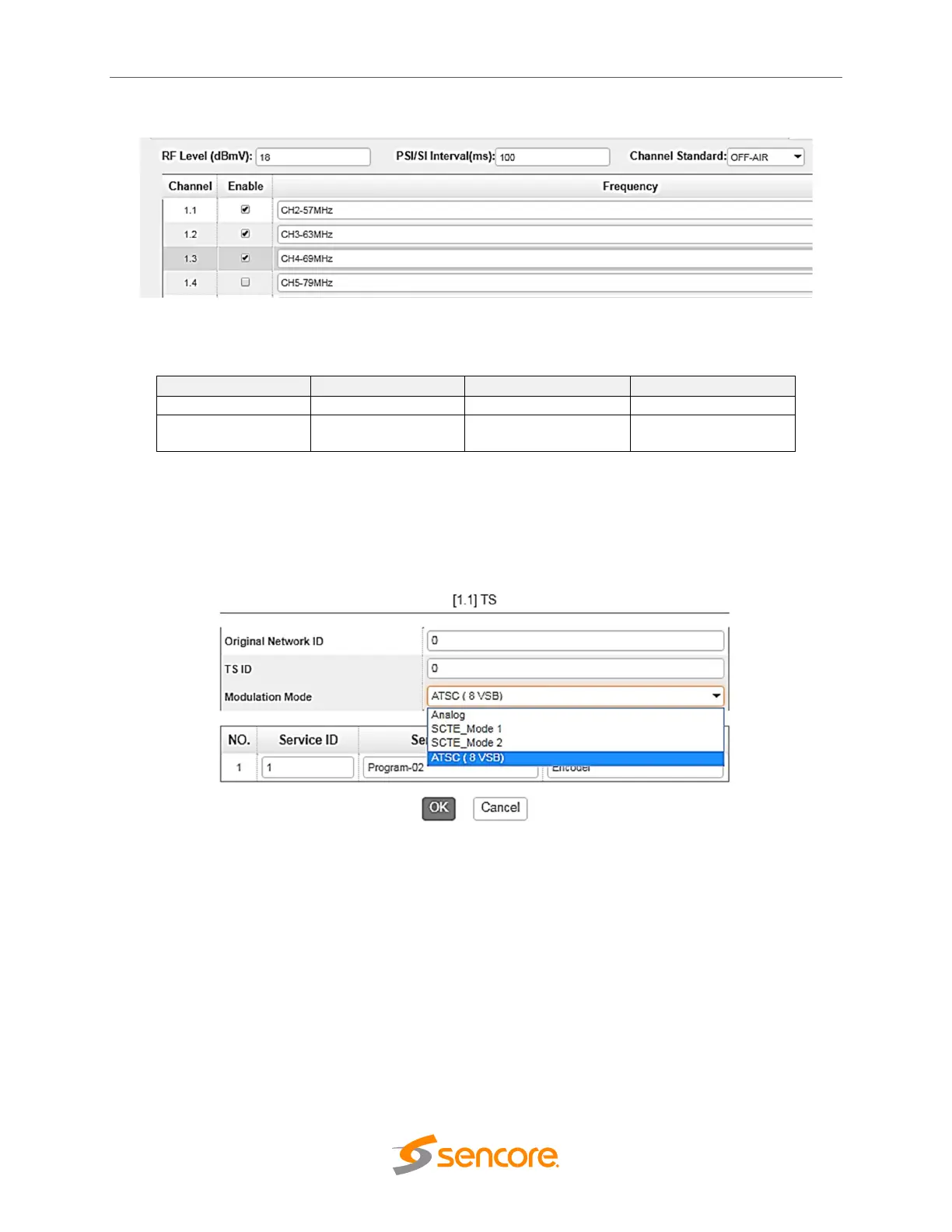

TS setting: Please refer to IP output service configuration. Select the modulation mode: Analog,
SCTE_Mode 1, SCTE_Mode 2, or ATSC (8VSB)
3.3.18 CM2-OFDM-R01/R01A
CM2-OFDM-R01 / R01A module supports up to 4/8 adjacent frequencies modulating with 1 RF
female connector for output. The status for the CM2-OFDM are like another modulator module.
It will show lock status on each channel when signal is stable.
