OmniHub CMP201– User Manual
Page 49 of 103
3.3.7.5 Service Configuration and System Operation
Service Configuration and System Operation please refer to CR2-DVBC-00 module at page 34
to 35.
3.3.7.6 EAS Settings
Settings for the EAS feature need to be made on the encoder module so that when the EAS
source is triggered, the Audio and Video from the encoder will be replace by the Audio and Video
from AES module.
EAS will ask you the Source Multicast Address, Command port and Data port. This information
can be seen in the EAS page

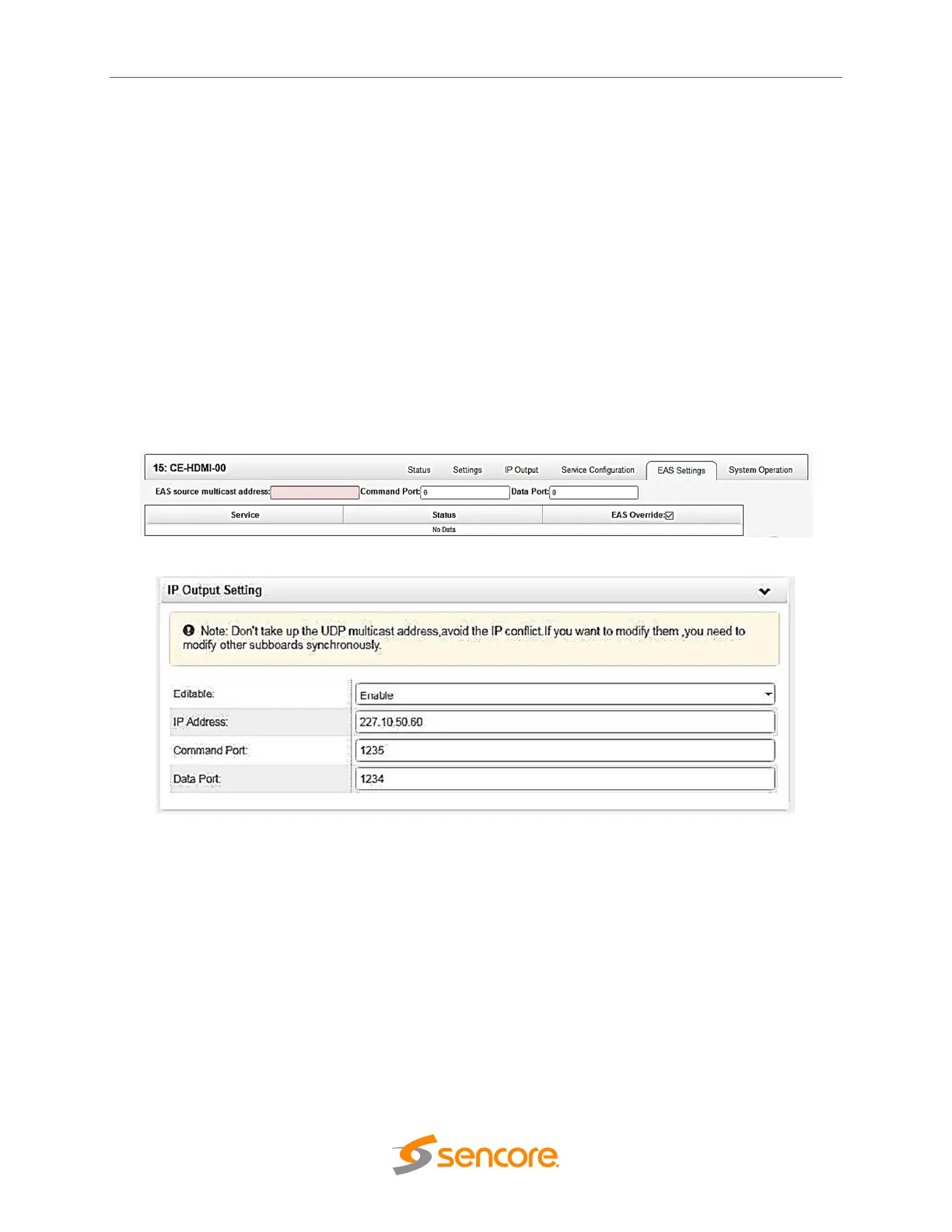

HDMI encoder EAS setting
EAS module settings
