OmniHub CMP201– User Manual
Page 102 of 103
Audio Volume Leveling -20dB~20dB
Function Module Specification

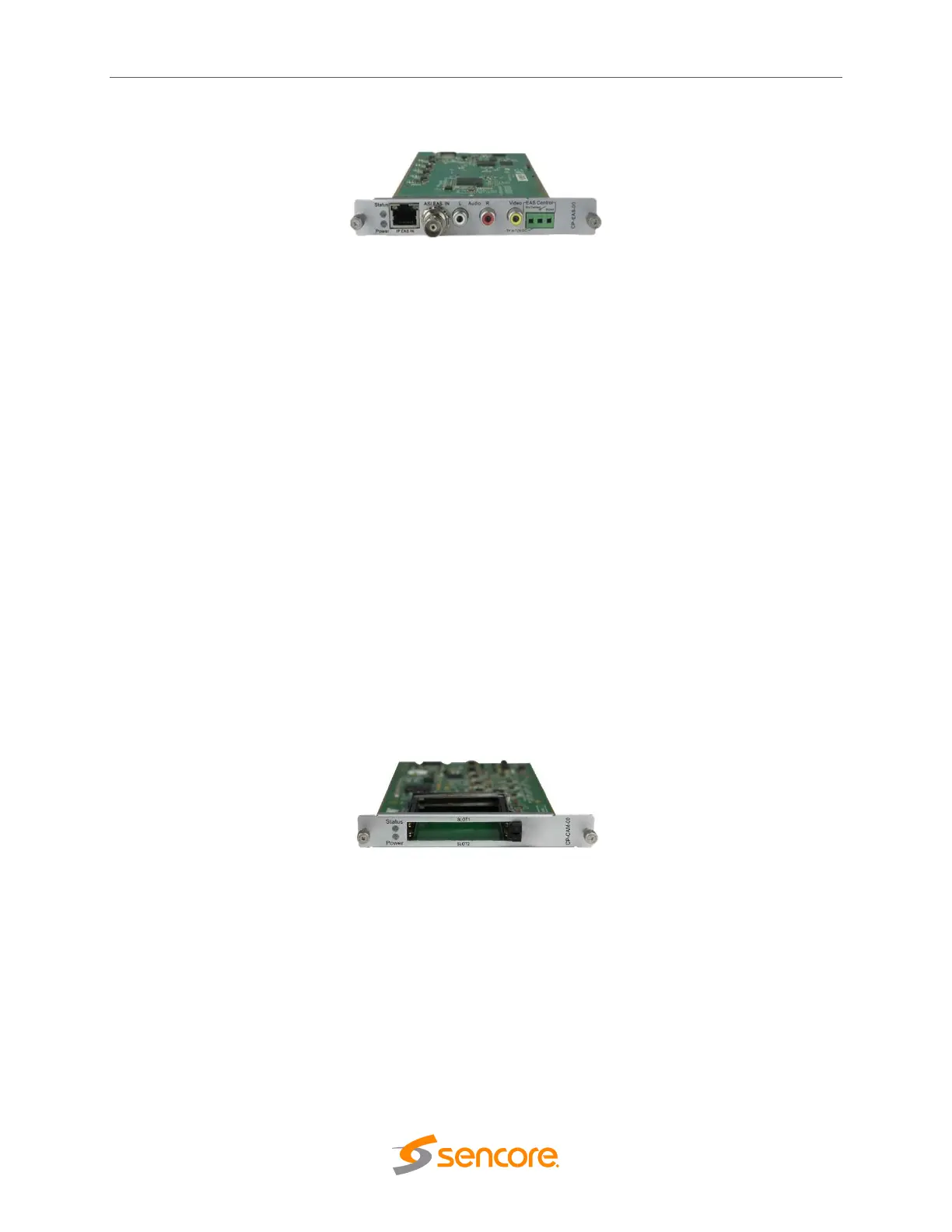

EAS Processing Module
Input Digital EAS input (SCTE-18) via 1*RJ45 port
Analogue EAS input via 3pin contact closure
CVBS input via 1*RCA connector
Audio L/R input via 2*RCA connector
TS input via 1*BNC connector
Video H.264 SD: MP/HP@L3.0
MPEG-2 SD: MP @ML (by default)
Resolution SD: 480i59.94fps
ASI 500Kbps to 100Mbps
Contact Closure 3PIN Connector with dry Contact or 5~12V
DC input for EAS trigger
RJ45 10/100M Ethernet for SCTED-18 digital EAS
input
Bitrate Control CBR
Bitrate 500~8,000Kbps
GOP Structure IBBP, IPPP, IBP
GOP Size 6~63
Audio MPEG-1 Layer II, AAC-LC/HE, AC3
Audio Mode Stereo (2.0, including downmix)
Sampling Rate 48KHz
CI Scrambler/Descrambler
Standard EN 50221
Interface 2 x PCMCIA CI Slots
CAM Scrambling Support Xcrypt CAS
CAM Descrambling Supports mainstream CAS
Descrambled channel quantity depends on
CAM capability
2 CAMs could be different
