OmniHub CMP201– User Manual
Page 41 of 103

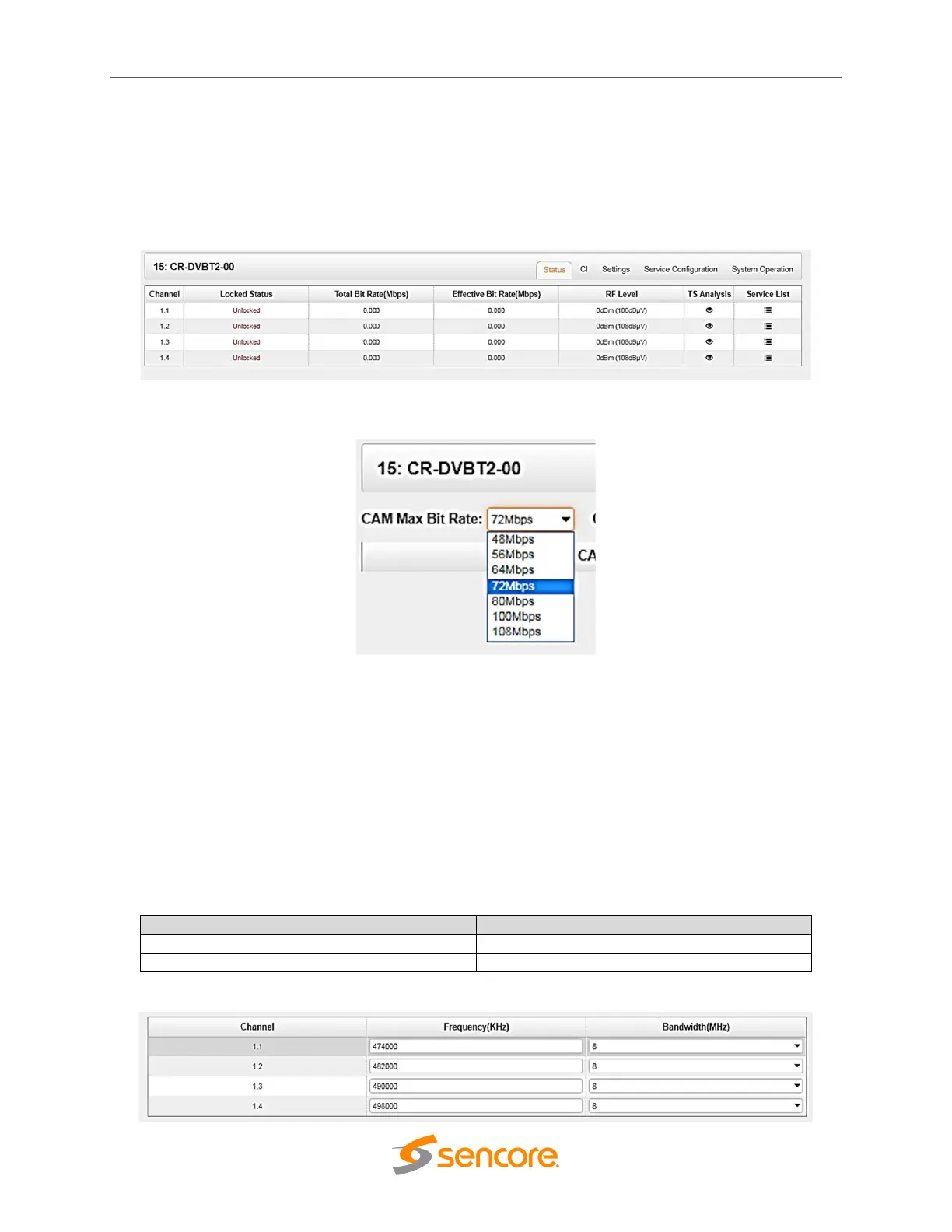

3.3.6.1 Module Status
CR2-DVBT2CI-00 status will show if each port has signal by showing GREEN lock status on each
corresponding channel. The page also shows the total bitrate (Mbps) and Effective bitrate on each
port. For more details on the received signal. You can check the TS analysis and Service List with
the same features as other status of CMP modules. For TS Analysis and Service List Reference,
you can check the CR2-DVBC-00 Status at page 32 to 36.
CAM Max Bit Rate is from 48Mbps to 108Mbps which you can choose in pull-down list.
3.3.6.2 Module Settings
To input the parameters of the source you want to receive in CR2-DVBT2-00. Click the Settings
and input the Frequency and Bandwidth. The tables below show the range of Frequency and
Bandwidth for the settings parameters.
Frequency (KHz) 48000~862000
Bandwidth (MHz) 6, 7, 8
