OmniHub CMP201– User Manual
Page 56 of 103
Details
AC3
MPEG1_Layer2
MPEG2_AAC
MPEG4_AAC
HDMI
Analog
None
0~8
32~8190
128~384 (AC3)
64~384(MPEG1_Layer2/
MPEG2_AAC/ MPEG4_A
AC)
The CE2-HDMI-02C module support total two sets of audio and video input. Each set includes 1
HDMI port/1 component port and1 analog port.
If video comes from HDMI, there are three options for encoding dual audio:
1. One audio comes from HDMI and the another comes from analog; the encoding format
can be the same or different;
2. Dual audio all come from HDMI with the same content and the encoding format can be the
same or different;
3. Dual audio all come from analog input with the same content, encoding format can be the
same or different.
If video comes from the component, there is only one choice for encoding dual audio:
Dual audio all come from analog input with the same content and the encoding format
can be the same or different.
3.3.9.3 IP Output
Please see CE2-HDMI-00 IP Output at page 48 for reference.
3.3.9.4 EAS Settings
Settings for the EAS feature need to be made on the encoder module so that when the EAS
source is triggered, the Audio and Video from the encoder will be replace by the Audio and Video
from AES module.
EAS will ask you the Source Multicast Address, Command port and Data port. This information
can be seen in the EAS page

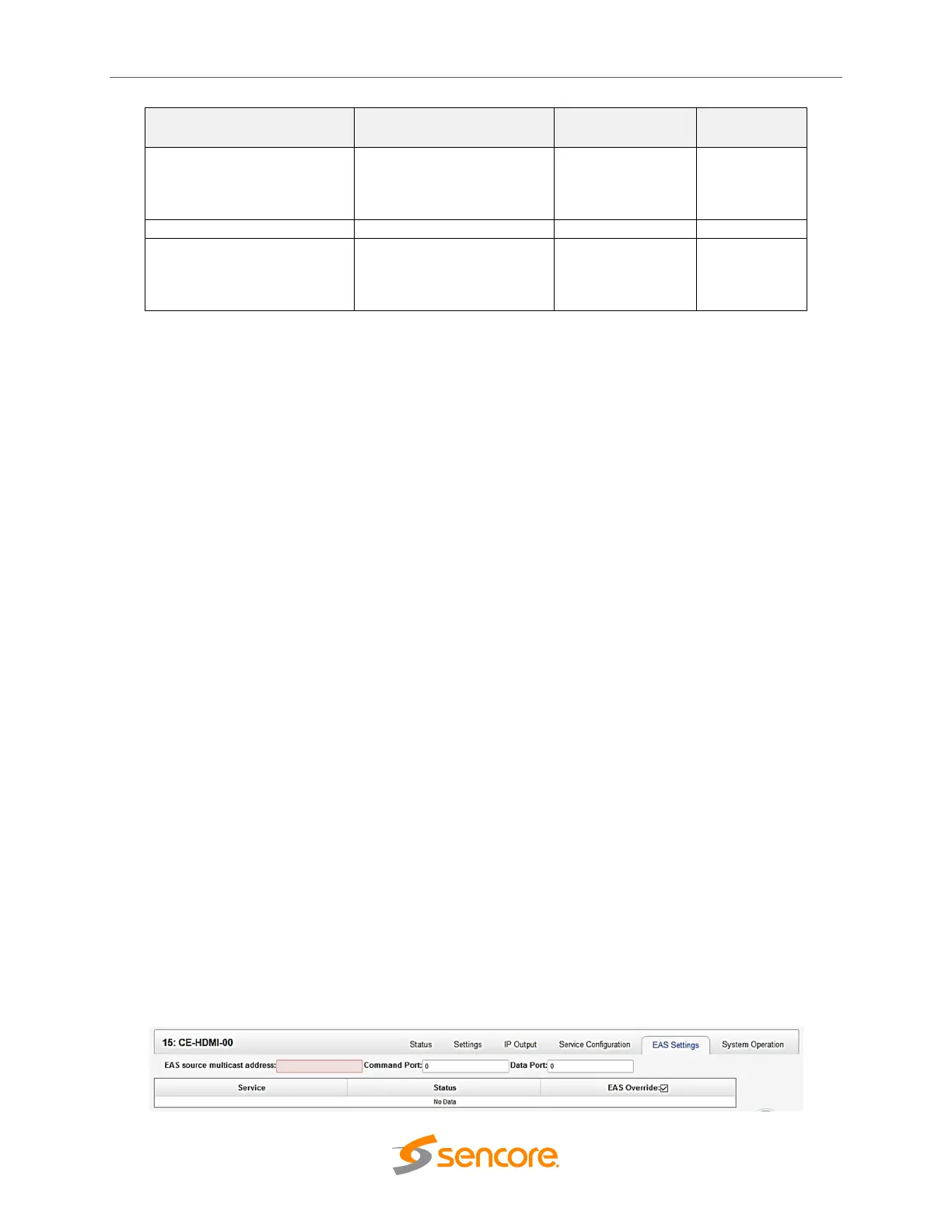

HDMI encoder EAS setting
