OmniHub CMP201– User Manual
Page 58 of 103
3.3.10.1 Module Status

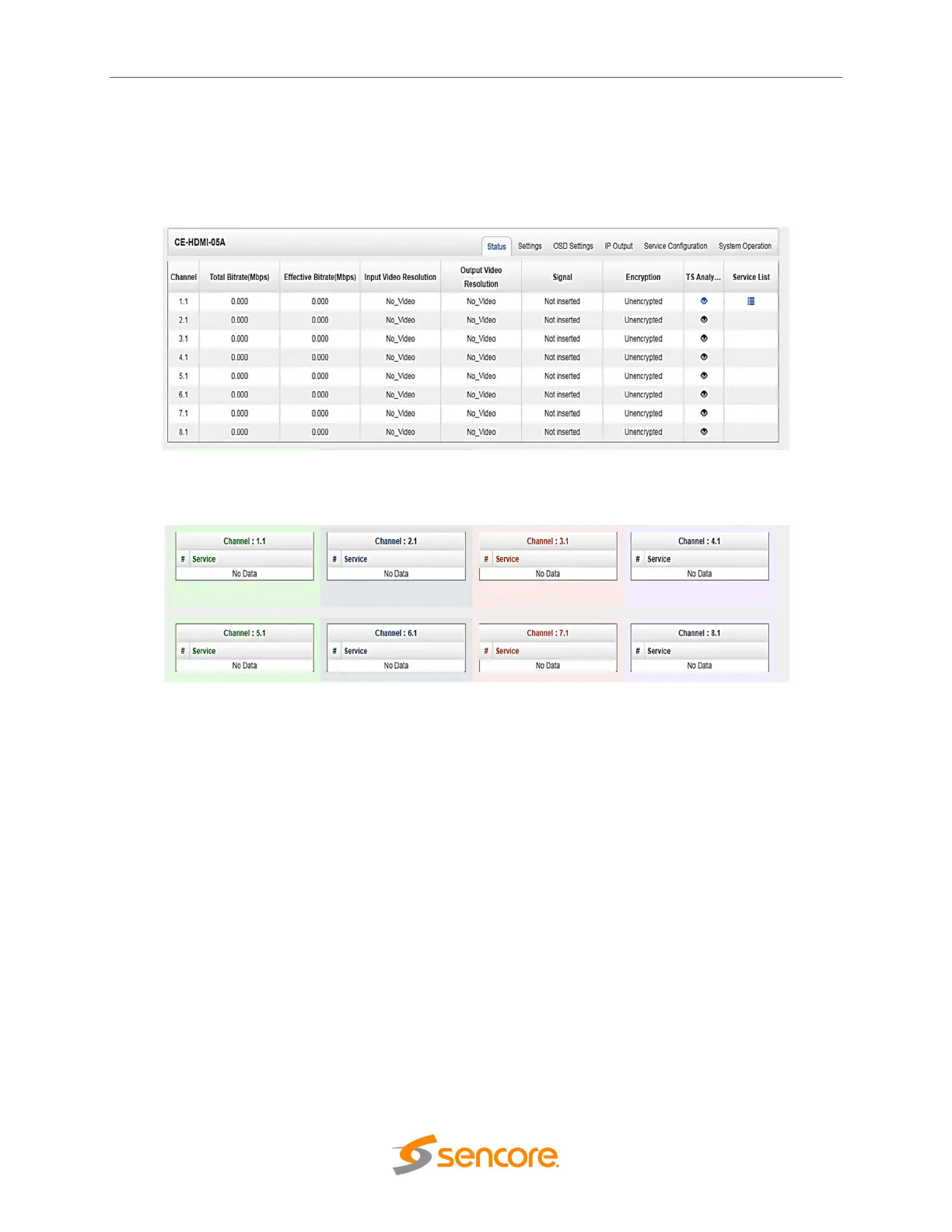

Like the other Hdmi encoder module. The Status of CE2-HDMI-05/05A show the Bitrate, input
and output Resolution, TS analysis and Service list in each channel as shown in the image
below.
