SensorLink Swarm S2 User Manual

Doc. No. 702202-252-01 rev. 00
Page 14 of 42
Swarm®S2 Installation and User Manual
Last updated 2021-03-02
by Harald Sleire
© Sensorlink Swarm AS 2021

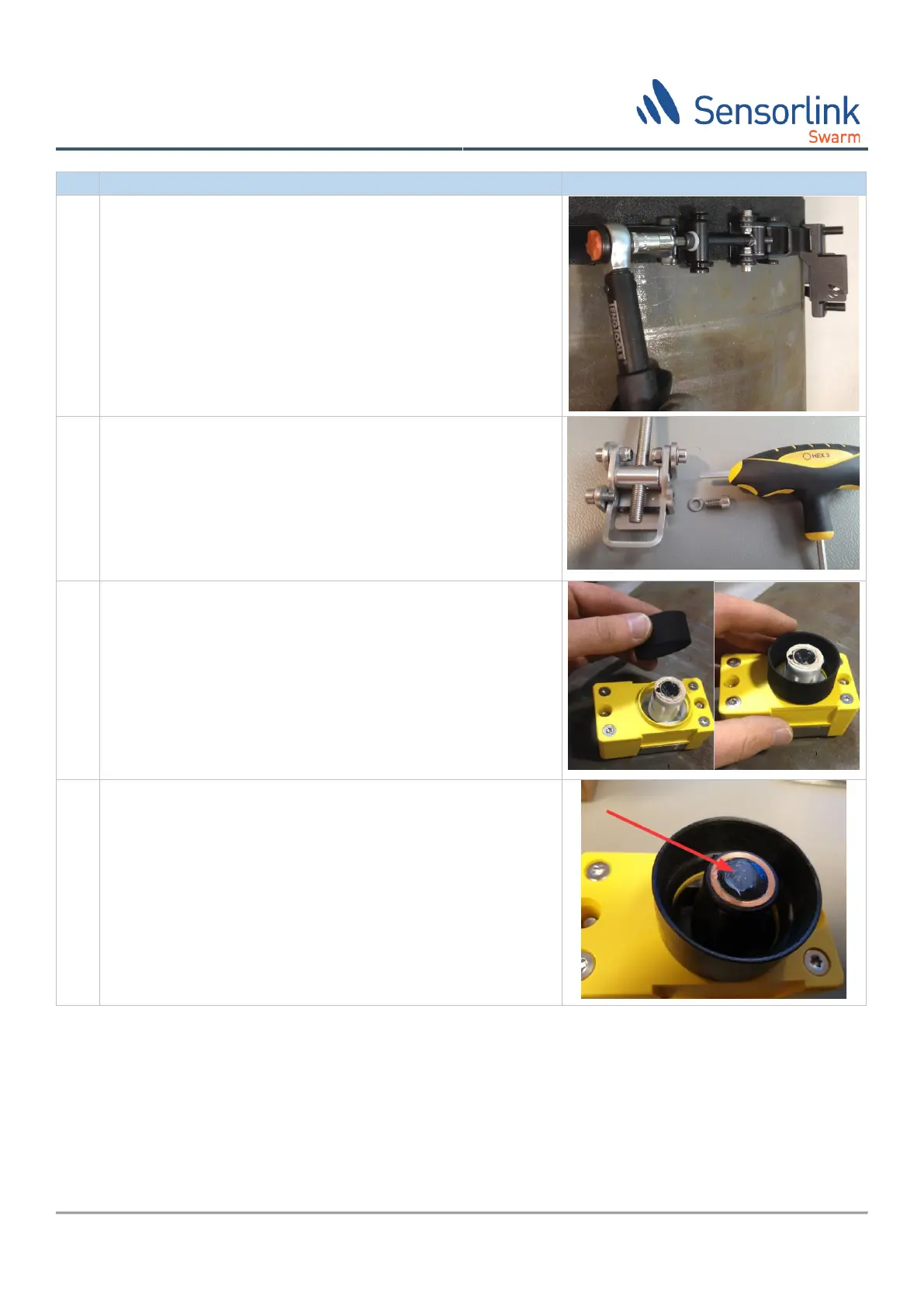

Step
Description
Illustration
14.
Tighten the band by using 5mm hex key and a torque wrench to
4 Nm on the buckle bolt.
15.
Fasten the M4 locking bolt and spring washer using a 3mm hex
key.
16.
Attach the protective silicon gasket.
17.
Apply a small amount of grease on the surface of the sensor in
the centre. Make sure that the grease does not trap air bubbles
so smoothen it towards the edges and leave a cone in the
middle.
Note: In the following illustrations the sensor apar yellow and
with two connectors. The Swarm S2 LT Sensor is black
aluminium housing and have only one connector.
The installation of Swarm S1 and Swarm S2 LT Sensor is identical,
thus the use for the same illustrations
