Installing the sensor cable
FlexZone Product Guide Page 31
At software defined zone boundaries
• Optionally, install zone demarcation loops at soft zone boundaries for increased zone
isolation. The extra cable helps ensure that valid targets are located accurately in the correct
zone. See Figure 23:
for sensitivity loop and zone demarcation loop layout recommendations.
See Figure 24:
for an illustration of how to use zone demarcation loops.
Service loops
• Install U-shaped service loops approximately 50 m (164 ft.) apart along the sensor cable run.
The loop should measure 30 to 45 cm from top to bottom. Install service loops at fence posts.
• For a double cable pass create two equally spaced service loops in the same manner as for a
single cable pass.

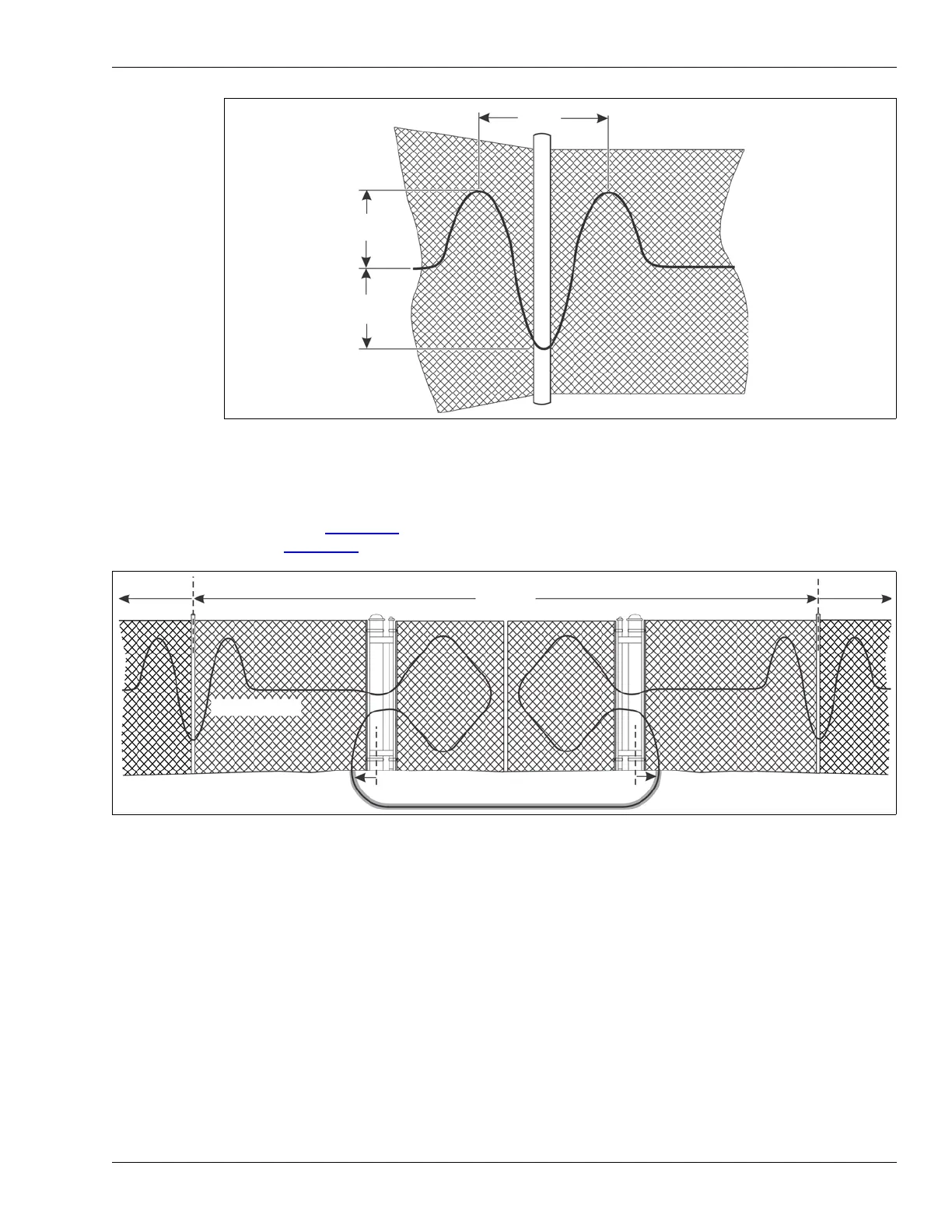

Figure 23: Sensitivity loops at corner and at heavy gauge posts
Figure 24: Optional Zone demarcation loops for software defined zone boundaries (protected gate access)
sensor cable
chain-link fence
1 m
(3.3 ft.)
0.5 m
(20 in.)
0.5 m
(20 in.)
zone demarcation loops
inactive bypass cable
Zone n
Zone n+1
Zone n+2
(assigned to Zone 0)
zone demarcation loops
protected gates
min. 15º slope
