Installing the sensor cable
FlexZone Product Guide Page 33
Splice loops
• If there is excess cable at a cable splice location, form splice service loops by creating up to 5
loops of sensor cable with a 60 cm (2 ft.) diameter. This will provide up to 10 m of sensor cable
at each side of the splice that can be used for future repairs or for changes in the sensor cable

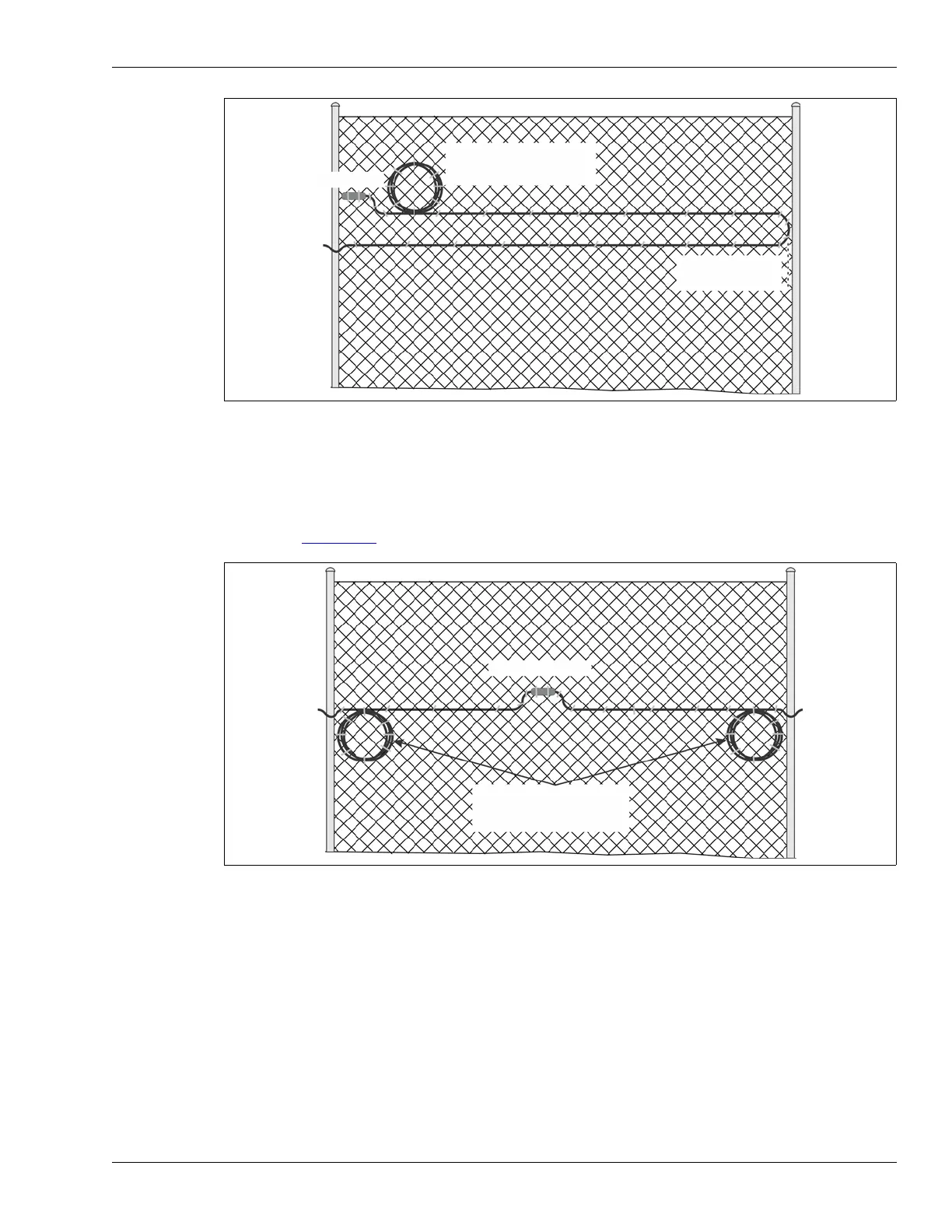

layout. Figure 28:
illustrates the recommended configuration for splice loops.
Figure 27: Termination loop example
Figure 28: Splice loop example
termination service loop
(5 loops, 60 cm diameter)
terminator
end of detecting
cable (software)
up to 10 m of cable
splice-connection
splice point service loops
(5 loops, 60 cm diameter)
up to 10 m of cable
