Installing the sensor cable
Page 32 FlexZone Product Guide
Drip loops
• Install drip loops at every cable connector. Form the drip loop by raising the connector above
the level of the cable run before securing it, horizontally, to the fence fabric (15 cm {6 in.} for
splices, or 20 cm {8 in.} for terminations).
Termination loops
• If there is excess cable at a terminator location, loop the cable back for one fence panel and
form a termination loop by creating up to 5 loops of sensor cable with a 60 cm (2 ft.) diameter.
This will provide up to 13 m of sensor cable that can be used for future repairs or for changes
in the sensor cable layout. Figure 27:
illustrates the recommended configuration for a
termination loop.

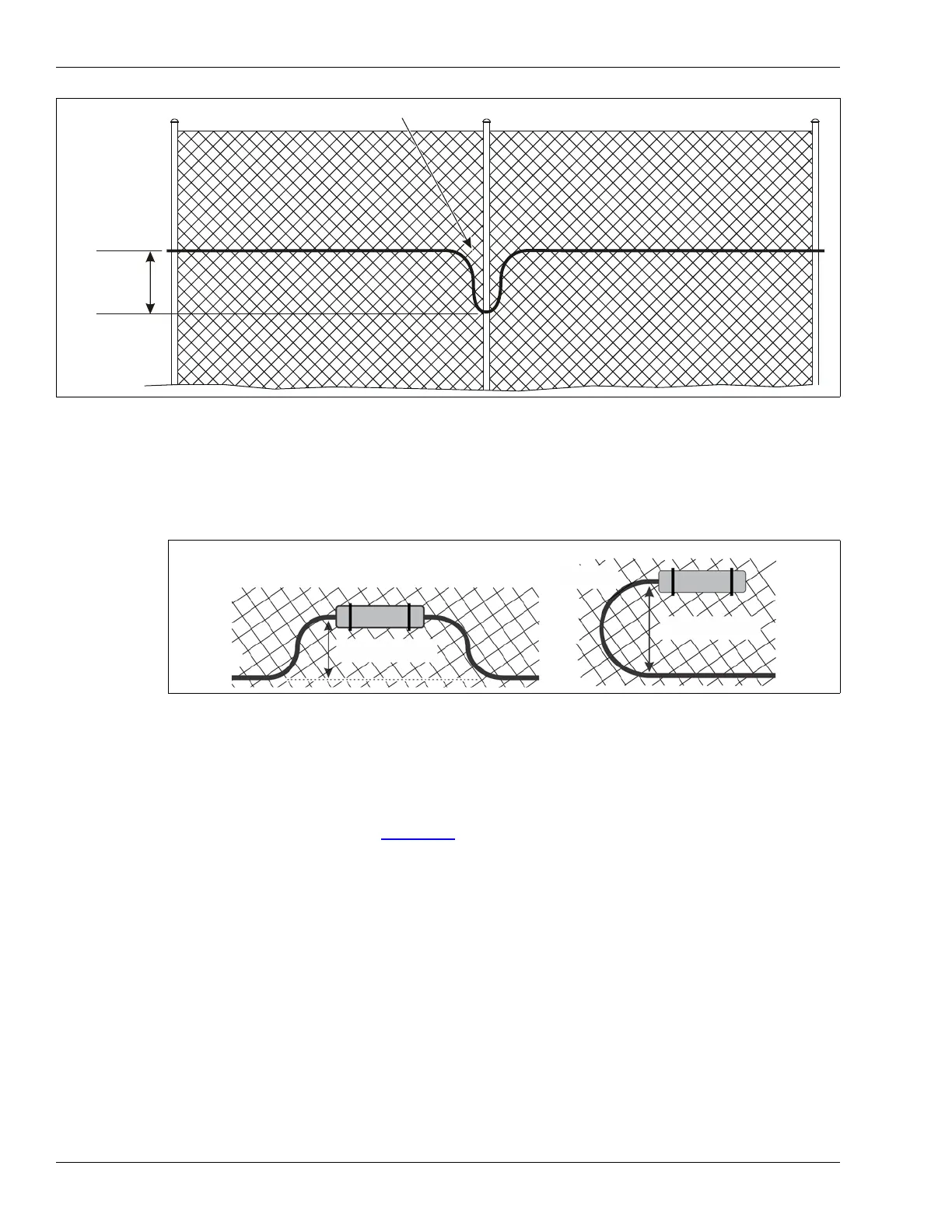

Figure 25: Single cable pass service loop
Figure 26: Drip loops
service loop for cable repair
30 to 45 cm
(12 to 18 in.)
15 cm (6 in.)
20 cm (8 in.)
splice connector
terminator
