Installing the sensor cable
FlexZone Product Guide Page 41
11. Line up the termination CCA so it is centered between the dual cable guide bars, and press
the assembly firmly into the gel snap enclosure. Press the sensor cable into the cable guide
bars. DO NOT remove the protective gel inside the enclosure.
12. Snap the enclosure shut ensuring that both tabs are securely locked in the slots.
13. Attach the enclosure to the fence. Form a 20 cm (8 in.) drip loop and install the enclosure
horizontally to protect the cable entry points from rain and run off.

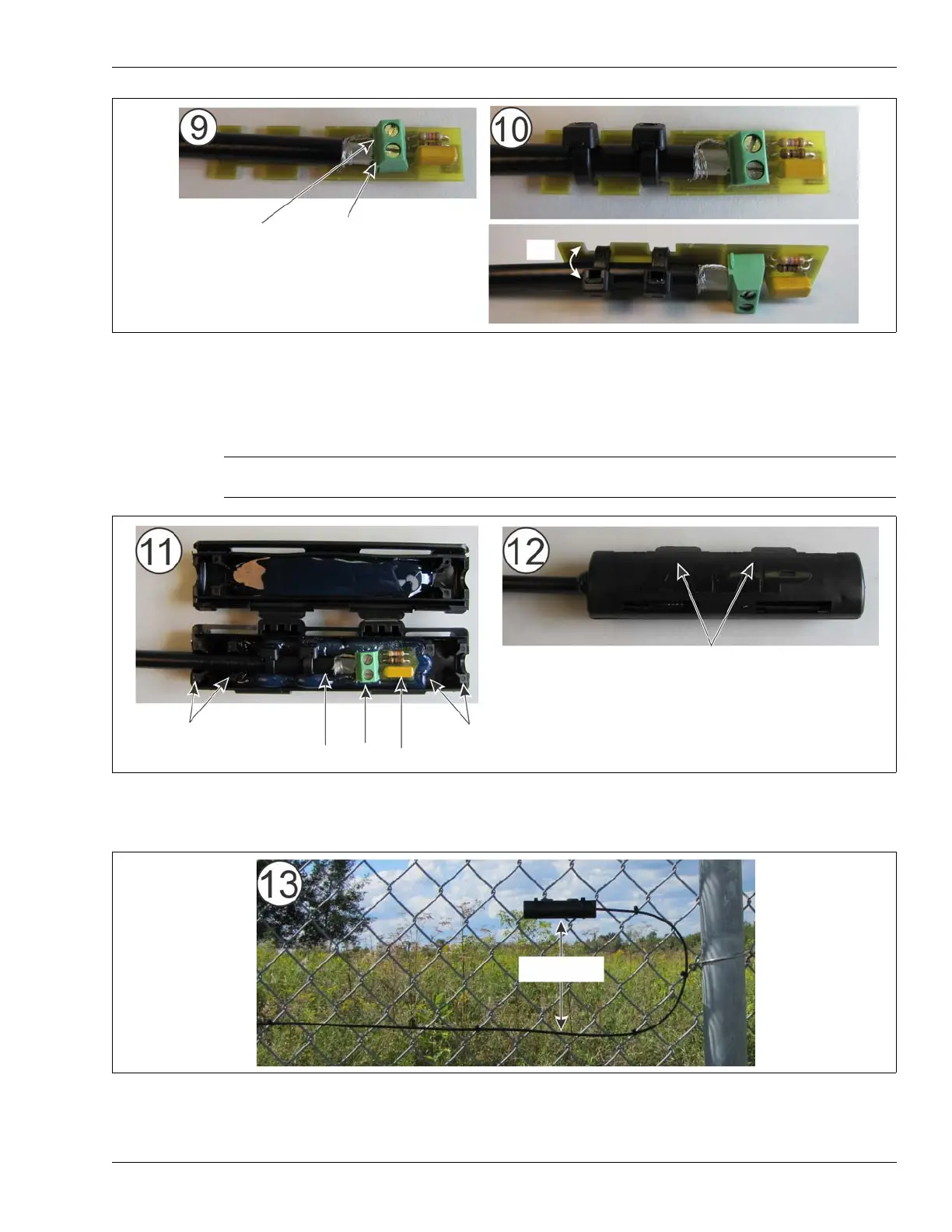

Figure 44: Sensor cable terminations steps 9 & 10
Note The weather-proofing protective gel should be oozing out of the gel
snap enclosure.
Figure 45: Sensor cable terminations steps 11 & 12
Figure 46: Mounting the termination enclosure
45º
shield
center conductor
dual cable guide bars
dual cable guide bars
center the terminator CCA between the dual cable guide bars
locking tabs in slots
