SENSTAR FlexZone - Page 59

Installing the FlexZone processor
FlexZone Product Guide Page 59

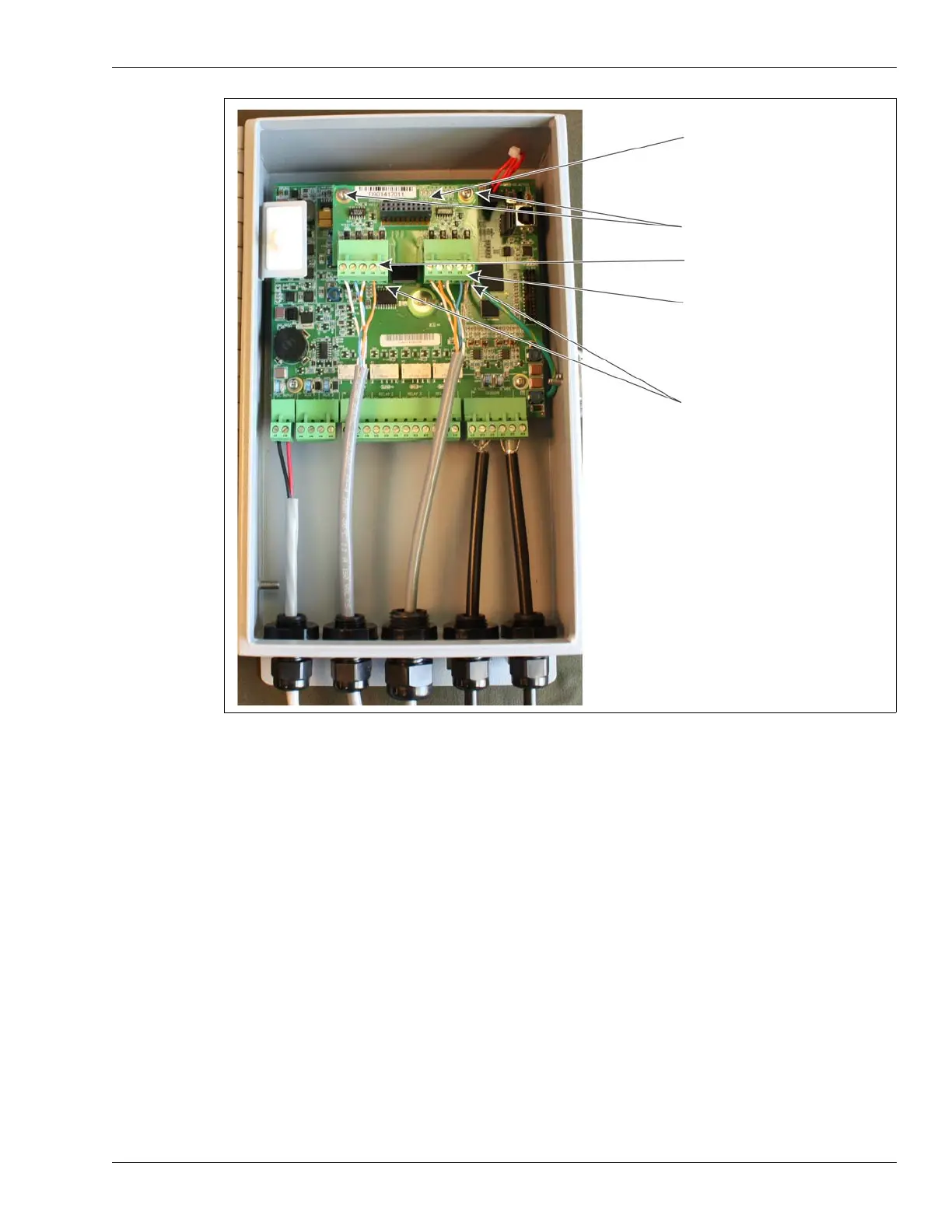

Figure 68: Silver Network EIA-422 wiring connections
expansion header T1
use single point grounding
(plugs into T2 on processor)
mounting hardware (X 2)
A-side comms
B-side comms
(connect one end of cable
(on solder side)
the other end and leave
it disconnected)
shield to ground, trim back
