SERVOPRO NOx Analyzers Page
→
→
→
→
→

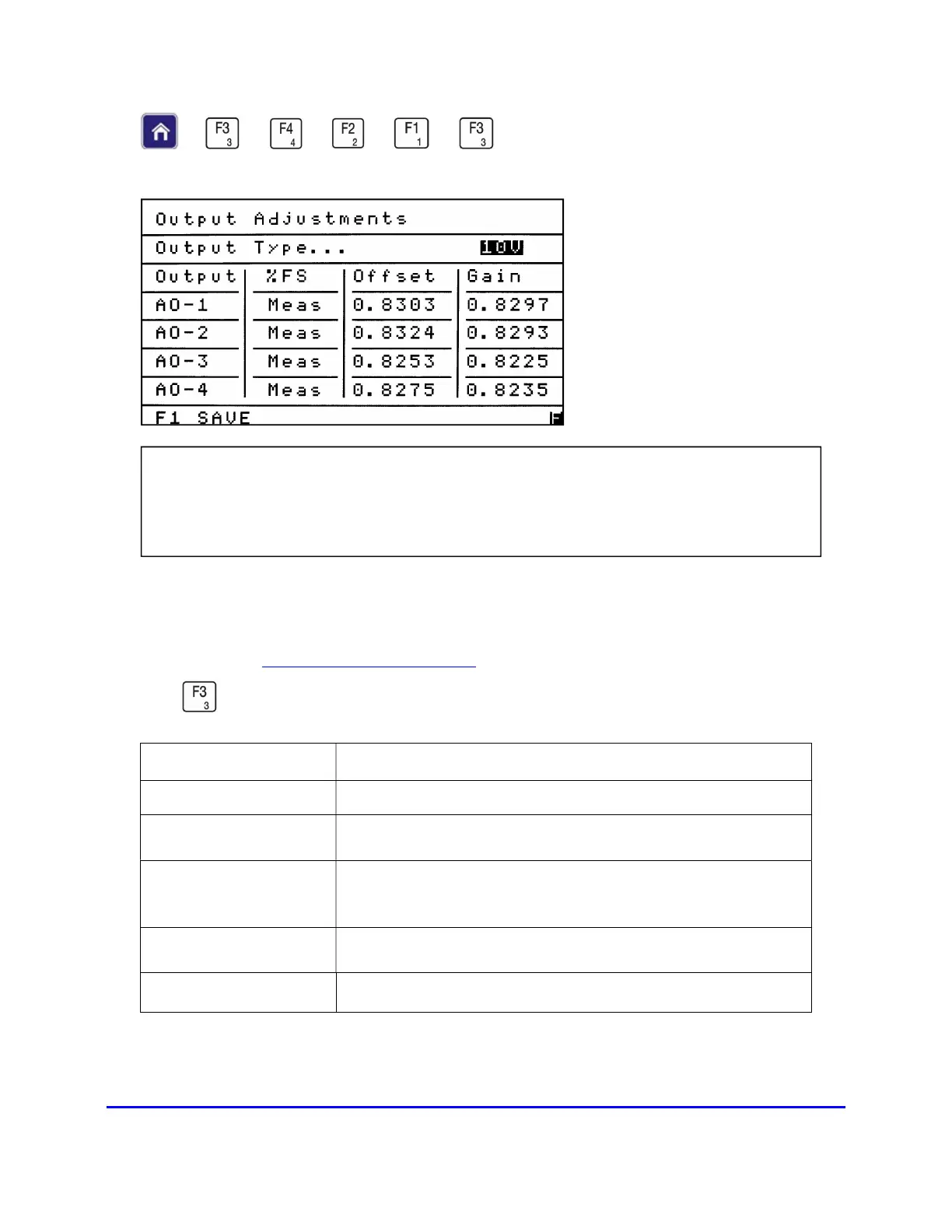

Using the Output Adjustments screen, the operator can force the analog outputs to 0%,
50% or 100% of Full scale and back to Measure. For information on analog output
connections see
Analog and Digital Interface. From the Programmable Analogs menu
press to access the Output Adjustments screen.
Output Adjustment Description
Output Type Can be set for mA or 1, 5 or 10 VDC
Output AO-1
Refers to analog output 1
% FS
Used to toggle between Measurement, 0%, 50% and 100%
Full scale.
Offset
Or Zero is used to adjust the output at 0%.
Gain
Or Span is used to adjust the output at 100%.
NOTE: The Output Adjustments screen allows the operator to set the output to either
mA or voltage and calibrate the outputs to exactly match the results obtained on a PLC
or other remote data-recording device.
