Mechanical installation
Mounting the device
Assembly and Operating Instructions – MAXO-MS/M/SM-GIOP Sensor Module
23
4.6 Mounting the device
The device has 2slotted holes [4] on both sides. You can mount the device [3] using
the slotted holes [4] and 4 cap screws [6].
• Use screws [6] of suitable length to mount the device [3].
• Use tooth lock washers [5] and washers, if necessary. This allows for a low-imped-
ance contact between the device [3] and the screw fitting so that the device is con-
nected to the equipotential bonding of the vehicle.

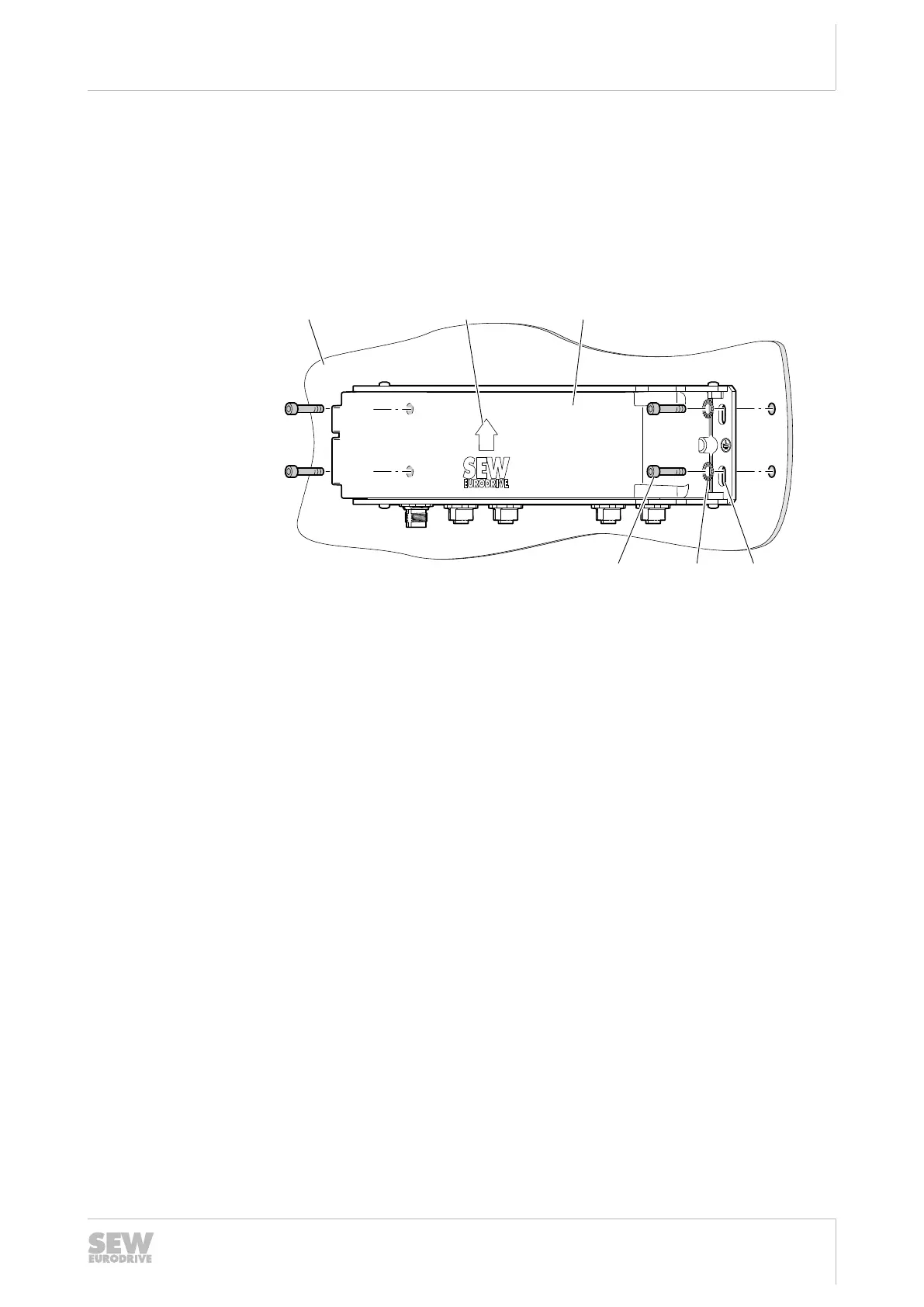

[1] [3][2]
[6] [5] [4]
33694343947
[1] Mounting plate for mounting the sensor module to the bottom of the vehicle
[2] The arrow points in the direction of travel when mounted correctly.
[3] Sensor module
[4] Slotted hole (4 pieces)
[5] Tooth lock washer (4 pieces) with washers, if necessary
[6] Cap screw M5 (4 pieces)
Tightening torque 5.8–6.8Nm, strength class 8.8
