(3) Place the color chart that accompanies the
machine on the test page.
Place five sheets of white plain paper under the printed
test page so that no background colour or pattern shows
through the test page.

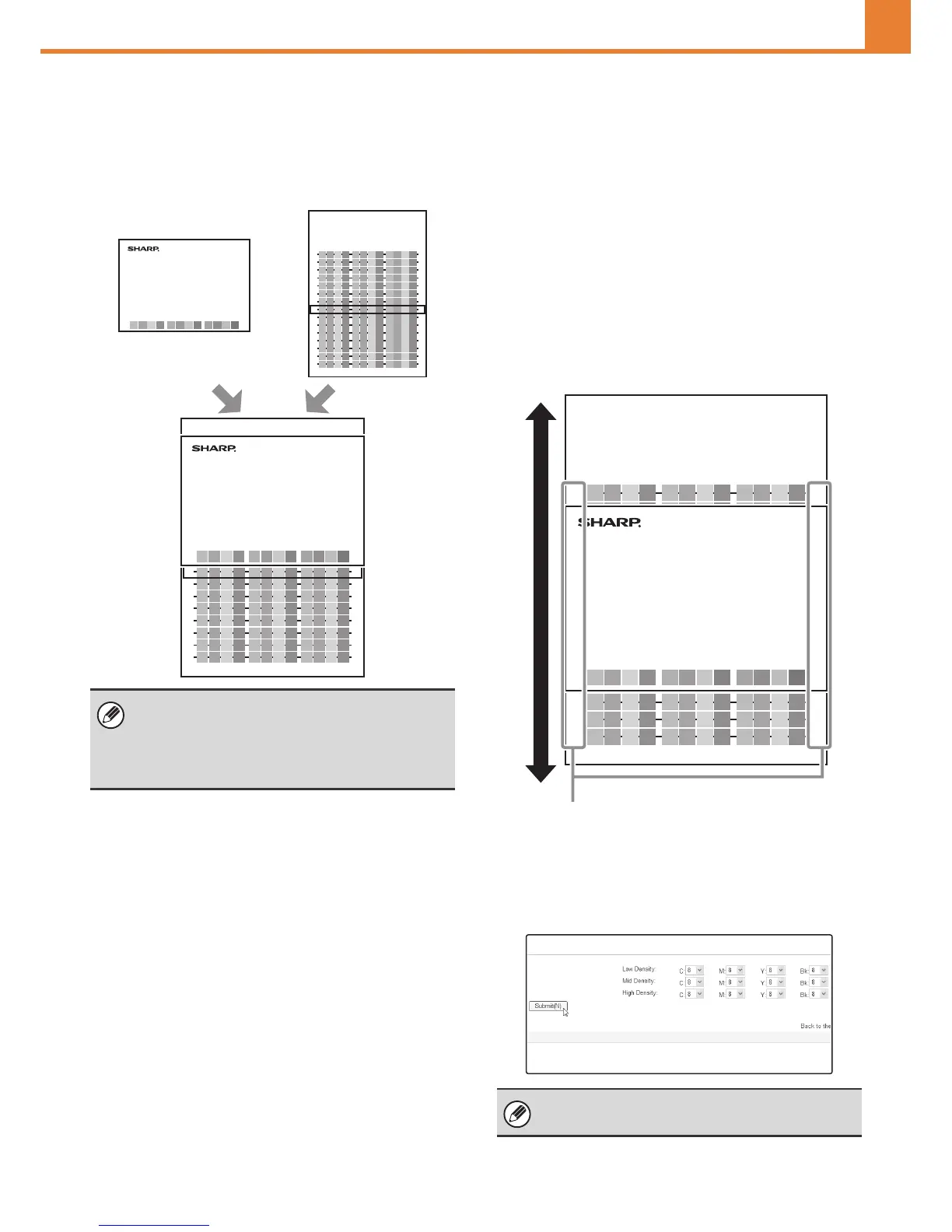

(4) Move the color chart vertically to select the
similar colours to the color chart.
Compare the test page to the color chart from directly in front.
To select the colours, follow the steps below.
1 From column C of "Low Density" on the test page,
select the similar colour as the cyan in "Low" on
the color chart.
When you find the similar colour, record the line
number indicated at left and right.
2 Repeat step 1 for magenta, yellow, and black.
Record the respective line numbers on the test page of
M (magenta), Y (yellow), and Bk (black).
3 Repeat steps 1 and 2 to select and record the line
numbers of the colours on the test page that are
similar to the cyan, magenta, yellow, and black in
"Mid" and "High" on the color chart.
(5)
Enter the line numbers recorded in step 4 in
the C, M, Y, and Bk boxes of "Low Density",
"Mid Density", and "High Density" in the
Colour Balance and click the [Submit] button.
Do not let the color chart that accompanies the
machine become dirty, and take care not to misplace
the color chart. If you misplace the color chart, contact
your dealer or nearest authorised service
representative.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Color Balance Testpage
Low Density Mid Density High Density
C M Y Bk C M Y Bk C M Y Bk
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Color Balance Testpage
Low Density Mid Density High Density
CMYBk CMYBk CMYBk
Color Chart
XXXX-XXXXXXXX
Low Mid High
Color Chart
XXXX-XXXXXXXX
Low Mid High
CMYK CMYK CMYK
CMYK CMYK CMYK
Color chart
Test page
If the colour adjustment is not satisfactory on the trial
print, repeat the above procedure (1) to (5).
