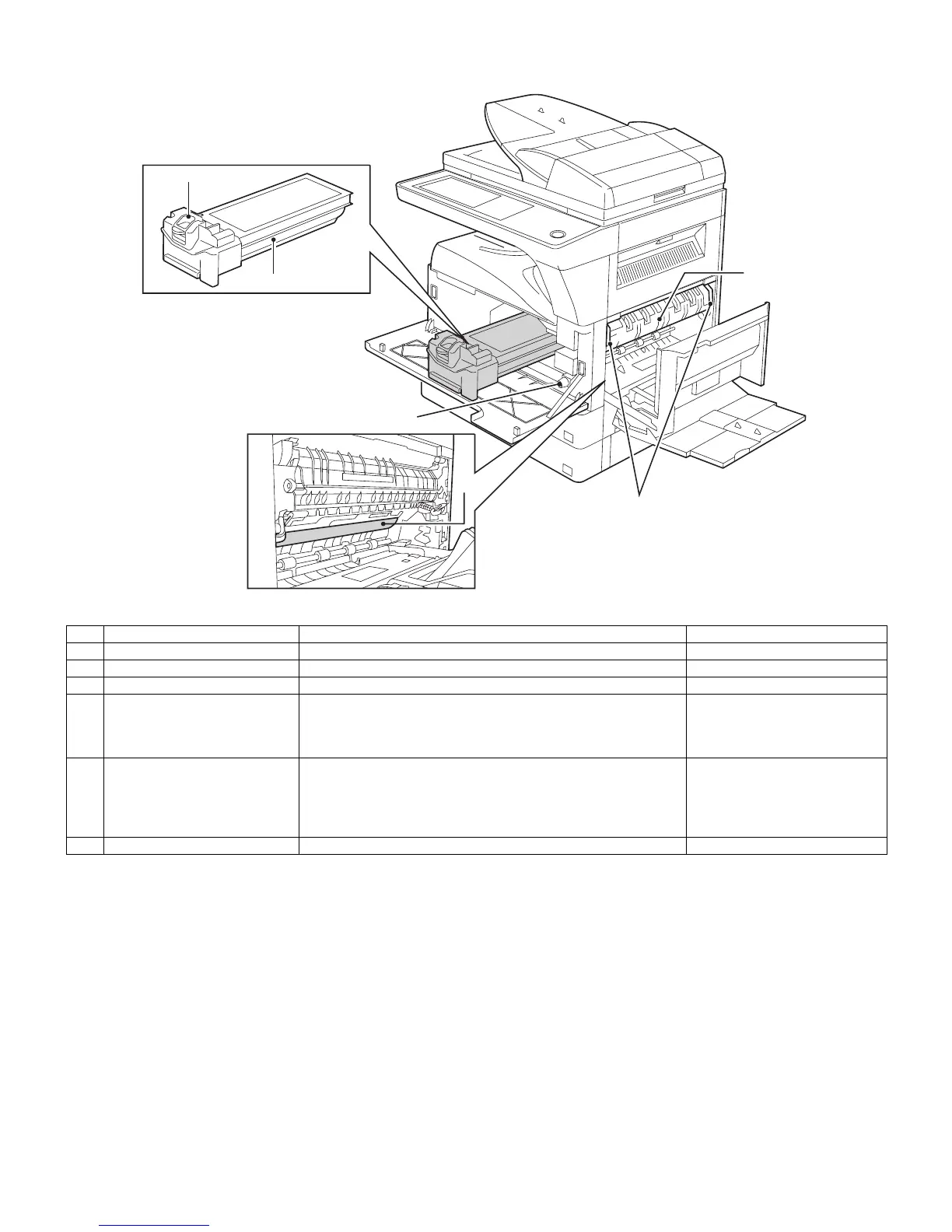

MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 2
2. Internal structure
No. Name Function/Operation Note
1 Toner cartridge lock release lever Use to unlock the toner cartridge.
2 Toner cartridge Contains toner.
3 Roller rotating knob Turn to remove misfed paper.
4 Photoconductive drum Copy images are formed on the photoconductive drum. Do not touch the photoconductive
drum (green portion). Doing so
may damage the drum and cause
smudges on copies.
5 Fusing unit release levers To remove a paper misfeed in the fusing unit, push up on these
levers and remove the paper.
The fusing unit is hot.
Do not touch the fusing unit when
removing misfed paper.
Doing so may cause a burn or
injury.
6 Fusing unit paper guide Open to remove misfed paper.
1
2
3
4
5
6

Sharp MX-M260 Specifications

General

Print Technology	Laser
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Copy Speed	26 cpm
Max Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Warm-up Time	25 seconds
Fax Resolution	200 x 200 dpi
Paper Capacity	1, 100 sheets
Max Paper Size	A3
Duplex Printing	Yes
Functions	Print, Copy, Scan
Zoom Range	25% to 400%
Supported Paper Sizes	A4, A5, B5
Network Connectivity	Optional (Ethernet)
USB Connectivity	USB 2.0
Weight	28.5 kg
