Sharp MX-M260 Service Manual

MX-M260/M310/M260N/M310N MAINTENANCE 8 - 6

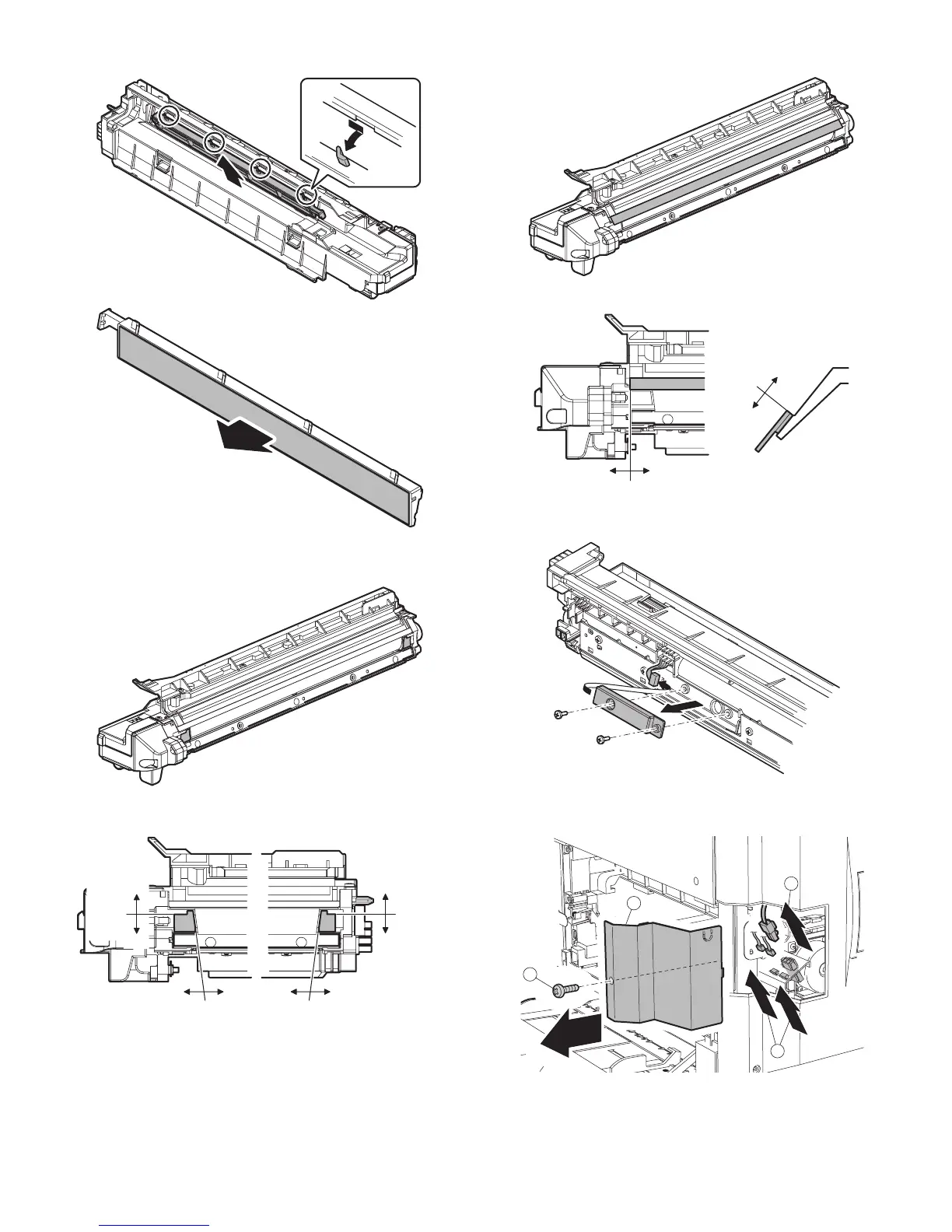

(2) Toner filter unit
(3) DV side sheet F/ DV side sheet R
[DV side sheet F/ DV side sheet R attachment reference]
(4) DV blade
[DV blade attachment reference]
(5) Toner sensor
• Clean the sensor only after removing used DV when replacing DV.
C. Fusing section
00.5 0 0.5
0
0.3
0
0.3
Projection edge
reference
Projection edge
reference
Molt
edge
reference
Molt
edge
reference
0
0.5
[Cross-section]
0
0.5
Bump
reference
Rib reference
3
3
1
2
