Sharp MX-M260 Service Manual

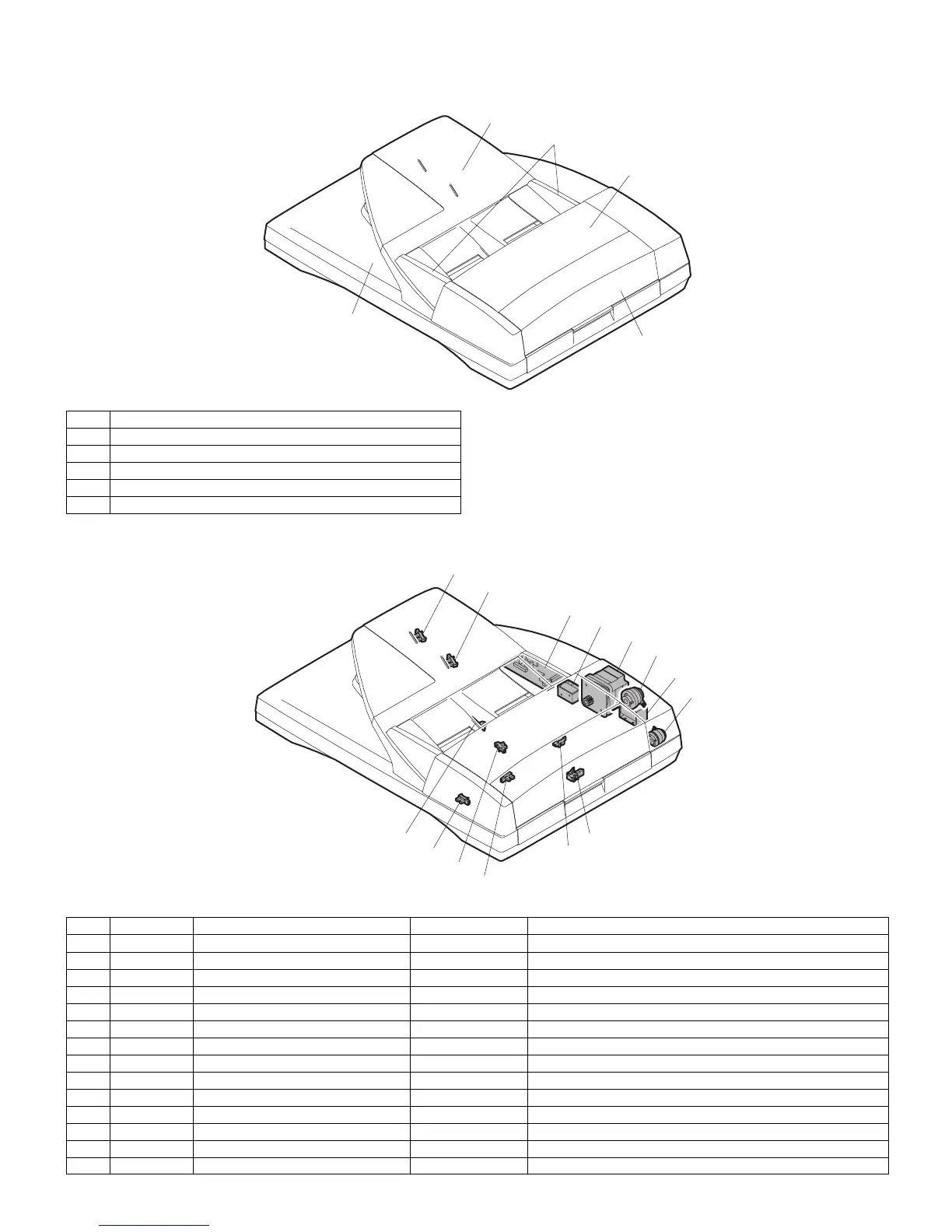

MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 4
4. RSPF
A. External view
B. Internal structure
No. Name
1 Document set tray
2 Document guide
3 Document feed section cover
4 Document transport section cover
5 Document exit section
1
2
3
4
5
14
13
12
11
10
6
4
5
3
8
9
7
2
1
No. Code Name Type Function/Operation
1 EMPS Document set sensor Photo transmission Detects presence of documents.
2 FGOD Open/close sensor Photo transmission Detects open/close of the paper feed unit.
3 DFCL Paper feed clutch — —
4 DFD Paper entry sensor Photo transmission Detects presence of documents.
5 RSOL Pressure release solenoid — —
6 CLH Transport clutch — —
7 DTM SPF motor Stepping motor Drives document feed on the tray, transport, and paper exit roller.
8 GSOL Gate solenoid — —
9 — Interface PWB — —
10 DLS1 Document length detection SW (Short) Photo transmission Detects the document length on the tray.
11 DLS2 Document length detection SW (Long) Photo transmission Detects the document length on the tray.
12 OPCLS Book sensor Photo transmission Detects the SPF float.
13 RDD Paper exit sensor Photo transmission Detects presence of documents.
14 SWD Document width sensor Volume Detects the document width on the tray.

Sharp MX-M260 Specifications

General

Print Technology	Laser
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Copy Speed	26 cpm
Max Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Warm-up Time	25 seconds
Fax Resolution	200 x 200 dpi
Paper Capacity	1, 100 sheets
Max Paper Size	A3
Duplex Printing	Yes
Functions	Print, Copy, Scan
Zoom Range	25% to 400%
Supported Paper Sizes	A4, A5, B5
Network Connectivity	Optional (Ethernet)
USB Connectivity	USB 2.0
Weight	28.5 kg
