MX-M260/M310/M260N/M310N ADJUSTMENTS 5 - 9
(15) RSPF scan position auto adjustment
[Function]
Used to adjust the RSPF scan position automatically.
[Operation]
1) With the RSPF or the OC cover open, place a white paper back-
ground on the OC glass. (In the RSPF standard model, the RSPF
glass surface is included.)
2) Enter SIM53-08, and press [START] button.
Outline of SIM: The optical unit is shifted to recognize the bound-
ary between the OC glass and the RSPF glass cover.
With the same position as the reference, the RSPF scan position is
automatically adjusted.
<Note>
• After completion of the RSPF scan position auto adjustment, the
RSPF lead edge adjustment must be executed. (Both surfaces)
• There must be no other sheet than the black chart on the glass sur-
face.
• Especially when in RSPF scan, the center area is scanned in the
main scan direction. Be careful to prevent external light from enter-
ing the scan area.
3) Check that the lead edge is not shifted. (Both surfaces)
(If the original lead edge adjustment has been made properly, even
when the scan position is shifted, it is followed automatically.)
C. Image density (exposure) adjustment
(1) Copy mode (SIM46-2)

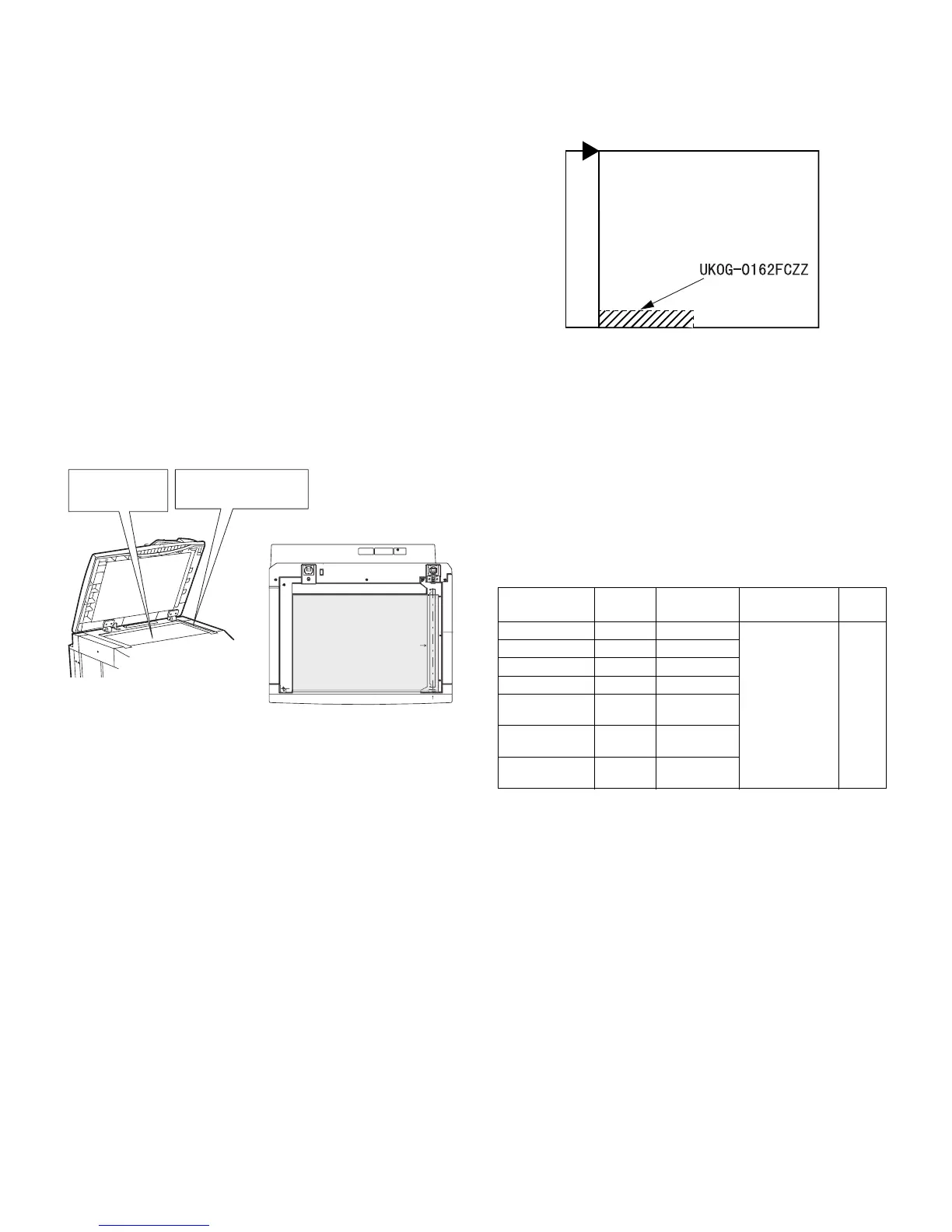

1) Set a test chart (UKOG-0162FCZZ) on the OC table as shown
below.
2) Place three or more sheets of A3 (11" x 17") paper on the test
chart.
3) Execute SIM 46-2.
4) After warm-up, shading is performed and the current set value of
the density (exposure) level is displayed on the display section in 2
digits.
For mode selection, use the [10-key].
5) Change the set value with the [10-key] to adjust the copy image
density.
6) Make a copy and check that the specification below is satisfied.
Note: Place originals in the rear reference, and the test chart in the
front reference when adjusting the exposure.
<Adjustment specification>
Place only the white
paper on the OC glass.
For the RSPF standard-provision
machine, check that the white
Placing the white paper
The white chart must cover
this area.
paper covers the SPF glass.
Density mode
Exposure
level
Sharp Gray
Chart output
Set value
Setting
range
AUTO – "3" is copied. If too bright,
increase the
quantity displayed
on the copy
quantity display.
If too dark,
decrease the
quantity displayed
on the copy
quantity display.
0 – 99
TEXT 3.0 "3" is copied.
TEXT/PHOTO
3.0 "3" is copied.
PHOTO 3.0 "2" is copied.
AE (TONER
SAVE)
– "3" is copied.
TEXT (TONER
SAVE)
3.0 "3" is copied.
TEXT PHOTO
(TONER SAVE)
3.0 "3" is copied.
Rear
Front
