MX-M260/M310/M260N/M310N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 - 3

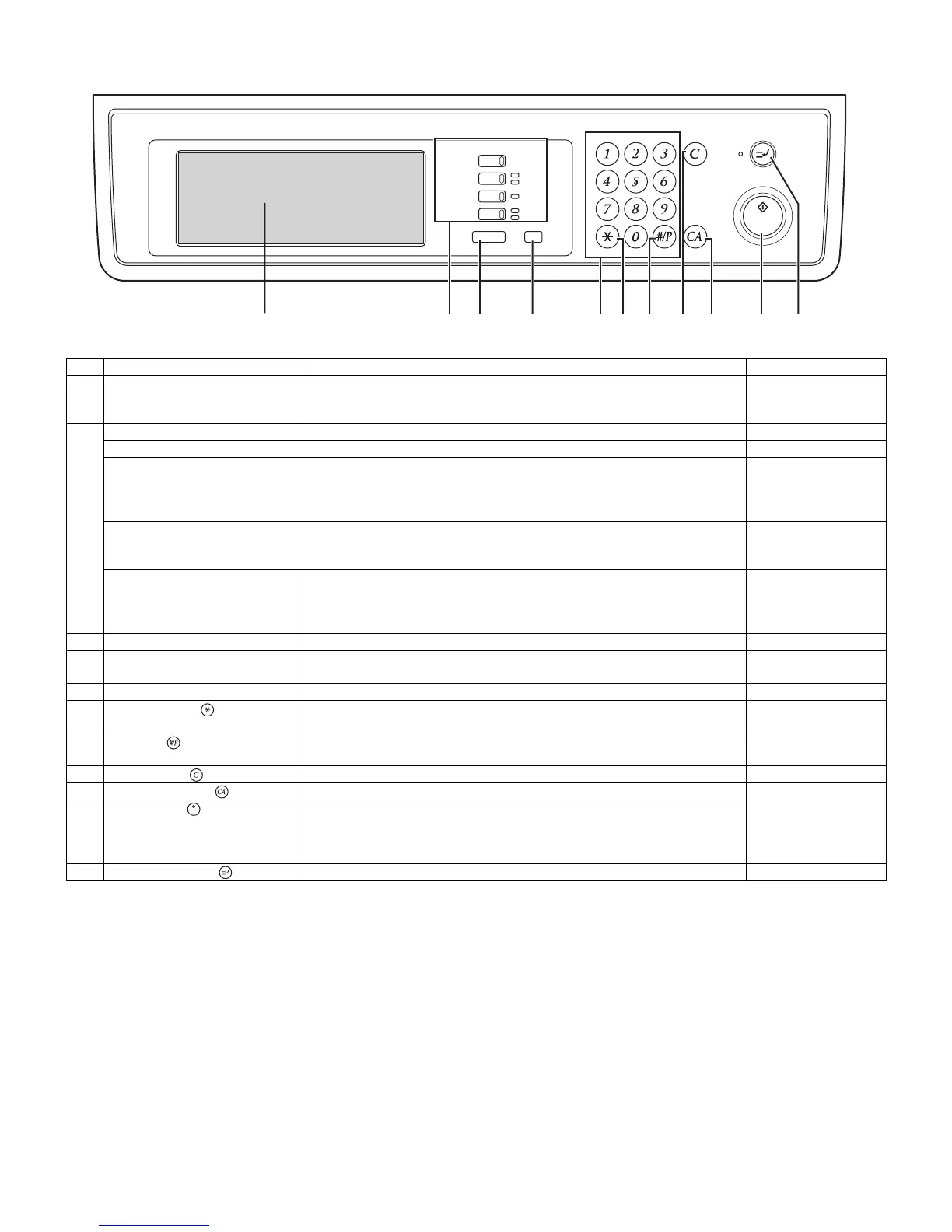

3. Operation panel
No. Name Function/Operation Note
1 Touch panel The machine status, messages and touch keys are displayed on the panel.
The display will show the status of printing, copying or network scanning
according to the mode that is selected. For details see the next page.
2 Mode select keys and indicators Use to change modes and the corresponding display on the touch panel.
[COPY] key Press to select copy mode.
[PRINT] key/ONLINE indicator/
DATA indicator
[PRINT] key: Press to select print mode.
• ONLINE indicator: Print jobs can be received when this indicator is lit.
• DATA indicator: A print job is in memory. The indicator lights steadily while
the job is held in memory, and blinks while the job is printed.
[SCAN] key/DATA indicator [SCAN] key: Press to select network scan mode when the network scanner
option is installed.
• DATA indicator: Lights steadily or blinks while a scanned image is being sent.
When the network
scanner option is
installed.
[FAX] key/LINE indicator/
DATA indicator
[FAX] key: Press to select fax mode when the fax option is installed.
• LINE indicator : This lights up while faxes are being sent or received.
• DATA indicator: Blinks when a fax has been received to memory and lights
steadily when a fax is waiting in memory for transmission.
When the fax option is
installed.
3 [JOB STATUS] key Press to display the current job status.
4 [SYSTEM SETTINGS] key Use to adjust various settings of the machine including the contrast of the touch
panel and administrator settings.
5 Numeric keys Use to enter numeric values for various settings.
6 [LOGOUT] key ( ) When auditing mode is enabled, press this key after finishing a job to return the
machine to account number entry standby.
7 [#/P] key ( ) Use this key to execute a job program in copy mode.
The key is also used to dial in fax mode.
8 [CLEAR] key ( ) Press to clear a copy number setting or cancel a job.
9 [CLEAR ALL] key ( ) Resets the settings to the initial settings.
10 [START] key ( ) Press in copy mode, scanner mode, or fax mode to begin copying, network
scanning, or faxing.
This key blinks when auto power shut mode has activated. Press the key to
return to normal operation.
11 [INTERRUPT] key ( ) Use to perform an interrupt copy job.
JOB STATUS
COPY
PRINT
SCAN
FAX
ON LINE
DATA
DATA
LINE
DATA
SYSTEM SETTINGS
LOGOUT
1234567891011
