Sharp MX-M260 Service Manual

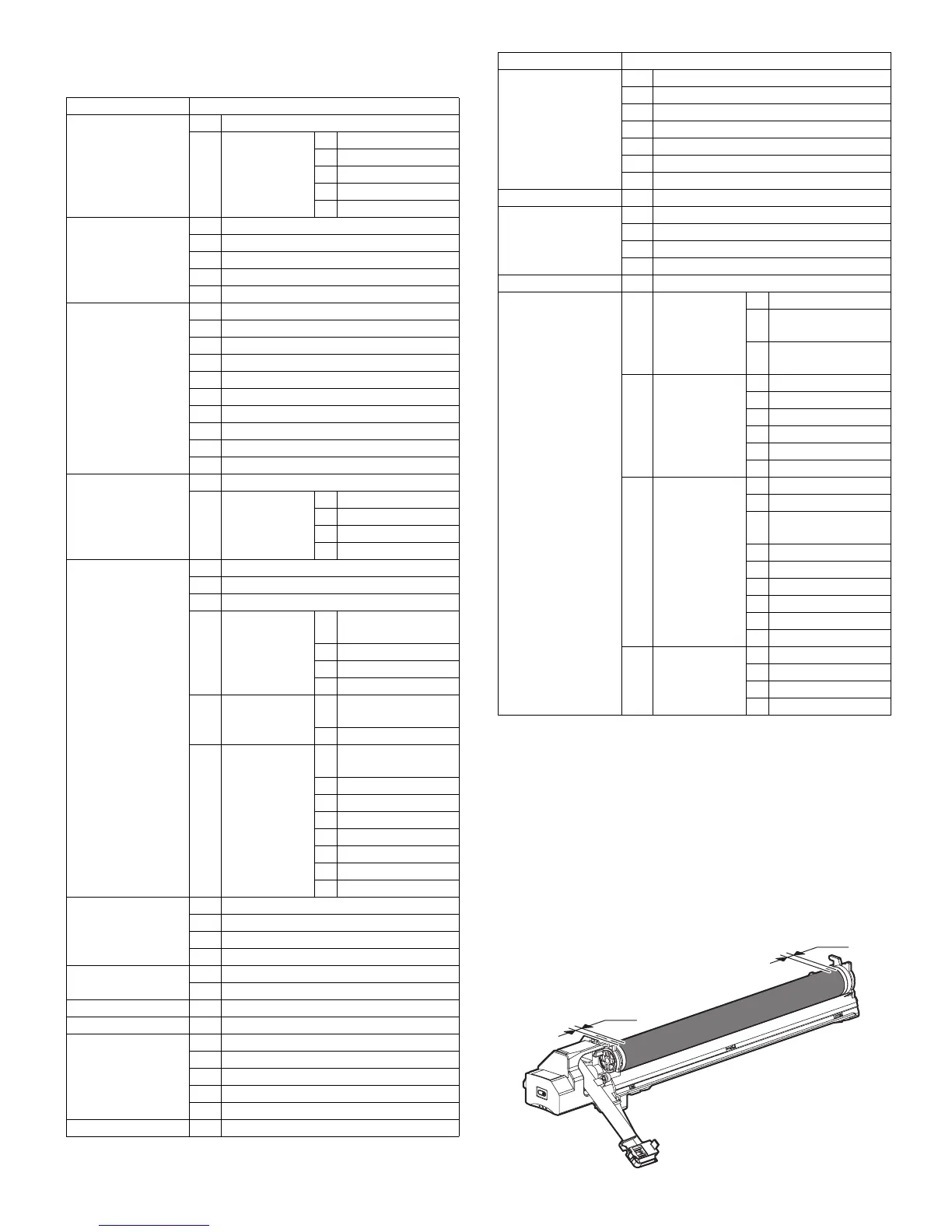

MX-M260/M310/M260N/M310N MAINTENANCE 8 - 3
2. Details of Maintenance
A. Process unit
(Note for servicing the OPC drums)
1. Prevention of oily dirt attachment
Note:
• Be careful not to attach fingerprints or oily dirt on the OPC drum sur-
face. (Keep the unit away from oils and dust.)
• When replacing the OPC drum, cover the OPC drum with the protec-
tion sheet and hold the protection sheet.
If it is required to hold the OPC drum directly, use enough care not to
touch the cleaning blade area, 5mm inside from both edges of the
OPC drum. (If a fingerprint or oily dirt is attached to the cleaning
blade area of the OPC drum, the cleaning blade may flip.)
Unit Parts
A. Process unit (1) Drum
(2) Drum section a. Main charger
b. Cleaning blade
c. Drum frame unit
d. Moquette F/R
e. Separation pawl
B. Developing unit (1) Developer
(2) Toner filter unit
(3) DV side sheet F/ DV side sheet R
(4) DV blade
(5) Toner sensor
C. Fusing section (1) Thermostat
(2) Thermistor
(3) Paper guide
(4) Fusing separation pawl (lower)
(5) Lower heat roller
(6) Heater lamp
(7) Upper cleaning pad
(8) Fusing separation pawl (upper)
(9) Upper heat roller
(10) Thermistor cleaning pad
D. Optical section (1) CCD unit
(2) Lamp unit a. Lamp
b. PWB
c. Wire
d. Mirror motor
E. Paper feed
section
(1) Paper feed solenoid
(2) Tray sensor PWB
(3) Manual P-in sensor/Manual empty sensor
(4) Multi manual
paper feed
a. Paper feed roller/
pickup roller
b. Reverse sensor
c. Separation sheet
d. Clutch/solenoid
(5) Upper 500
sheets tray
paper feed
a. Paper feed roller/
pickup roller
b. Separation sheet
(6) Lower 500
sheets tray
paper feed
a. Paper feed roller/
pickup roller
b. Separation sheet
c. Lift up unit
d. Transport clutch
e. Paper feed clutch
f. Transport clutch
g. Solenoid
h. Sensor PWB
F. Side door unit (1) Transport roller unit
(2) Transport roller
(3) DUP transport roller
(4) DUP motor
G. 1st paper exit unit (1) Cooling fan
(2) Exit roller
H. Laser unit (1) LSU
I. Power unit (1) Power source
J. PWB (1) Option CN PWB
(2) IMC PWB
(3) MCU PWB
(4) Motherboard PWB
(5) Second interface PWB
K. Ozone filter
L. Drive section (1) DUP reverse motor
(2) Main drive motor
(3) Toner motor
(4) PS transport clutch
(5) Paper feed clutch
(6) Drive unit
(7) Lift up motor
M. Transport section (1) Transport roller
N. Operation section (1) Operation section
(2) OPU PWB
(3) Key PWB
(4) LCD unit
O. Switch (1) Power switch
P. RSPF (1) Document tray
section
a. Document tray unit
b. Document length
sensor
c. Document width
resistor PWB
(2) Paper feed unit
section
a. Paper feed clutch
b. Pickup roller
c. Paper feed roller
d. Paper feed unit
e. Separation sheet
f. Sensor
(3) Transport
section
a. Transport unit
b. PS clutch
c. Pressure release
solenoid
d. RSPF motor
e. Transport roller
f. Roller
g. Sensor
h. Roller
i. Roller
(4) Base section a. Interface PWB
b. Solenoid
c. Book sensor
d. Sensor
Unit Parts
5mm
5mm

Sharp MX-M260 Specifications

General

Print Technology	Laser
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Copy Speed	26 cpm
Max Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Warm-up Time	25 seconds
Fax Resolution	200 x 200 dpi
Paper Capacity	1, 100 sheets
Max Paper Size	A3
Duplex Printing	Yes
Functions	Print, Copy, Scan
Zoom Range	25% to 400%
Supported Paper Sizes	A4, A5, B5
Network Connectivity	Optional (Ethernet)
USB Connectivity	USB 2.0
Weight	28.5 kg
