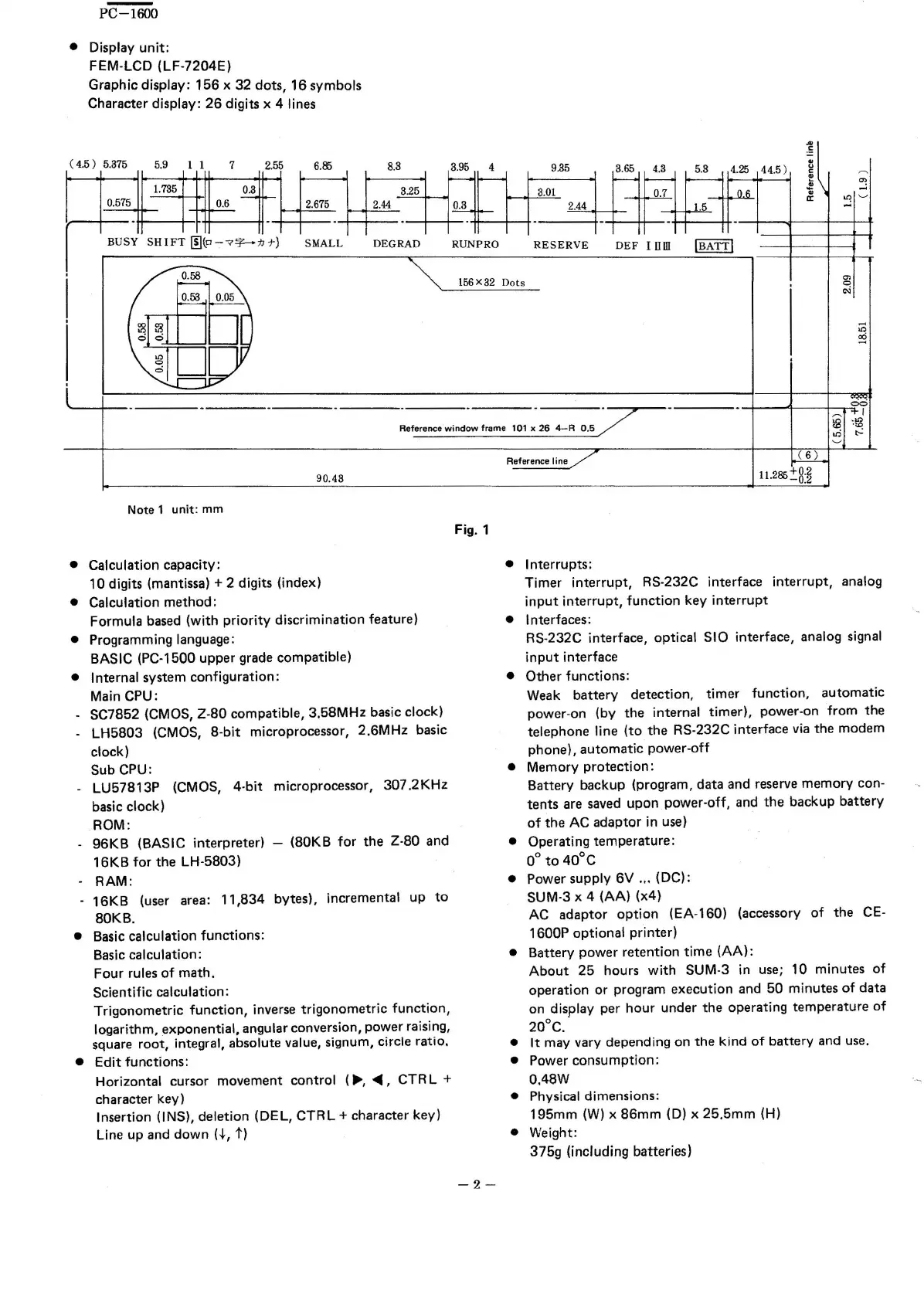

PC-1600
• Display unit:
FEM-LCD (LF·7204E)
Graphie display: 156 x 32 dots, 16 symbols
Character display: 26 digits
x
4 lines
(4.5) 5.375
5.9
1 1
7 2.55
6.85
8.3
3.95
4
9.35
3.65 4.3
5.3
4.25 44.5)
J\
»<:
I--"
I----'
r--
'"
....
1.735
0.3
3.25
3.01
0.7
.as.
'"
~
0.6 -
t--
er:
0.575
2.675
2.44
1Q1...
2.44
1.5
....
t-
.
-
. .
BUSY SHIFT 1!I(.o-7~:lJ7)
SMALL
DEGRAD
RUNPRO
RESERVE
DEF I
um
(SATT
I
,
~
-.
'"
156x32
Dots
0
I
'"
5
I
~l~
I
;;>
o
0
~
\1
r=---17
,
==
b:::::.-'
l
v
_j
-
;;;;"
.
-
.
.
~.f.r.nce Wind~ frame
101
x'26 4-R
0.5 '/
-
~I:i
I
Reference line /
~
90.43
11.285~8:~
Note 1 unit: mm
• Calculation capacity:
10 digits (mantissa)
+
2 digits (index)
• Calculation method:
Formula based (with priority discrimination feature)
• Programming language:
BASIC (PC·1500 upper grade compatible)
• Internal system configuration:
Main CPU:
SC7852 (CMOS,
Z·80
compatible, 3.58MHz basic clock]
LH5803 (CMOS, 8·bit microprocessor, 2.6MHz basic
clock)
Sub CPU:
LU57813P (CMOS, 4·bit microprocessor, 307,2KHz
basic clock)
ROM:
96KB (BASIC interpreter) - (80KB for the
Z·80
and
16KB for the LH·5803)
RAM:
16KB (user area: 11,834 bytes), incremental up to
80KB.
• Basic calculation functions:
Basic calculation:
Four rules of math.
Scientific calculation:
Trigonometrie function, inverse trigonometric function,
logarithm, exponential, angular conversion, power raising,
square root, integral, absolute value, signum, circle ratio.
• Edit functions:
Horizontal cursor movement control ( ..., ~, CTR L
+
character key I
Insertion (INS), deletion (DEL, CTRL
+
character key)
Une up and down
(i-,
t)
Fig.l
• Interrupts:
Timer interrupt, RS·232C interface interrupt, analog
input interrupt, function key interrupt
• Interfaces:
RS·232C interface, optical SIO interface, analog signal
Input interface
• Other functions:
Weak battery detection, timer function, automatic
power-on (by the internal timerl, power-on from the
telephone line (to the RS·232C interface via the modem
phone), automatic power-off
• Memory protection:
Battery backup (program, data and reserve memory con-
tents are saved upon power-off, and the backup battery
of the AC adaptor in use)
• Operating temperature:
0° to 40°C
• Power supply 6V ... (DC):
SUM·3 x 4 (AA) (x4)
AC adaptor option (EA·160) (accessory of the CE·
1600P optional printer)
• Battery power retention time (AA):
About 25 hours with SUM·3 in use; 10 minutes of
operation or program execution and 50 minutes of data
on display per hour under the operating temperature of
20°C.'
• It may vary depending on the kind of battery and use.
• Power consumption:
0,48W
• Physical dimensions:
195mm (W) x 86mm (0) x 25.5mm (H)
• Weight:
375g (including batteries)
-2-
