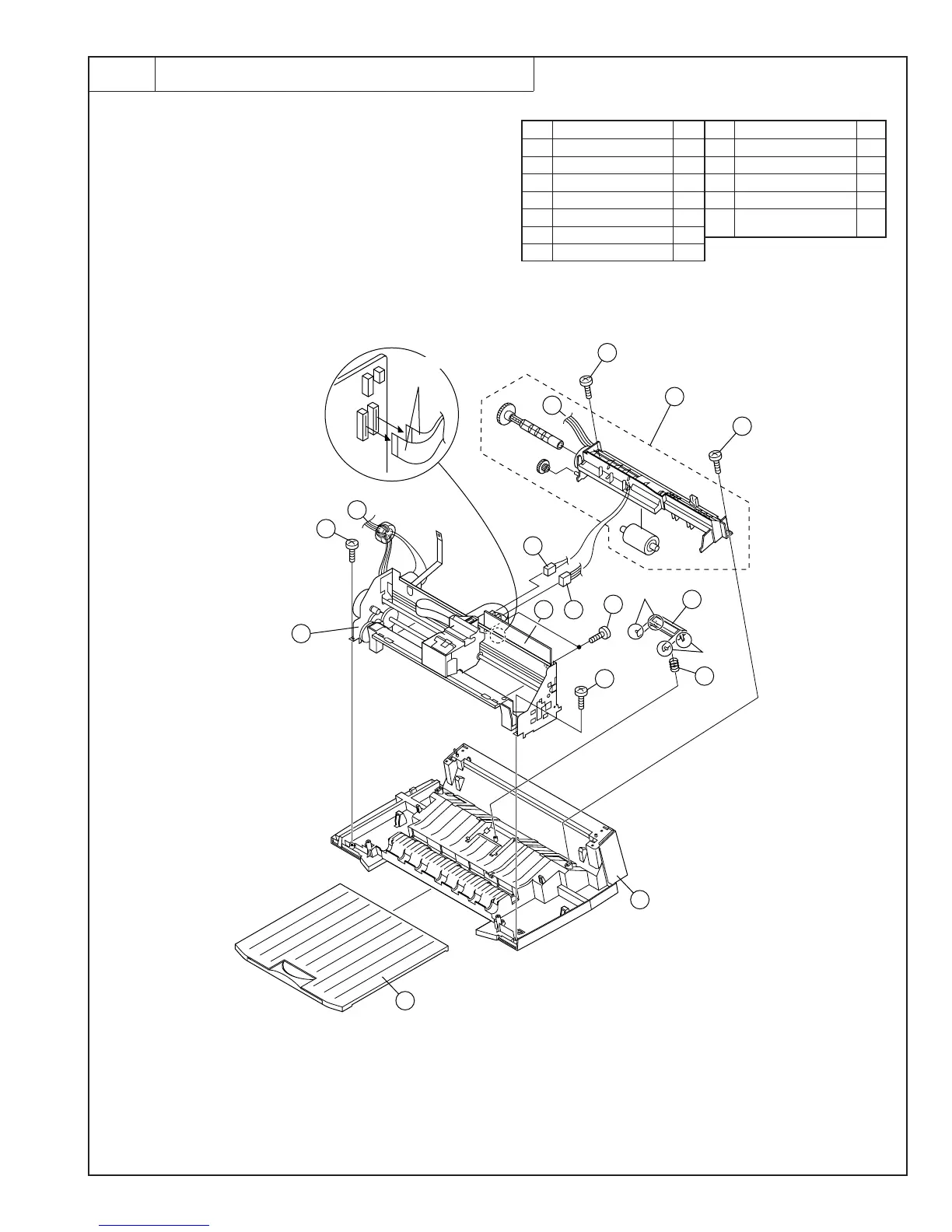

Fig. 6
Printer unit, Bottom cabinet
6
1
2
A
A
1
9
7
5
4
6
3
7
10
Hook
Hook
11
12
8
CNHEAD1/CNHEAD2
cables
Printer unit
Bottom Cabinet
3 – 11
Parts list (Fig. 6)
No. Part name Q’ty No. Part name Q’ty
1 Screw (3×10) 2
2 Pick up holder unit 1
3 CRMT cable 1
4 FDMT cable 1
5 Screw (3×6) 2
6 Printer PWB unit 1
7 Screw (3×10) 2
8 Printer unit 1
9 Separate plate 1
10 Separate spring 1
11 Bottom cabinet 1
12 Exit tray/
1
Extension exit tray
NOTE: For disassembly of the inside of the
unit, refer to the exploded view in the
parts guide.
