UX-B700U
FO-B1600U

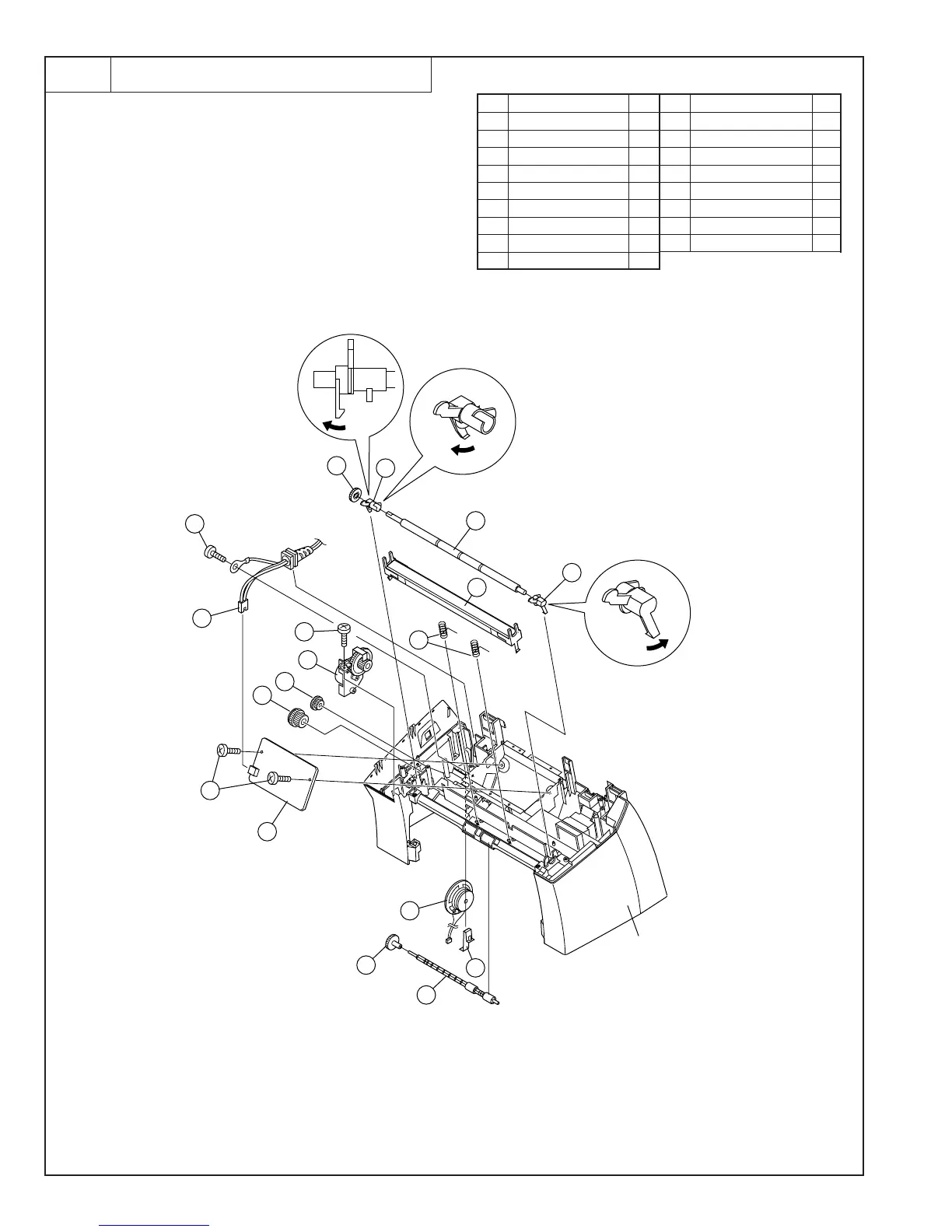

Fig. 5
Upper cabinet
5
4
5
6
11
12
13
14
14
15
16
7
8
9
10
17
3
Upper cabinet
1
2
3 – 10
Parts list (Fig. 5)
No. Part name Q’ty No. Part name Q’ty
1 Speaker hold spring 1
2 Speaker ass’y 1
3 Screw (3×6) 2
4 Screw (4×6) 1
5 AC cord ass’y 1
6 Power supply PWB unit 1
7 Screw (3×10) 1
8 Drive unit 1
9 Reduction gear 21/38Z 1
10 Reduction gear 15/22Z 1
11 Document exit gear 1
12 Exit roller ass’y 1
13 Back gear 1
14 Back bearing 2
15 Back roller 1
16 CIS unit 1
17 CIS spring 2
NOTE: For disassembly of the inside of the
unit, refer to the exploded view in the
parts guide.
To Next Page
