Sharp UX-B700 - Page 47

UX-B700U
FO-B1600U

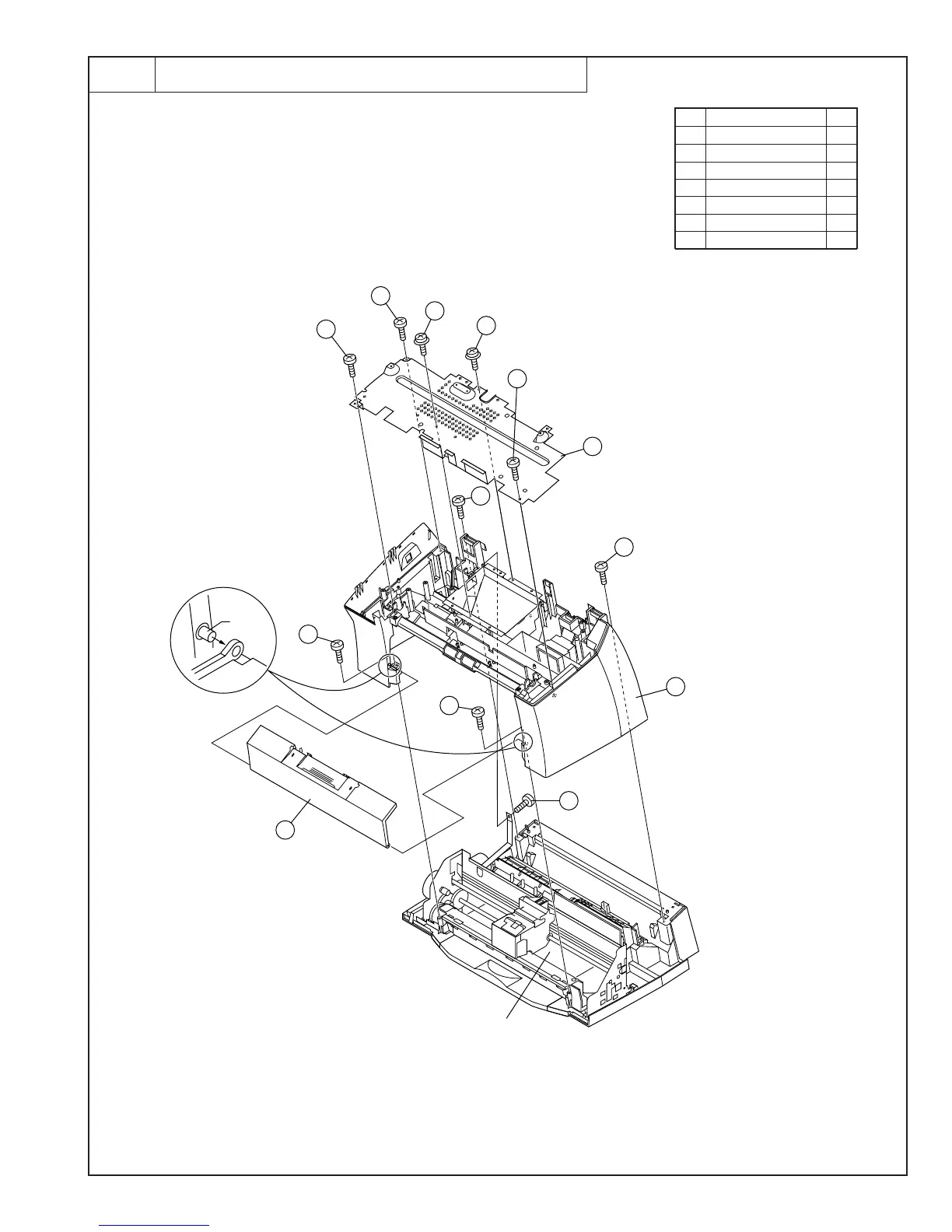

Fig. 4
PWB installation plate, Front cover, Upper cabinet unit
4
3 – 9
3
2
5
5
5
5
7
6
4
Printer unit
2
2
1
1
Boss
PWB installation plate
Upper cabinet unit
Front cover
Parts list (Fig. 4)
No. Part name Q’ty
1 Screw (3×8) 2
2 Screw (3×10) 3
3 PWB installation plate 1
4 Front cover 1
5 Screw (3×10) 4
6 Screw (3×6) 1
7 Upper cabinet unit 1
NOTE: For disassembly of the inside of the
unit, refer to the exploded view in the
parts guide.
