Sharp XV-Z2000 User Manual

-17

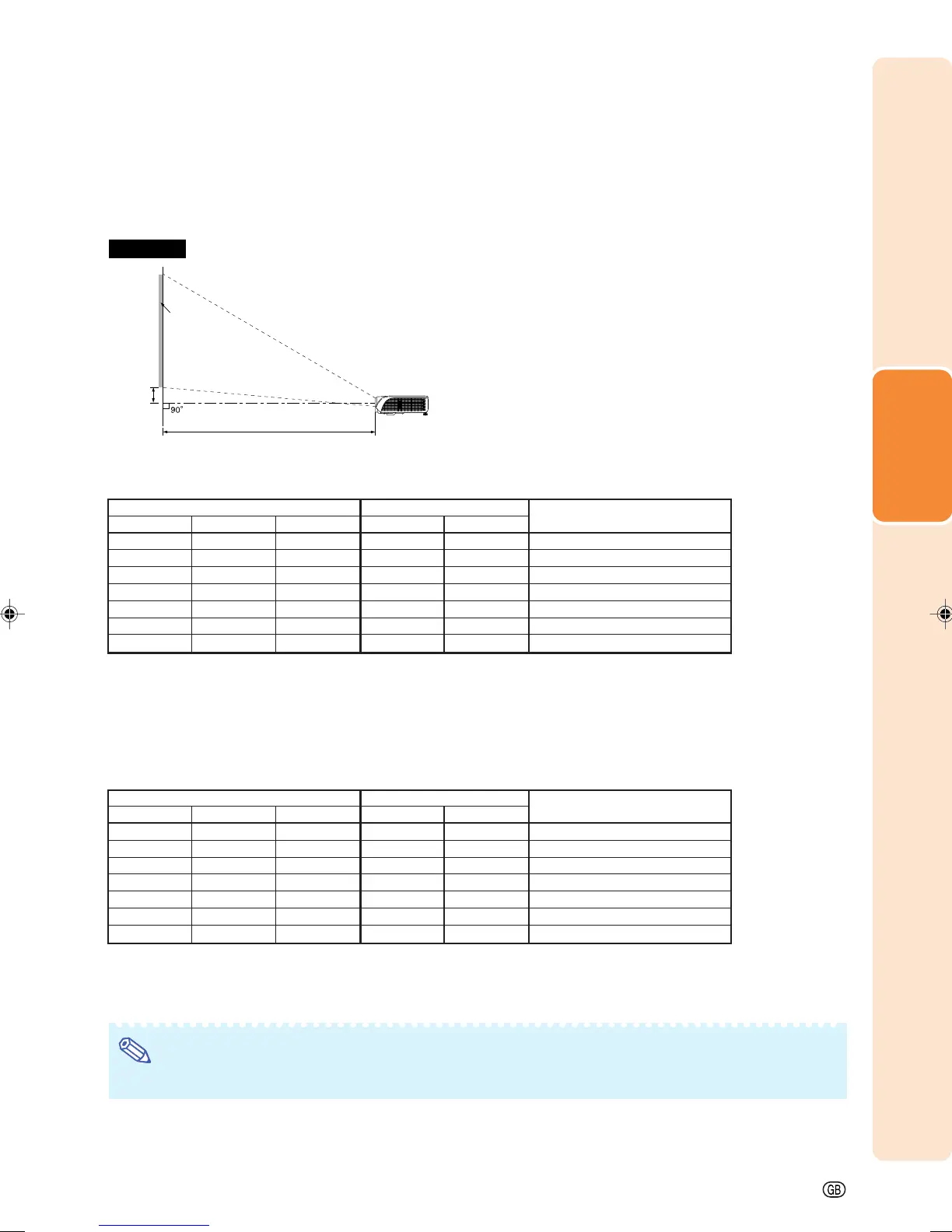

Setup
H
L
Side View
Screen
Lens centre
Screen Size and Projection Distance
The projection screen size varies according to the distance from the lens of the projector to the screen.
Install the projector so that projected images are projected onto the screen at the optimum size by referring
to the table below. Use the values in the table as a reference when installing the projector.
The formula for picture size and projection distance
L1 (m) =
0.02452
χ
–0.05334
L2 (m) = 0.03671
χ
–0.05215
H (cm) = 0.03810
χ
χ
: Picture size (diag.) (inches)
L: Projection distance(m)
L1: Minimum projection distance (m)
L2: Maximum projection distance (m)
H: Distance from the bottom of the image to the lens center (cm)
When using a normal screen (4:3):
In case of setting the 16:9 picture to the full horizontal width of the 4:3 screen.
Note
• There may be an error of ± 3% in the above values.
The formula for picture size and projection distance
L1 (m) = 0.02671
χ
–0.05334
L2 (m) = 0.03999
χ
–0.05215
H (cm) = 0.04151
χ
χ
: Picture size (diag.) (inches)
L: Projection distance(m)
L1: Minimum projection distance (m)
L2: Maximum projection distance (m)
H: Distance from the bottom of the image to the lens center (cm)
When using a wide screen (16:9):
In case of displaying the 16:9 picture on the whole of the 16:9 screen.
Picture (Screen) size Projection distance [L]
Diag. [
χ
] Width Height Minimum [L1] Maximum [L2]
200 4.43 m 2.49 m 5.29 m 7.95 m 8.3 cm
150 3.32 m 1.87 m 3.95 m 5.95 m 6.2 cm
100 2.21 m 1.25 m 2.62 m 3.95 m 4.2 cm
80 1.77 m 1.00 m 2.08 m 3.15 m 3.3 cm
70 1.55 m 0.87 m 1.82 m 2.75 m 2.9 cm
60 1.33 m 0.75 m 1.55 m 2.35 m 2.5 cm
40 0.89 m 0.50 m 1.01 m 1.55 m 1.7 cm
Distance from the bottom of the image to
the lens centre [H]
Picture (Screen) size Projection distance [L]
Diag. [
χ
] Width Height Minimum [L1] Maximum [L2]
200 4.06 m 3.05 m 4.85 m 7.29 m 7.62 cm
150 3.05 m 2.29 m 3.62 m 5.45 m 5.72 cm
100 2.03 m 1.52 m 2.40 m 3.62 m 3.81 cm
80 1.63 m 1.22 m 1.91 m 2.88 m 3.05 cm
70 1.42 m 1.07 m 1.66 m 2.52 m 2.67 cm
60 1.22 m 0.91 m 1.42 m 2.15 m 2.29 cm
40 0.81 m 0.61 m 0.93 m 1.42 m 1.52 cm
Distance from the bottom of the image to
the lens centre [H]
XV-Z2000E_E_P16_18.p65 2004.10.20, 11:51 AM17

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
