Sharp XV-Z2000 User Manual

-18

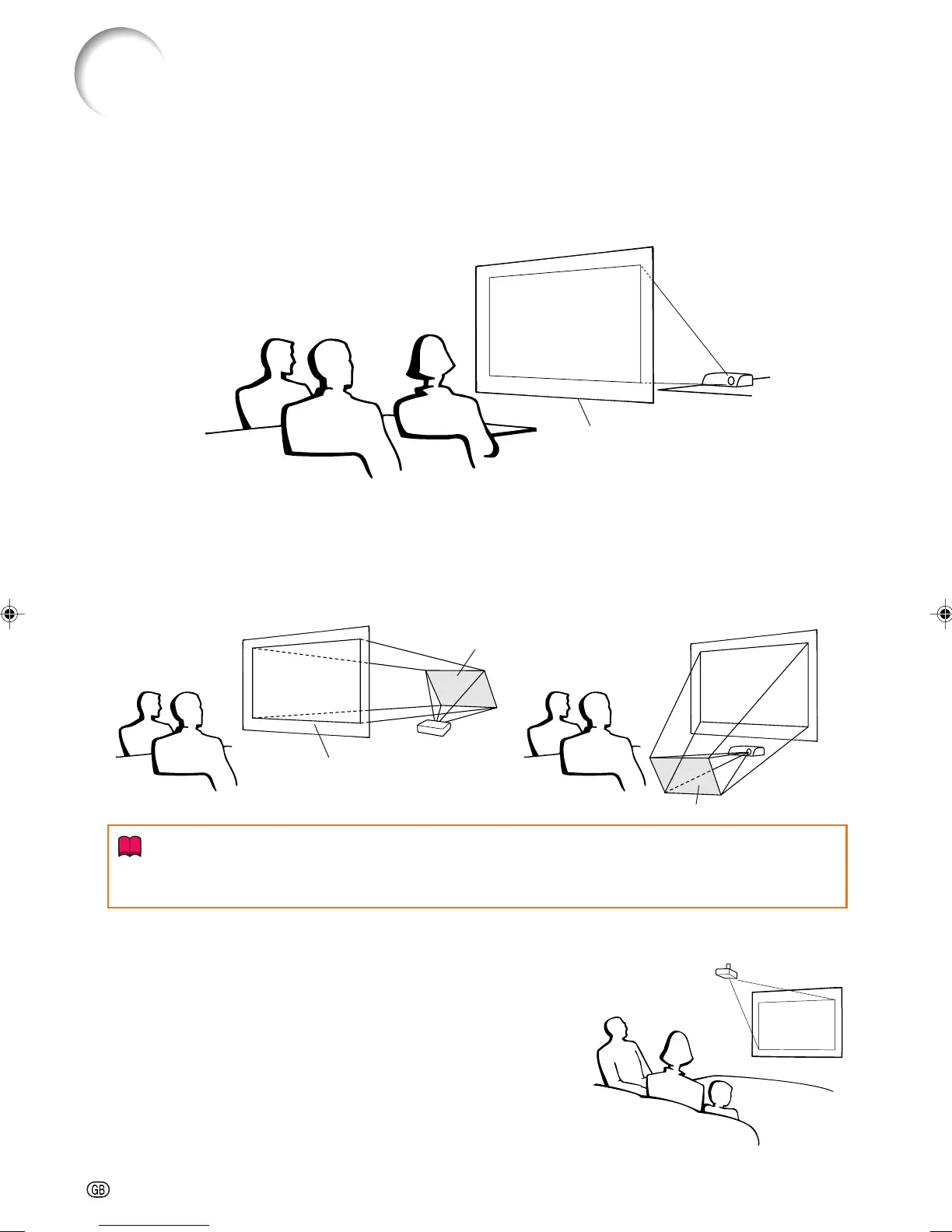

Setting Up the Projector
Projecting a Reversed Image
Projection from behind the Screen
■ Place a translucent screen between the projector and the audience.
■ Reverse the image by setting “Rear” in the “PRJ Mode” menu. (See page 52.)
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed between the mirror and audience, set to “Front” in the “PRJ Mode”
menu. (See page 52.)
■ When the mirror is placed on the audience side, set to “Rear” in the “PRJ Mode” menu. (See page 52.)
Info
• When using a mirror, ensure to carefully position both the projector and the mirror so the light does not
shine into the eyes of the audience.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-mount
bracket for this installation.
■ Before mounting the projector, contact your nearest Sharp
Authorised Projector Dealer or Service Centre to obtain the
recommended ceiling-mount bracket (sold separately). (AN-
TK202 ceiling-mount bracket, AN-TK201 extension tube, AN-
60KT ceiling adaptors for AN-TK202 or AN-TK201)
■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See
page 52 for use of this function.
Translucent screen
Audience
Set to “Front”
Audience
Translucent screen
Mirror
Set to “Rear”
Audience
Mirror
XV-Z2000E_E_P16_18.p65 2004.10.20, 11:51 AM18

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
