-29

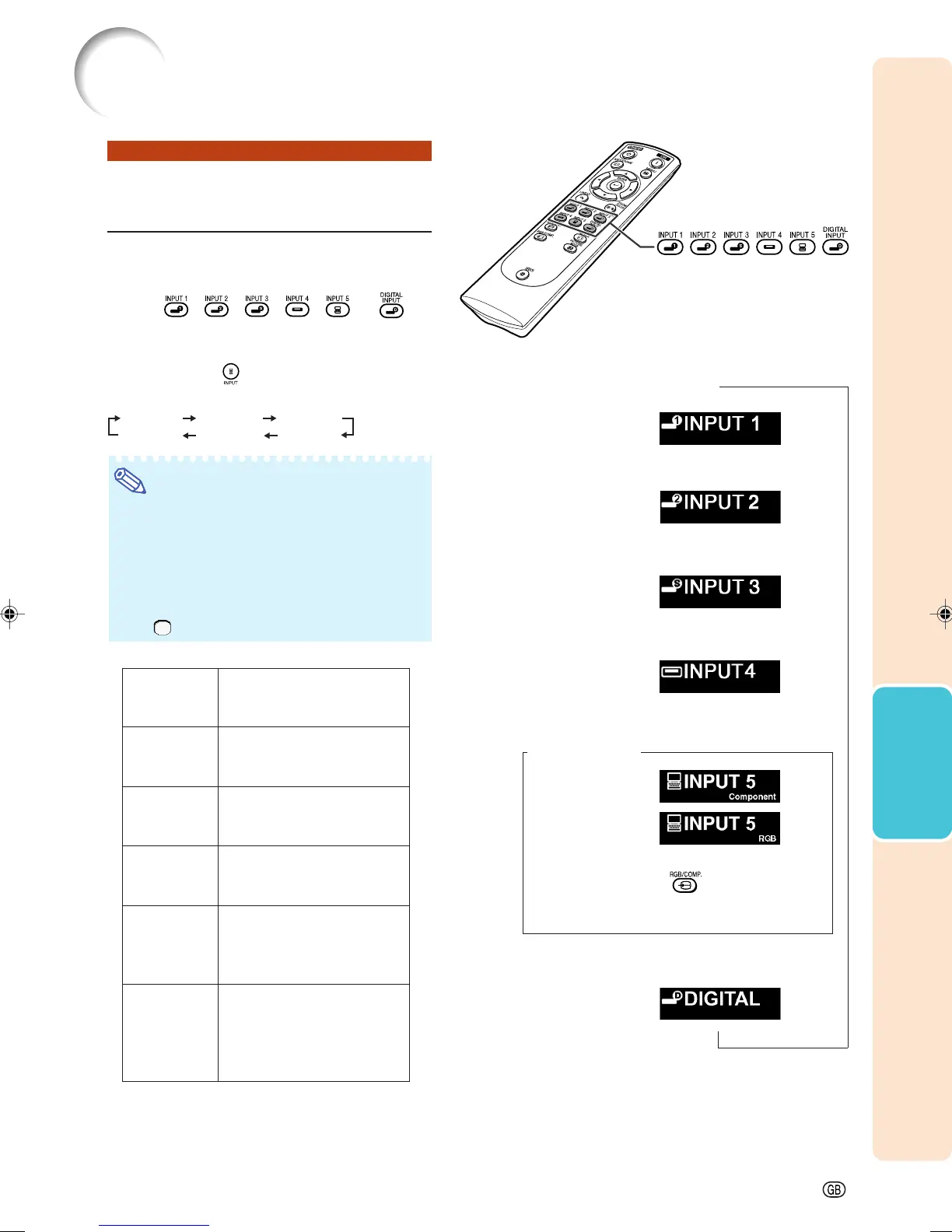

Basic Operation
Image Projection
Switching the INPUT
Mode
Select the appropriate input mode for the con-
nected equipment.
Press , , , , or on
the remote control to select the input
mode.
••
••
• When pressing on the projector, input mode
switches in order of :
INPUT 1 INPUT 2 INPUT 3
INPUT 5 INPUT 4
DIGITAL
Note
• When no signal is received, “NO SIGNAL”
will be displayed. When a signal that the
projector is not preset to receive is received,
“NOT REG.” will be displayed.
• The INPUT mode is not displayed when
“OSD Display” of the “Options” menu is set
to “
(OFF)”. (See page 47.)
About the INPUT mode
"On-screen Display of INPUT Mode (Example)
➝
INPUT 1, 2, 3, 4, 5 and
DIGITAL INPUT button
➝➝
Used for projecting images
from equipment connected
to INPUT 1 terminals.
Used for projecting images
from equipment connected
to INPUT 2 terminal.
Used for projecting images
from equipment connected
to INPUT 3 terminal.
Used for projecting images
from equipment connected
to INPUT 4 terminal.
Used for projecting
images from equipment
connected to INPUT 5
terminal.
Used for projecting
images from equipment
with DVI or RGB output
terminal connected to
INPUT 5 terminal.
INPUT 1
(Component)
INPUT 2
(Component)
INPUT 3
(S-Video)
INPUT 4
(Video)
INPUT 5
(Component/
RGB)
DIGITAL
INPUT 1 mode
Using
Component
INPUT 2 mode
Using
Component
INPUT 3 mode
Using S-Video
INPUT 4 mode
Using Video
INPUT 5 mode
Component
RGB
• When switching the component and RGB
input mode, press
on the remote
control or select “Signal Type” in the “Op-
tions” menu.
➝➝
DIGITAL mode
➝
XV-Z2000E_E_P28_35.p65 2004.10.20, 11:52 AM29
