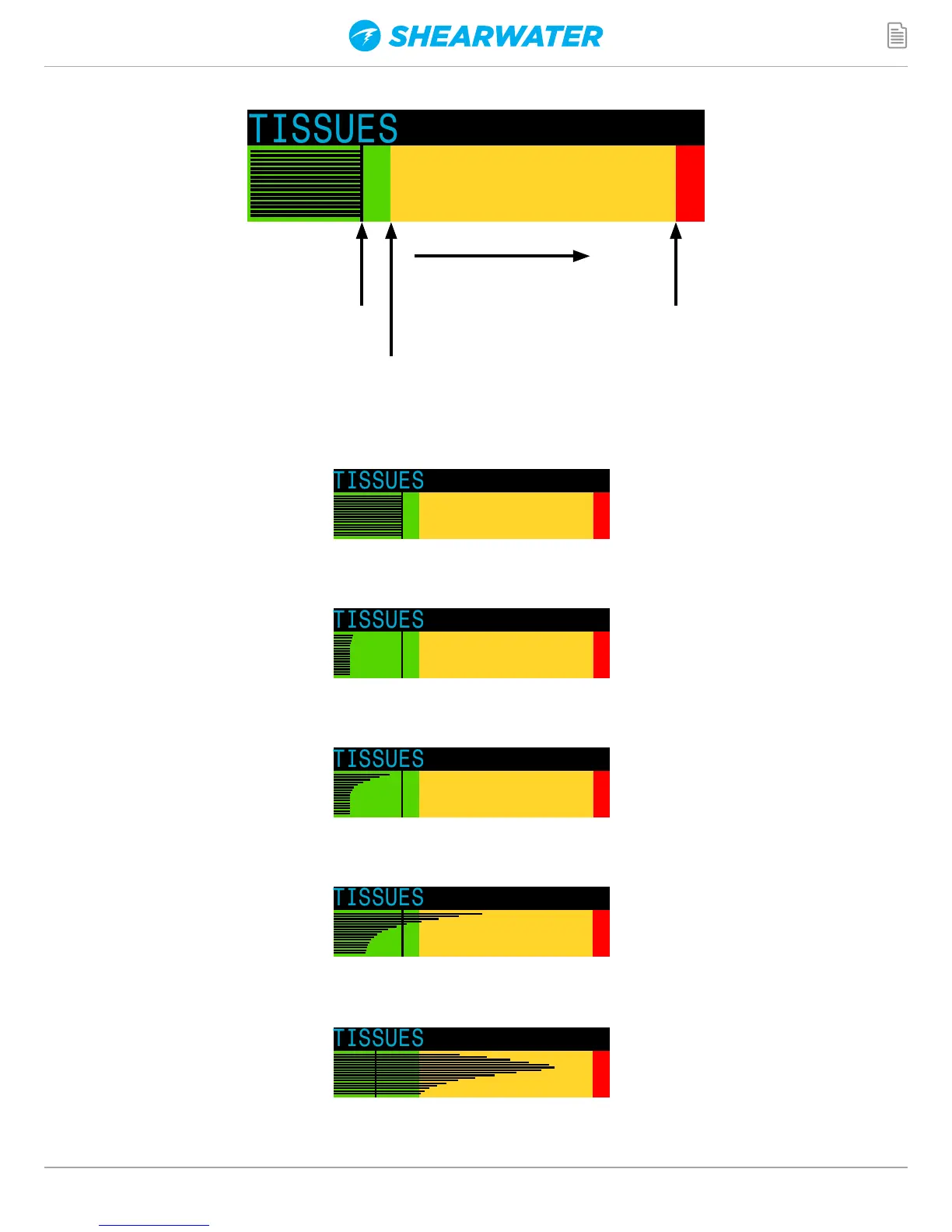

TISSUES
Ambient
pressure
Increasing pressure
M-Value
pressure
Inspired inert
gas pressure
16 tissue
compartments
TISSUES
TISSUES
TISSUES
TISSUES
TISSUES
On surface (sat. with air)
Note: Gas is 79% N
2
(21% O
2
, or Air)
After descent
On-gassing
Last deco stop
Note: Gas is now 50% O
2
and 50% N
2
Sample Tissues Graphs
Deep stop
{
