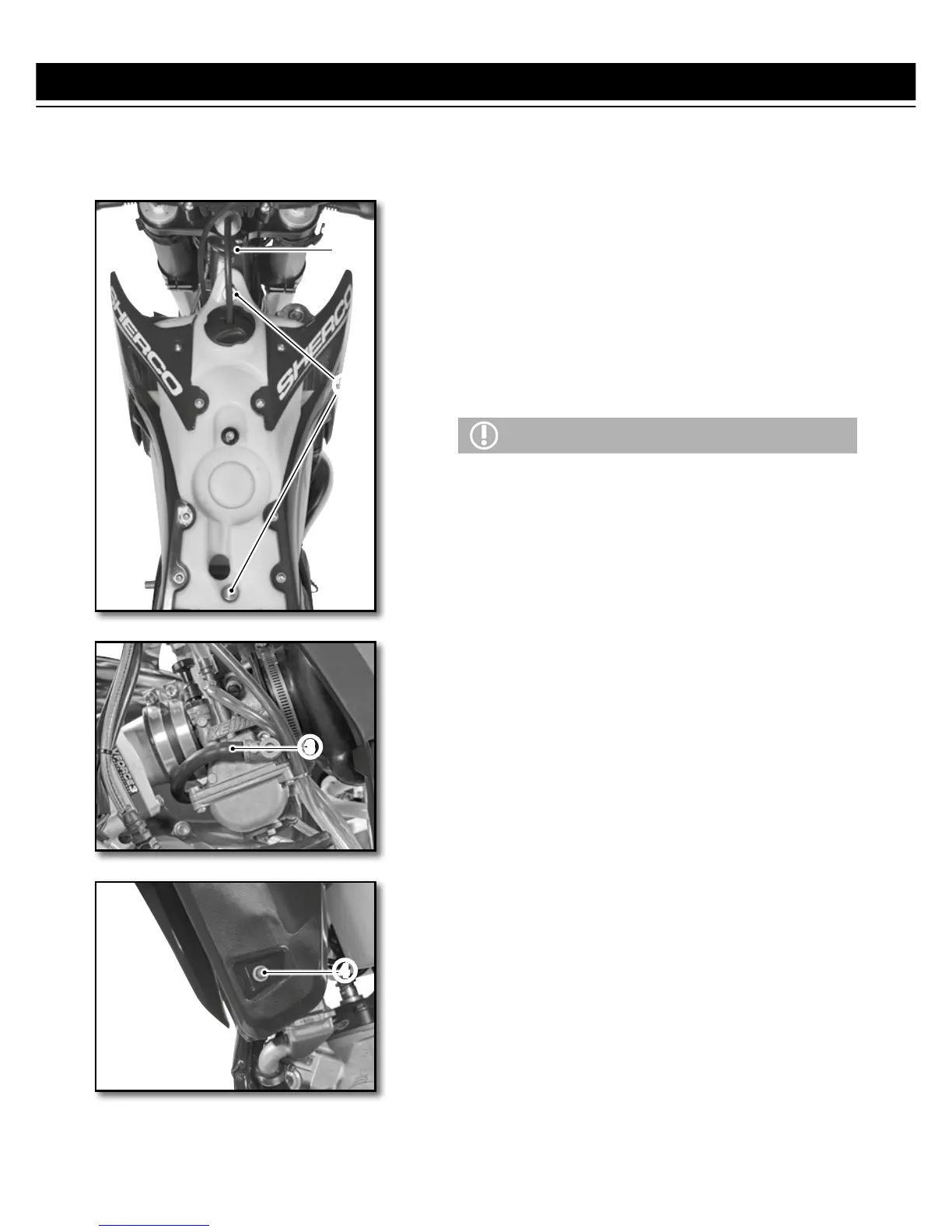

Chassis maintenance (continued)
Remove the seat (
☛
p.100)
Unscrew the fuel tank fixing screws
1
.
Remove the hose that attaches to the fork
crown
2
Disconnect the fuel pump electrical
connector
3
.
Remove the fuel hose by pressing the connector
4
and pulling on the hose
5
.
ATTENTION
Attention, there is a risk of spraying fuel. do not put
your face near the fuel line exit.
Prevent ingress of dirt in the gasoline fuel line.
This can lead to a seizure of the injector.
Unscrew the screws
6
don the right and left
radiator grill.
Remove the fuel tank by pulling upwards, provide
lateral clearance by slightly moving the radiator
grills. Use caution when removing the fuel tank
and do not damage any of the fuel hoses or
electrical connections.
REMOVING THE FUEL TANK
102
