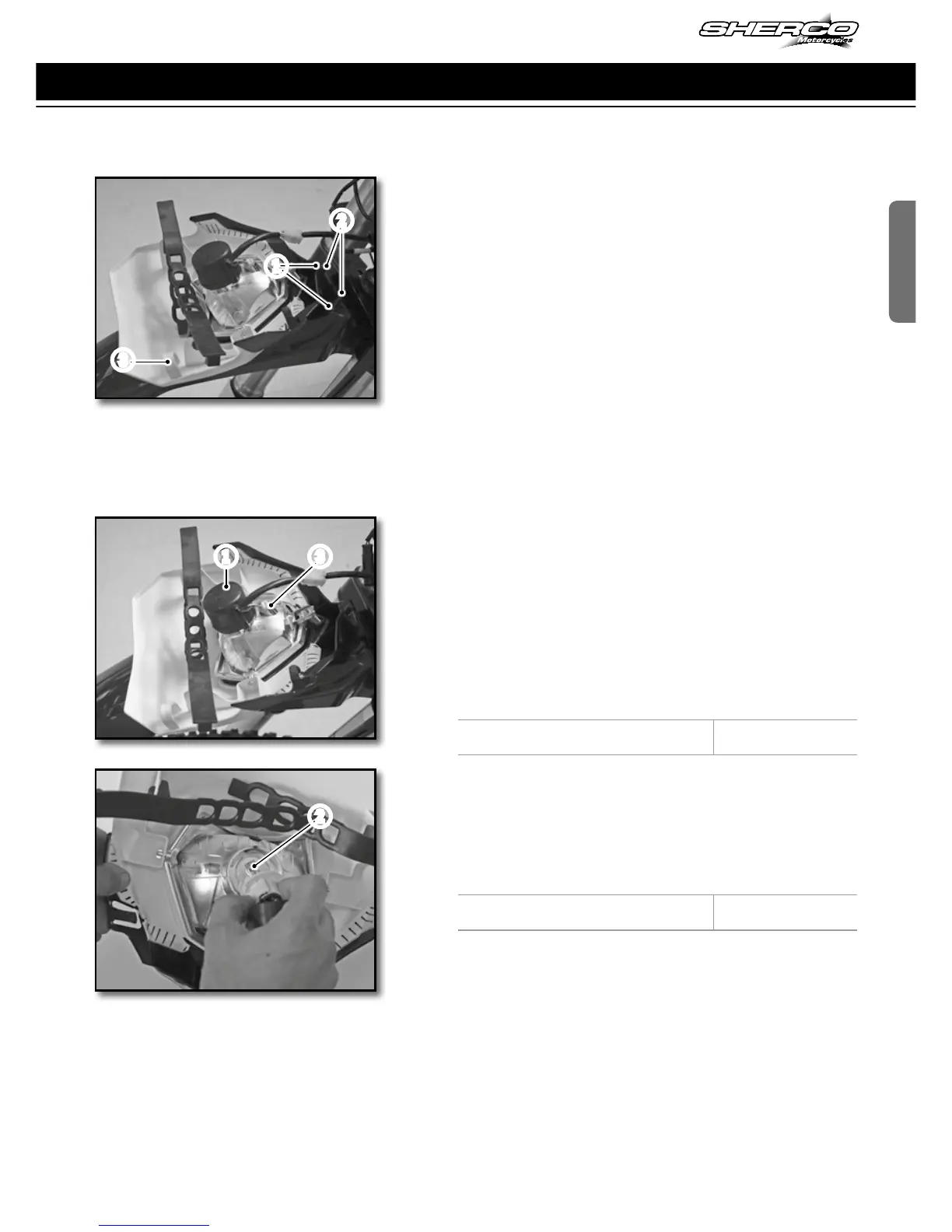

Connect the electrical connector.
Engage the light plate, ensuring that the holes in
the plate
1
are in place
2
.
Place all of the brake hoses / cables in the inte-
rior of meter upper guide
3
.
Attach the rubber fastners.
Check the setting of headlight beam. (
☛
p.122)
REINSTALLING THE HEADLIGHT HOUSING
Remove the headlight housing assembly
(
☛
p.120)
Remove the protective rubber
1
Turn the socket a quarter turn counterclockwise
to remove it from the headlight assembly.
Gently press the bulb in while turning it counter-
clockwise and remove it from the socket.
Install a new bulb
2
.
Headlight bulb S2 12V 35/35W S2
Reinstall the socket with the bulb in the headlight
assembly by turning it in a clockwise direction.
Reinstall the protective rubber.
To replace the pilot light
3
simply remove the
socket from the reflector
2
.
Pilot light W5W 12V 5W
Reinstall the headlight housing assembly
(
☛
p.121)
REPLACING THE HEADLIGHT BULB OR THE PILOT LAMP
121
