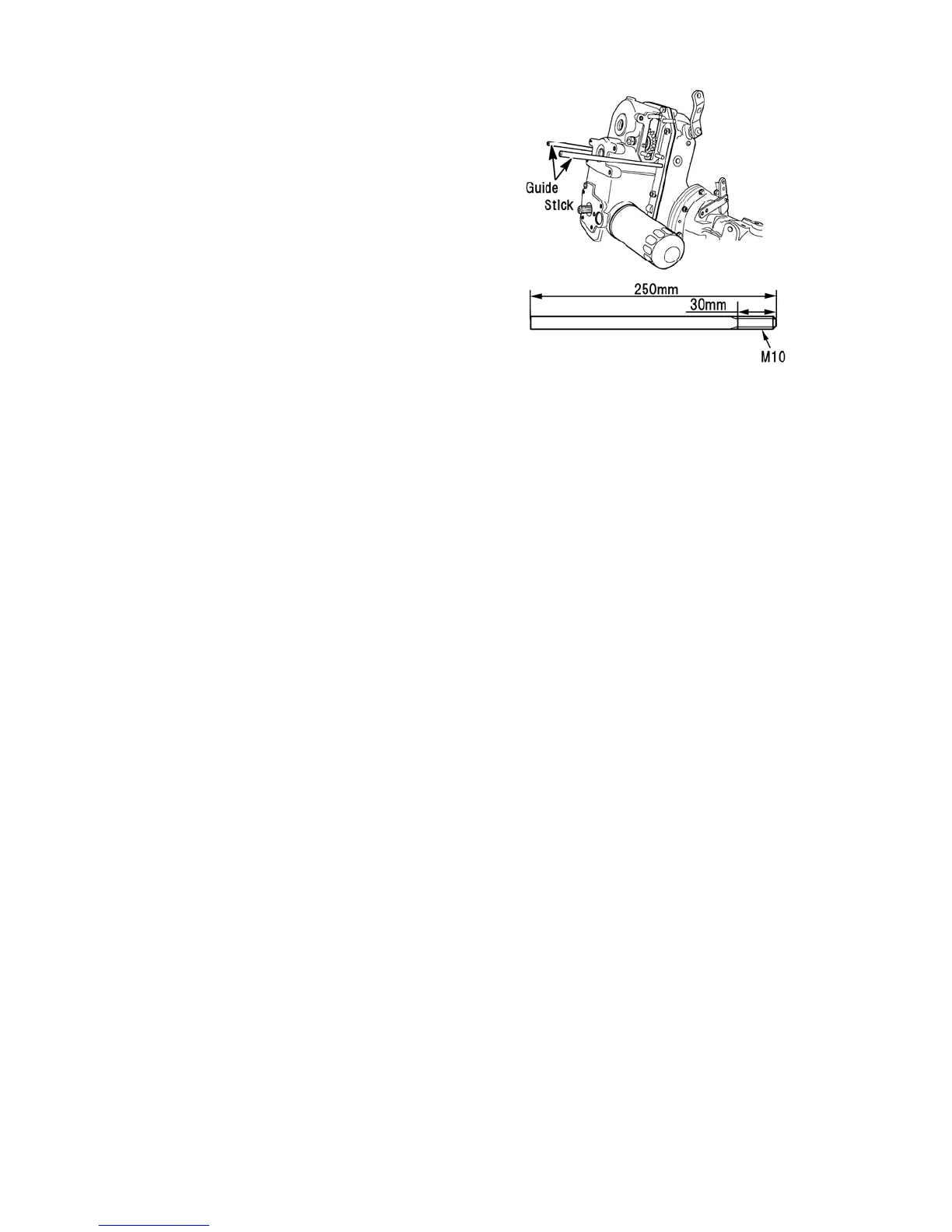

12. Install the guide stick (special tool) to the transmission
housing, and align the each part as follows while
sliding the rear transmission housing.
● Align the drive pinion shaft and center to 4WD
one way clutch center.
● Align the PTO clutch sepatater plates with
coupling of rear transmission housing.
● Align the fixed gear on the drive pinion shaft and
fixed gear on the range counter shaft while
rotating the mainshaft.
344X
