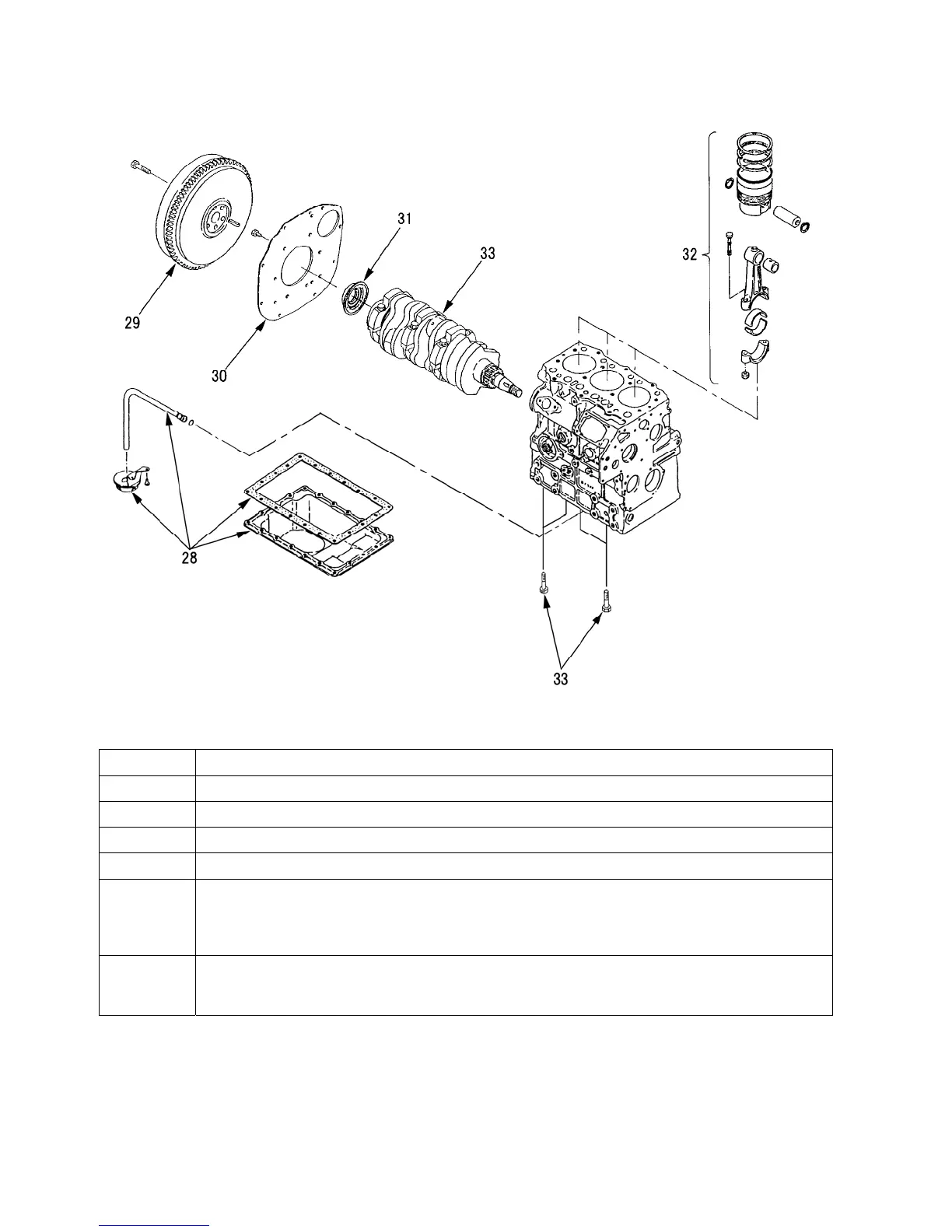

Order Disassemble Parts Name
28 Oil pan · Gasket · Suction filter · Suction pipe
29 Fly wheel
30 Rear plate
31 Oil seal
32 Piston and connecting rod assembly
NOTE:
1. Before extracting piston, remove the carbon deposit from the TDC in the cylinder.
2. Place the connecting rod, cap and bearing removed in order of the cylinders.
33 Crank shaft and bearing holder assembly
NOTE: Remove the four bolts, and draw out the crank shaft and bearing holder assembly as a
set.
