25

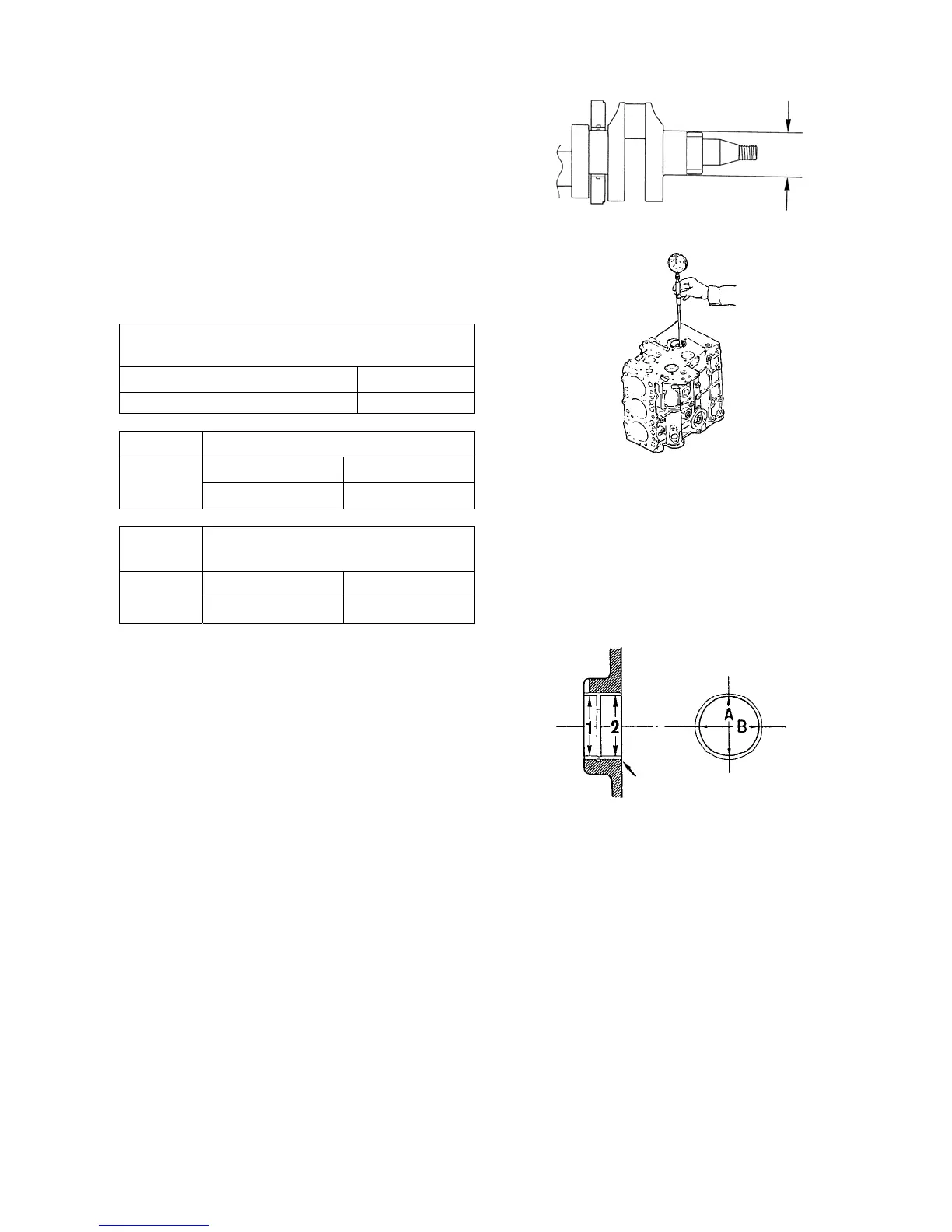

8) Crankshaft bearing (bush)
Inspection
(1) Check the bearing (bush) and replace if peeling,
melting, uneven wear, improper contact, or other
damage is notice.
(2) Measure the oil clearance of the bearing (bush) and
crankshaft journal using a cylinder gauge and
micrometer.
(3) If the oil clearance exceeds the service limit
according to the result of measurement, replace the
bearing (bush) or/and crank shaft.
Clearance between crankshaft journal and bearing (bush)
(oil clearance) (mm)
Standard assembling value Service limit
.
–
.
.
Bush size Bush code No.
S.T.D.
J843 N843L
198517190 198517220
036X
037X
Bush size
Crankshaft journal outside dia. Finishing
dimension (φ)
S.T.D.
J843 N843L
57.957 – 57.970 67.957 – 67.970
NOTE:
1. Measure the dimensions in the A and B directions
at the position 1 and 2 in the right figure avoiding
the oil hole of the bearing (bush) and calculate
difference from the maximum value of the
crankshaft journal (oil clearance).
2. When replacing the bush, push it up using a
press or the like. At this time, align the oil holes
and push it up until the bush end surface
becomes level with the outside machined surface
of the cylinder block (see the arrow mark in the
right figure).
038X
