43
20. Cylinder head ass’y

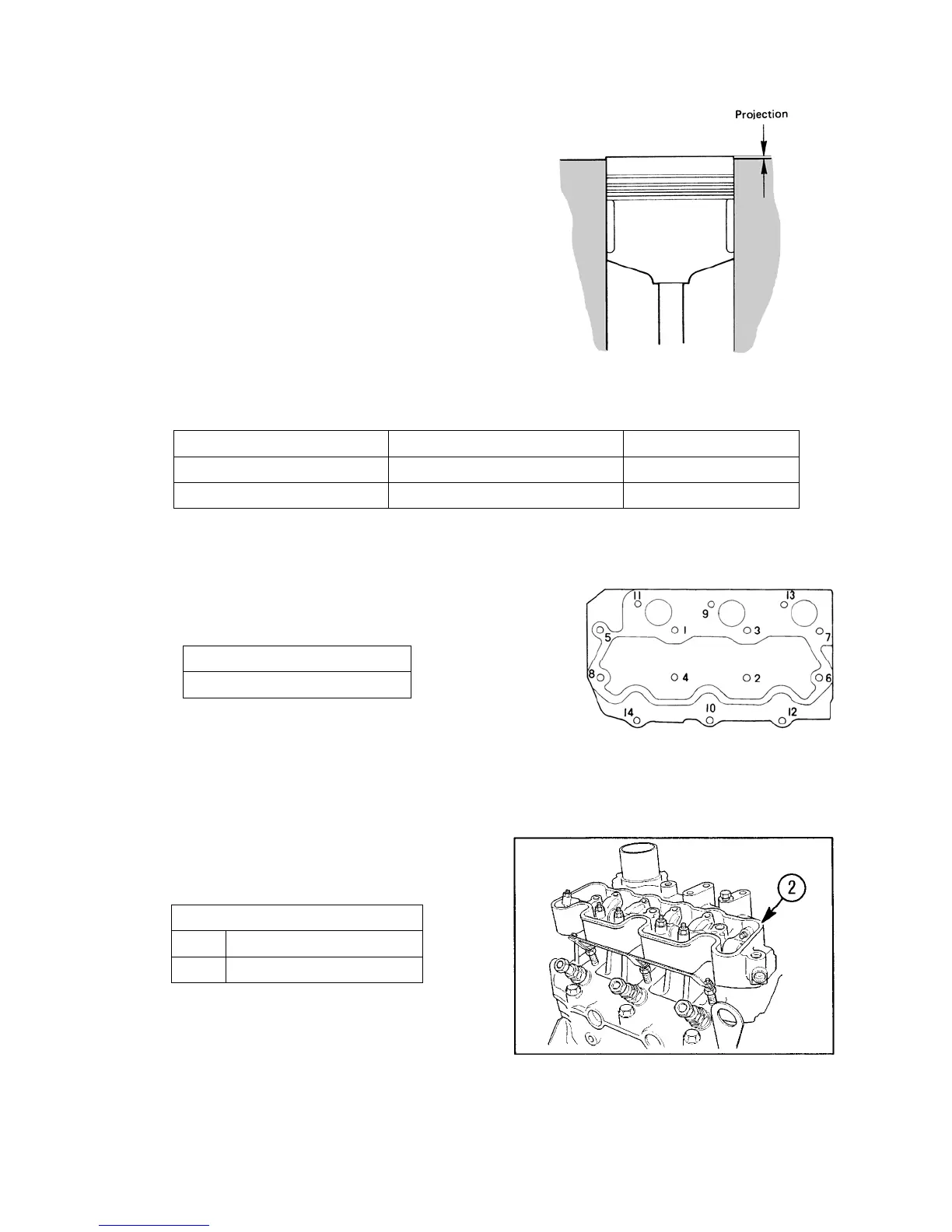

① Set the piston at the TDC and measure the injection
beyond the cylinder block with a depth gauge or
dial gauge.
NOTE:
1. Measure holding the piston lightly by hand.
2. Use the cylinder with the largest projection
distance among the 3 cylinders as the reference.
The variation of the projection should be within
0.1 mm.
② Select a head gasket according to the measured
value.
078X
Measured value (mm) Head gasket part code No. Thickness when tightened
More than 0.6 – under 0.7 111147490 t = 1.3
More than 0.7 – less than 0.8 111147500 t = 1.4
NOTE: Four smallest digits of the part code No. are stamped on the top surface of the head gasket.
③ Tighten the cylinder head in several steps in the
order as shown in the right figure and tighten with
the specified torque finally.
Cylinder head tightening torque
98 – 103 N·m {10 – 10.5 kgf·m}
NOTE:
1. Take care to the spring pin which positions the
cylinder head ass’y.
2. Coat the thread with grease containing disulfide
molybdenum.
21. Cap · Push rod · Rocker arm ass’y
① Install the cap to the valve steam end.
② Install the push rod and rocker arm ass’y.
Rocker arm ass’y tightening torque
J843 20 – 25 N·m {2.0 – 2.5 kgf·m}
N843L 27 – 39 N·m {2.8 – 4.0 kgf·m}
079X
080X
