55
④ Slide yoke (9) away from front bracket (10).
⑤ Remove armature (11) and ball (12).
Do not lose ball when removing the armature.
⑥ Remove rubber cover (13) from planetary gear
assembly (23) and remove lever packing (14) and
plate (15).
⑦ Remove planetary gears (16).
Remove gear shaft/overrunning clutch assembly
(18) and lever (19) as a unit from front bracket (10).
⑧ To remove overrunning clutch (18).
a. Remove plastic cap (20). If the cap is too badly
distorted or cracked, it will be necessary to use a
new one on reassembly.

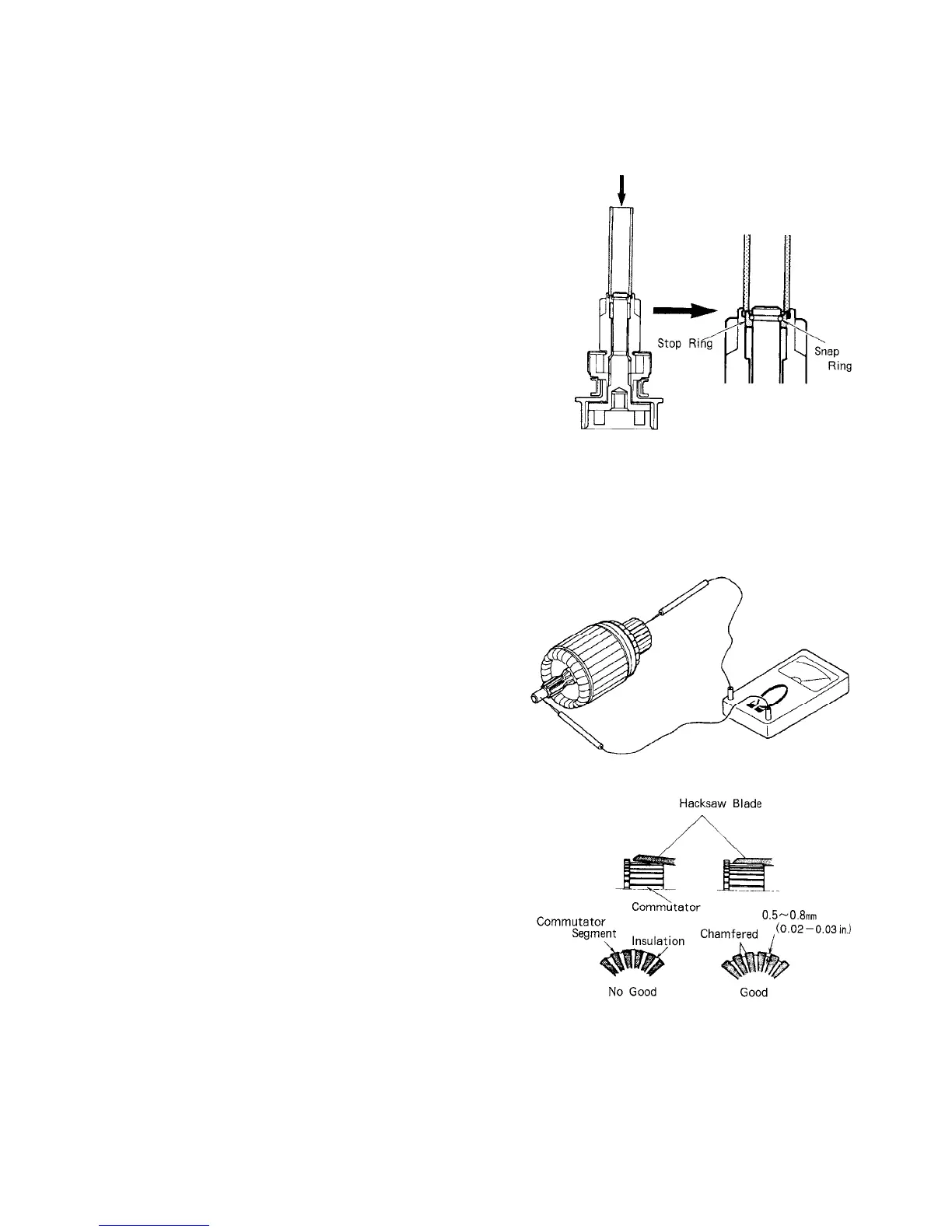

b. Slide a piece of pipe of suitable size over shaft
against stop ring (21).
Then tap the pipe with a hammer to remove the
stop ring and expose snap ring (22).
Remove the pipe from the shaft.
c. Remove the snap ring and the stop ring and
separate the over running clutch (18) from the
gear shaft (17).
If the snap ring is distorted, it will be necessary
to use a new one on reassembly.
3) Inspections
(1) Armature
① Inspect the armature coil for short-circuit with a
growler tester.
Replace armature if shorted.
② Inspect armature coil for ground with a circuit
tester.
Replace grounded armature.
③ Inspect commutator for wear. If below the limit,
replace armature.
④ Inspect commutator for insulator depth.
Correct if below the limit.
⑤ Check gear teeth for wear or damage, and replace
armature as necessary.
105X
106X
107X
