Starting Motor (For Engine Model N843L:CM364)
1) Specifications and Performance
Part code No. 185086530 Pinion ejecting voltage (V) Less than 8
Type RA (228000-5121)
Unloaded
Terminal voltage (V) 11.5
Continuous operation (second) 30 Current (A) Less than 100
Output (V-kW) 12 – 2.0 Speed (rpm) More than 4000
Rotating direction
(viewed from pinion)
Clockwise
Loaded
Terminal voltage (V) 7.6
Current (A) Less than 400
Clutch type Overrunning
Torque N·m {kgf·m} More than 16.7 {1.7}
Engaging type Magnetic shift
2) General Description
The newly developed reduction starter is a positive shift type starter and consists of the motor, reduction gear, overrunning
clutch and pinion magnetic switch.

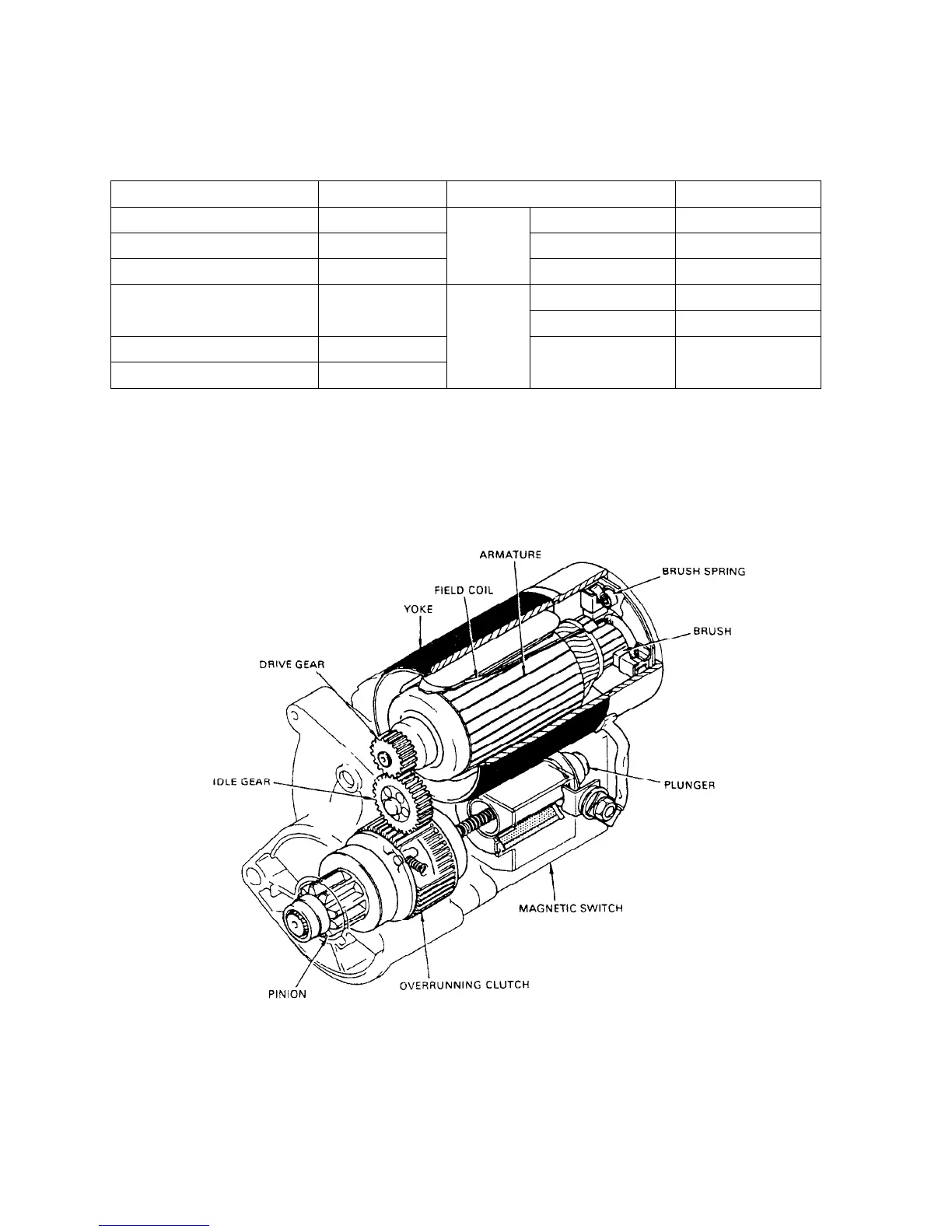

The magnetic switch and sliding pinion mechanism are arranged on the same axis as shown below.
3) Structure
113X
