Application parameter group

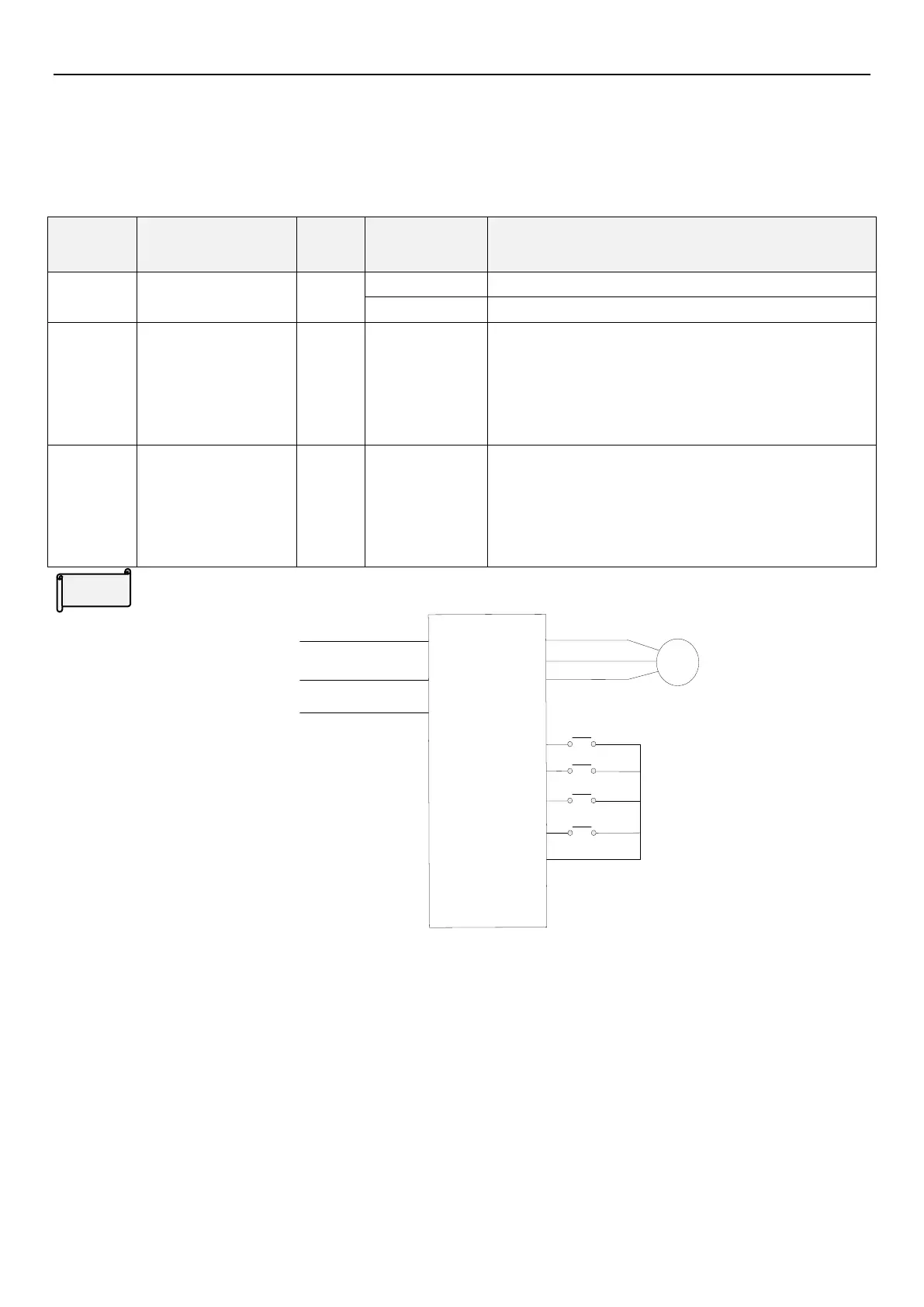

PARAMETER DESCRIPTION 156
5.10.11 Reciprocating engine function
 The inverter contains control function for switching between the commercial power supply operation andinverter
operations. Therefore, interlock operation of the magnetic contactor for switching can be easily performed
bysimply inputting start, stop, and automatic switching selection signals.
Parameter
Name
Factory
Value
Setting Range
Content
10-55
P.226
Reciprocating
mechanical function
0
0
Reciprocating mechanical function is invalid
1
Reciprocating mechanical function effectively
10-56
P.227
Forward limit of time
0.0s
0～3600.0s
When the inverter keeps running in FWD mode and its
running time is longer than the setting value of 0.-56, the
motor speed will decrease to zero and the inverter will be
powered off. This function is invalid when the setting value is
zero.
10-57
P.228
Reverse time limited
0.0s
0～3600.0s
When the inverter keeps running in FWD mode and its
running time is longer than the setting value of 10-57,the
motor speed will decrease to zero and the inverter will be
powered off. This function is invalid when the setting value is
zero.
Reciprocating engine function
SD
STF
STR
M
1
M
0
R
S
AC
~
380
V
U
V
W
󱪪󰲯
T
Starting button
Stop button
The left travel
switch
The right travel
switch
K1
K3
K2
K4
System wiring diagram

Please connect the wire as the figure shown above.Place a travel switch between M1 and SD place impulse type
switch between STF and SD and between STR and SD also.

Power on the inverter and execute parameter P998.After finish set P226 to 1 and choose reciprocating machinery
system.Set multi-functional terminator as its default value, if the target frequency was coming from external
terminals,M0,M1 terminal will influence the target frequency therefore P5, P6 should be set as the same value with
target frequency.

When K3 （K4）is open, press K1 and rotate forward to K3,then rotate reverse to K4 and rotate forward again.
Press K2 to shut down the system.
Setting
