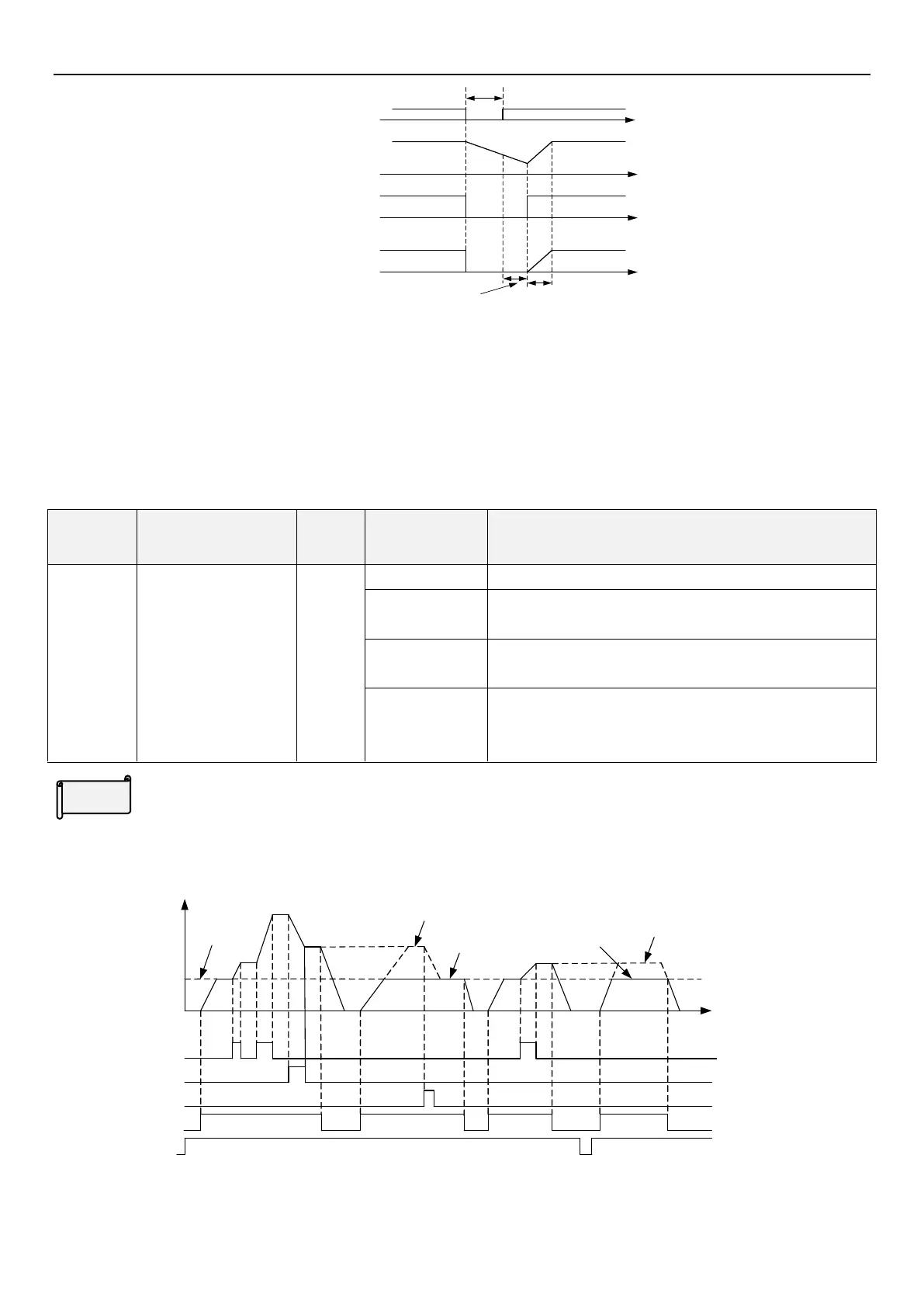

Application parameter group10
PARAMETER DESCRIPTION 149
Instantaneous (power failure) time
Power supply
(R/L1S/L2T/L3)
Motor speed N
(r/min)
Inverter output
frequency f (Hz)
Inverter output
voltage E (v)
Restart cushion time
P.58 setting
Coasting time
P.57setting
*
* The output shut off timing differs
according to the load condtion
5.10.5 Remote setting function selection
 If the operation box is located away from the control box, one can use contact signals to perform variable-speed
operation without using analog signals
Parameter
Name
Factory
Value
Setting Range
Content
10-11
P.61
Remote setting
function selection
0
0
No remote setting function.
1
Remote setting function, frequency setup storage is
available.
2
Remote setting function, frequency setup storage is not
available.
3
Remote setting function, frequency setup storage is not
available; the remote setting frequency is cleared by
STF/STR “turn off”.
Remote setting function

If the operation box is located away from the control box, one can use contact signals to perform variable-speed
operation without using analog signals under the external mode, combined mode 1 and combined mode 5.
Acceleration(RH)
Deceleration (RM)
Clear (RL)
Forward
rotation(STF)
ON
ON
ON
ON ON ON
ON ON
ON
P. 61

1
P. 61

3
P. 61

2

3
P. 61

1

2
Power supply
Output
frequency
(Hz)
0
Time
*
*external target frequency (except multi-speed) or PU target frequency
 Remote setting function
Setting
