Chapter 2 Outline
Mobile DaRt Installation Manual
2-2
2.1 Name of Each Part of the Unit

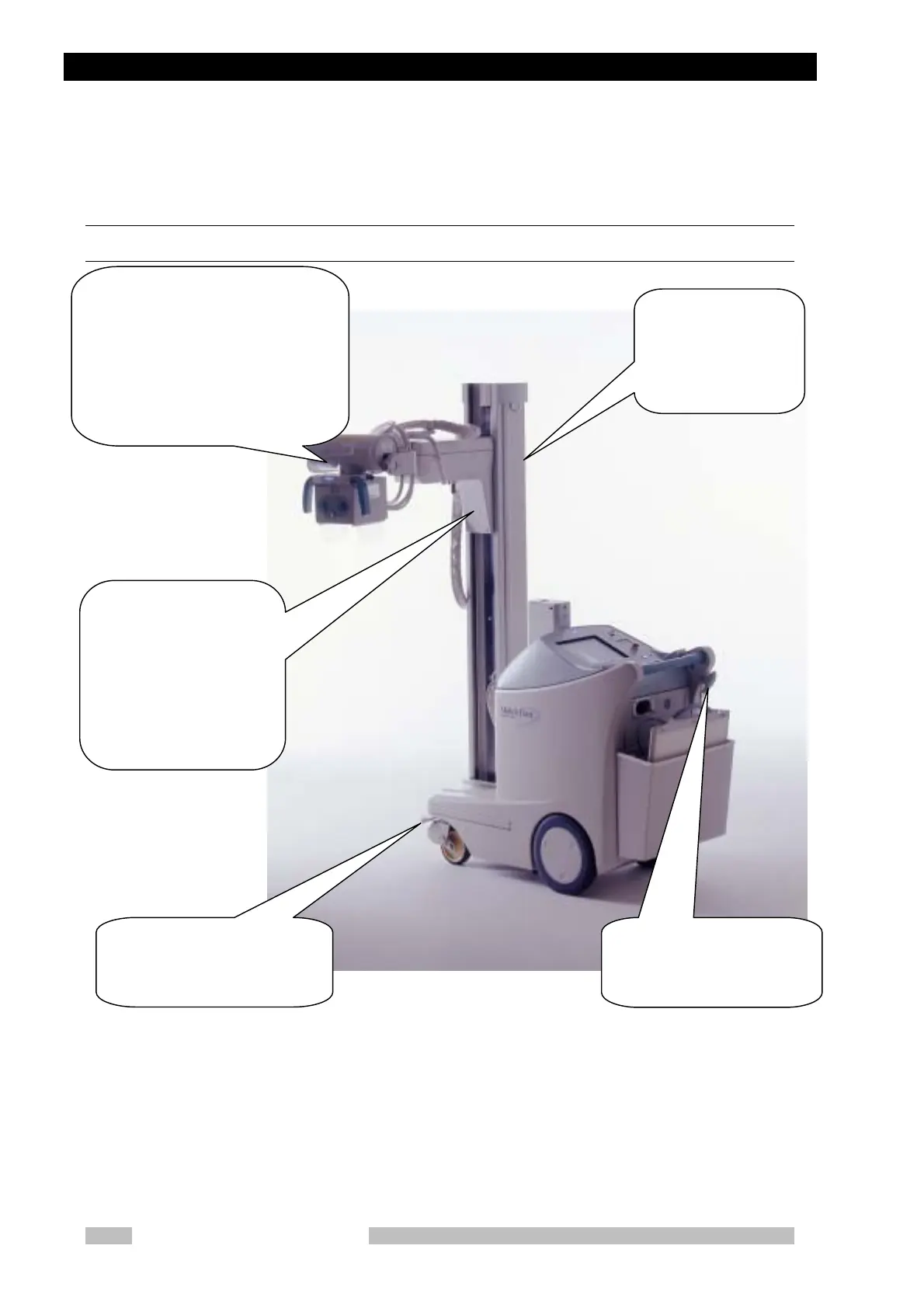

Appearance
Arm section:
Holds the tube section. It
can slide vertically on the
support stand and the ar
itself can stretch in the
horizontal direction.
X-ray tube unit:
The combination of X-ray tube and
collimator can turn around the axis of
X-ray focus. This makes positioning
and adjustment of the irradiation field
and small movement of the unit.
Hand switch:
The switch to make X-ra
exposures
Support Stand:
Holds the tube section
and arm. It can tur
itself.
Bumper switch section:
Stops the unit in the event of a
collision.
