Appendix E Maintenance and Inspection
Mobile DaRt Installation Manual
E-viii
E.4 Collimator lamp Replacement
Collimator lamp replacement
Parts Number of the Collimator lamp is 062-65003-02.
Wait for 10 minute after ternning off the collimator lamp. There is dread
of the burn.
Procedures of replacement for the collimator lamp.
1. Turn the key switch off.
2. Remove the lamp cover with the 4 screws.
3. Remove the lamp screened cover with 2 screws
4. Change the lamp.
5. Reinstall these covers.
Do NOT tatch to part of the quortz. If part of the quortz was made dirty, clean
it up by using alchol. Finger print or oily dirt may causes dimness of the
quortz bulb.

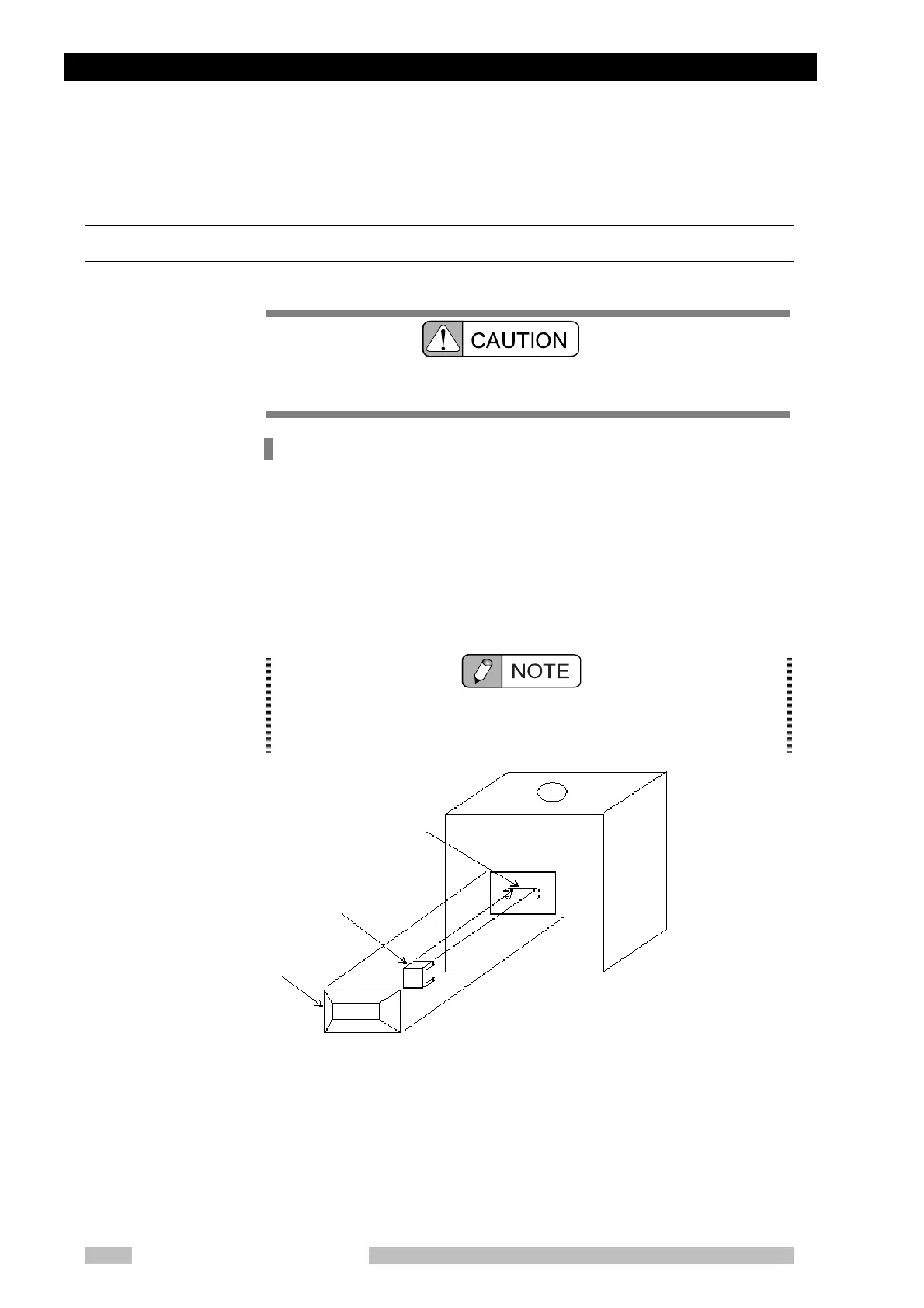

Fig. 3 Exchanging the collimator lamp
Collimator
lamp
Lamp screene
cover
Lamp cover
NOTE
CAUTION
