4.12 Calibration
Mobile DaRt Installation Manual
4-37

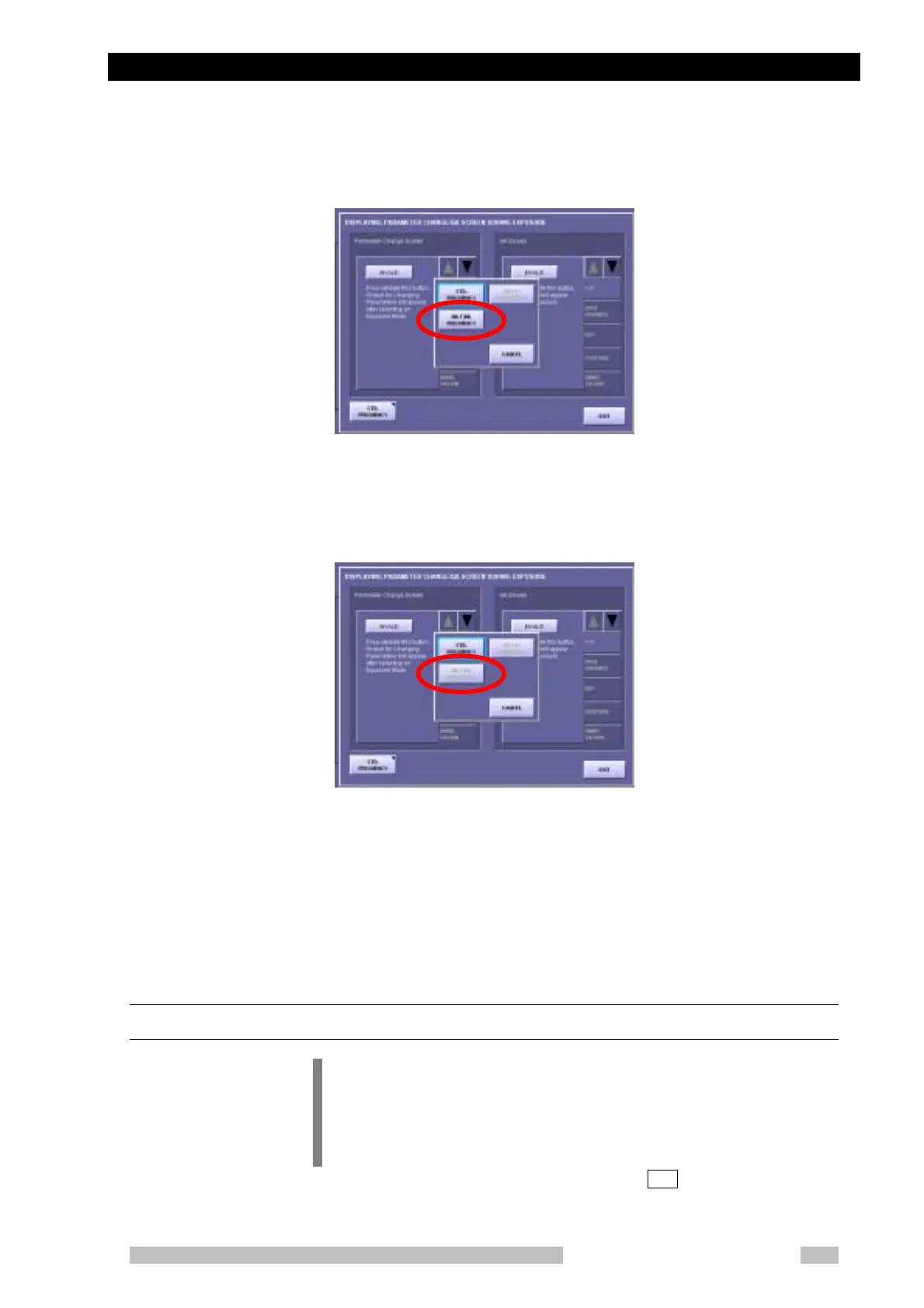

6. "Processing selection" screen is displayed. It is confirmed that MLT(M)
FREQUENCY is active.
Fig. 4-69
7. When the installation of MLT-M is failed, it becomes a display as shown in
Fig. 4-70.
Fig. 4-70
8. The check of MLT-M is completed above.
4.12 Calibration
4.12.1 Aging
Perform aging of the unit while checking performance of X-ray
exposures. Make exposures in step 1 to step 9 (125 kV) according to
"Table 4-2 Aging steps".
If anything is wrong with the unit during the aging, go back 2-steps
and repeat making exposures.
To measure the tube voltage waveform, check CP9 TKV (tube voltage feedback
signal 1 V/20 kV) of the XCONT-2002 board using the oscilloscope.
