Shure Incorporated
28/101
•
1.
2.
3.
4.
5.

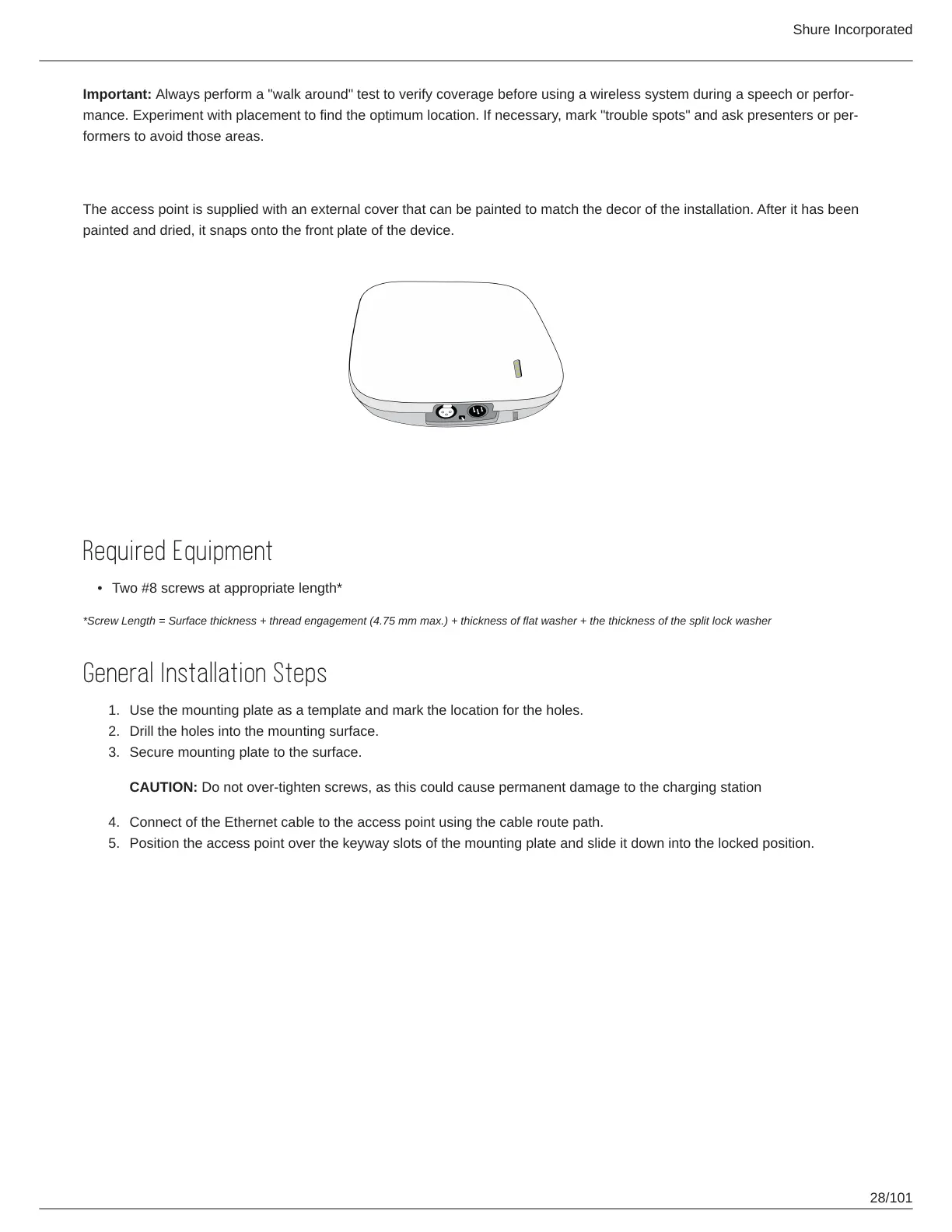

Important: Always perform a "walk around" test to verify coverage before using a wireless system during a speech or perfor
mance. Experiment with placement to find the optimum location. If necessary, mark "trouble spots" and ask presenters or per
formers to avoid those areas.
External Cover for Painting
The access point is supplied with an external cover that can be painted to match the decor of the installation. After it has been
painted and dried, it snaps onto the front plate of the device.
Securing to a Wall or Ceiling
Required Equipment
Two #8 screws at appropriate length*
*Screw Length = Surface thickness + thread engagement (4.75 mm max.) + thickness of flat washer + the thickness of the split lock washer
General Installation Steps
Use the mounting plate as a template and mark the location for the holes.
Drill the holes into the mounting surface.
Secure mounting plate to the surface.
CAUTION: Do not over-tighten screws, as this could cause permanent damage to the charging station
Connect of the Ethernet cable to the access point using the cable route path.
Position the access point over the keyway slots of the mounting plate and slide it down into the locked position.
